Removal and Installation

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Service and Repair

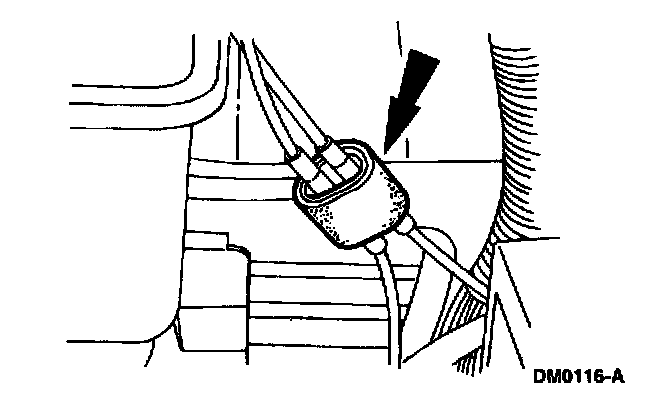

3. Disconnect the vacuum hose connector.

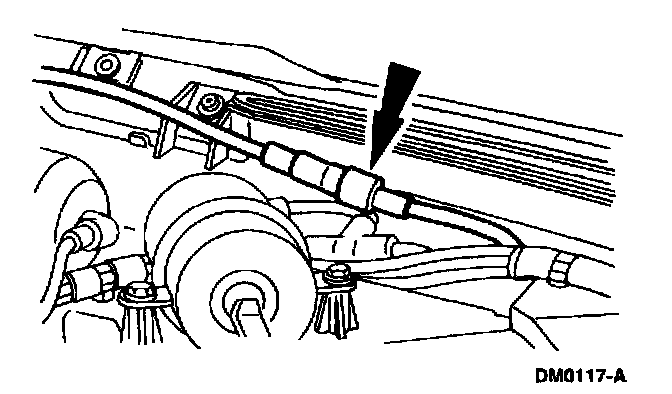

4. Disconnect the vacuum hose.







5. Remove the heater air plenum chamber.
1 Remove the screws.
2 Remove the heater air plenum chamber.

INSTALLATION
1. To install, reverse the removal procedure.
