Auxiliary Climate Control

REMOVAL
1. Remove the air conditioning and heater assembly.

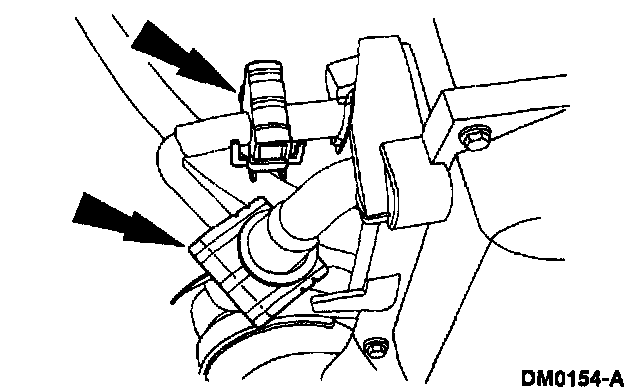

2. Disconnect the evaporator core spring lock couplings.

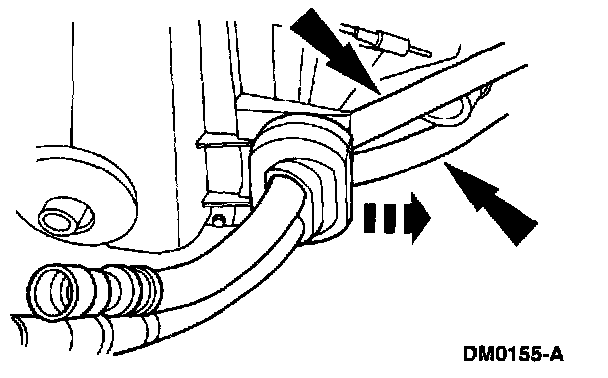

3. Position the heater water hoses out of the way.

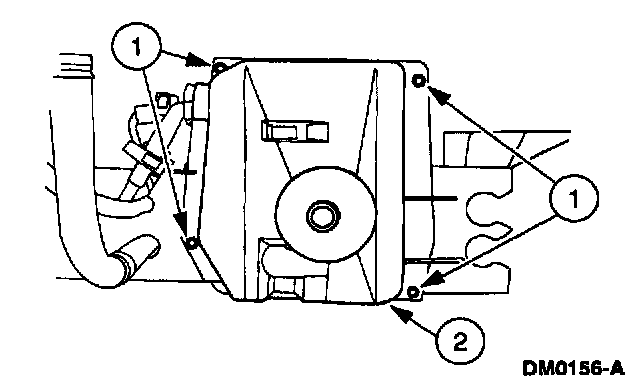

4. Remove the evaporator case cover.
1 Remove the screws.
2 Remove the evaporator case cover.

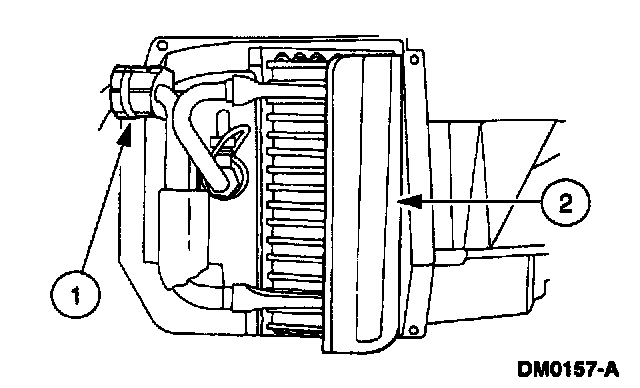

5. Remove the A/C evaporator core.
1 Remove the seal.
2 Remove the A/C evaporator core.

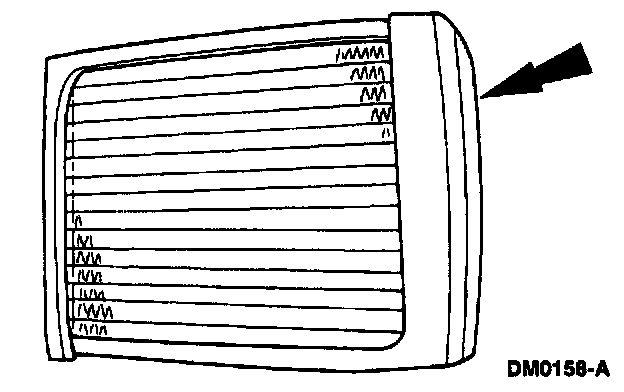

6. Remove the seal.

INSTALLATION
1. To install, reverse the removal procedure.
