Main Climate Control

REMOVAL
1. Remove the battery.







2. Remove the battery tray.
1 Remove the screws.
2 Remove the battery tray.

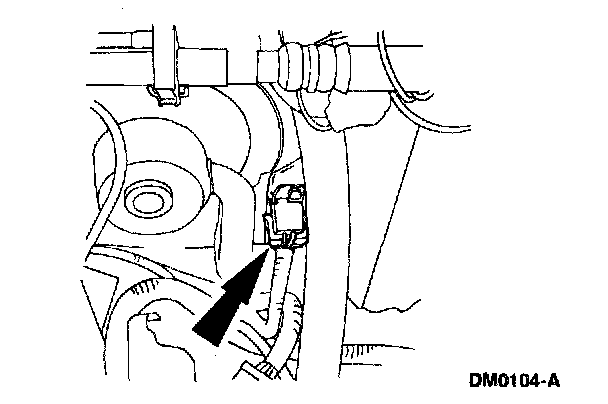

3. Disconnect the heater blower motor switch resistor connector.

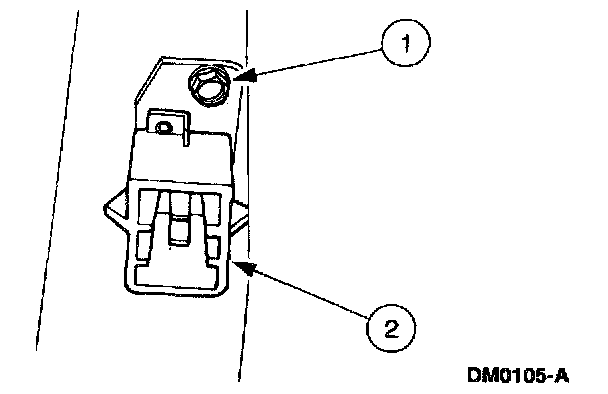

4. Remove the heater blower motor switch resistor.
1 Remove the two screws.
2 Remove the heater blower motor switch resistor.

INSTALLATION







1. Follow the removal procedure in reverse order.
