Center Register

REMOVAL
1. Remove the cluster finish panel.
2. Remove the center finish panel.

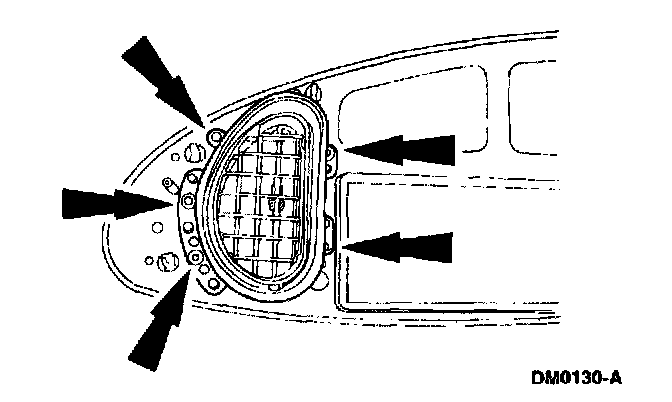

3. Drill out the heat stakes on the A/C register and remove the A/C register.

CAUTION: Use care not to damage the center finish panel.







4. Remove the louver assembly.
^ Use a screwdriver to pry out the louver assembly.

INSTALLATION







1. Install the louver assembly.







2. Install the A/C register.

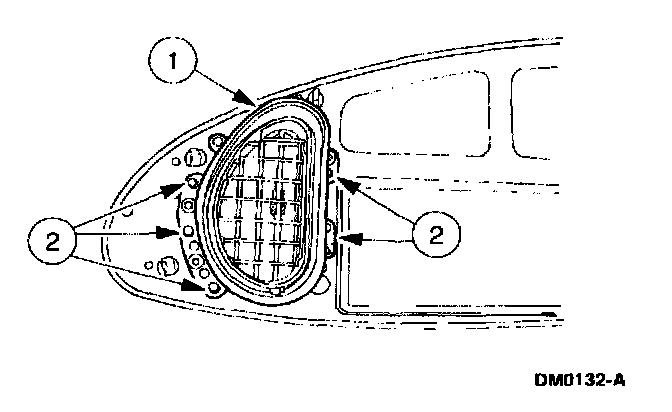

1 Install the A/C register over the service heat stakes.
2 Use a soldering iron to melt the heat stakes.

CAUTION: Use care when melting the heat stakes not to melt, warp, or damage the center finish panel.

3. Install the center finish panel.
4. Install the instrument cluster finish panel.
