Windshield Defroster Nozzle

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Service and Repair

3. Remove the plenum chamber.

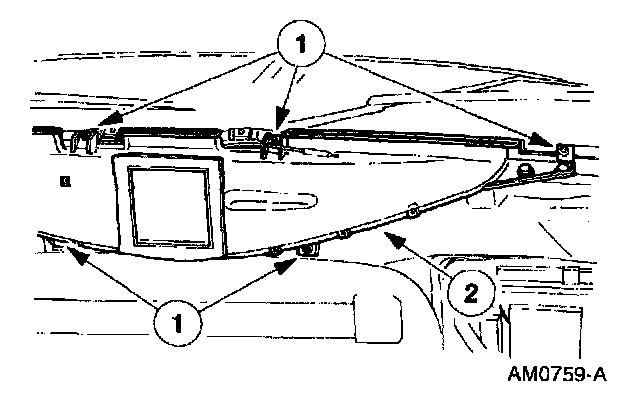

4. Remove the windshield defroster nozzle.
1 Remove the six pushpins.
2 Remove the windshield defroster hose nozzle.

INSTALLATION
1. To install, reverse the removal procedure.
