Cylinder Block

Cylinder Block

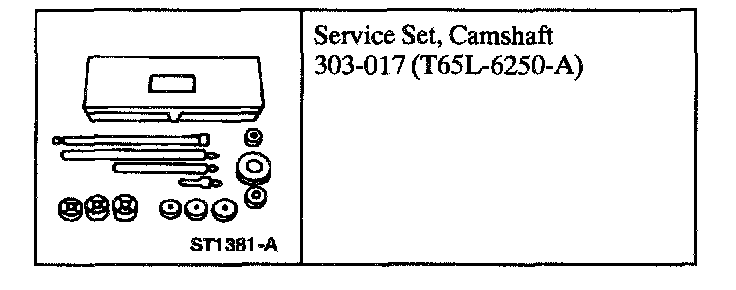

Special Tool(s)

Disassembly





1. Use the Camshaft Service Set to remove the camshaft bearings.





2. Use the Camshaft Service Set to remove the engine dynamic balance shaft bearings.
3. Remove the block heater, if so equipped.





4. NOTE: For cleaning purposes, plugs should be removed.

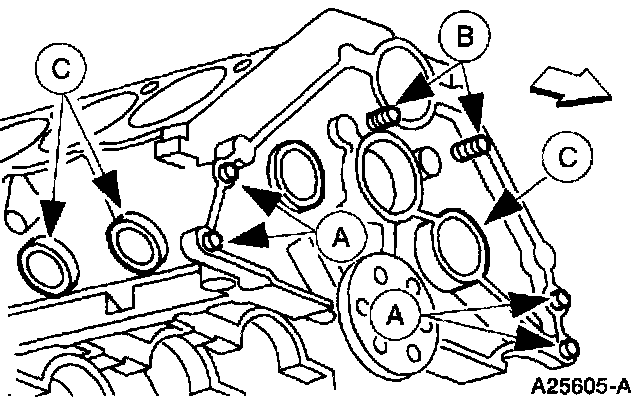

If necessary, remove plugs and dowels:
- cylinder block dowels (A)
- oil gallery plugs (B)
- water jacket plugs (c)

Assembly

CAUTION: Moving components must be lubricated with clean engine oil before assembly.

CAUTION: Components with oil holes must be correctly aligned with oil feed holes.

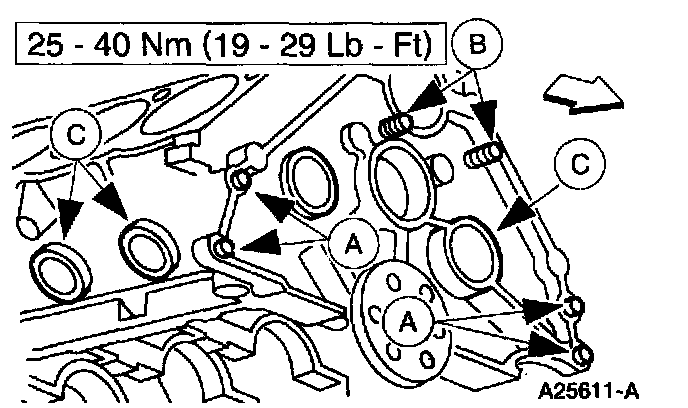

1. If necessary, install plugs and dowels:
- cylinder block dowels (A)
- oil gallery plugs (B)
- water jacket plugs (c)
2. Install the block heater, if equipped.





3. Use the Camshaft Bearing Set to install the engine dynamic balance shaft bearings.





4. Use the Camshaft Service Set to install the camshaft bearings.

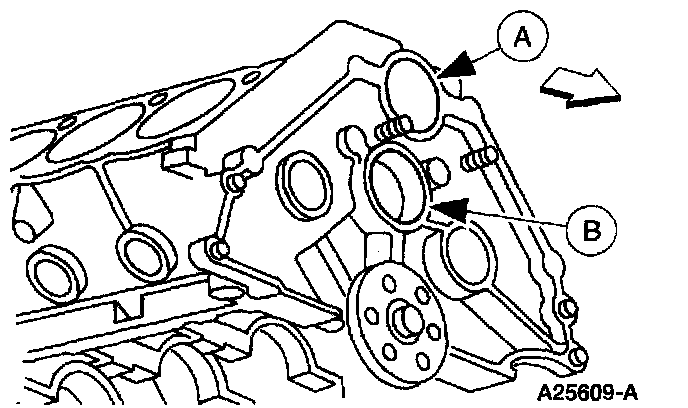

5. Install the (A) engine dynamic balance shaft bearing cover and the (B) camshaft bearing cover.
