Oil Pump: Service and Repair

Oil Pump

Removal
1. Raise and support the vehicle.

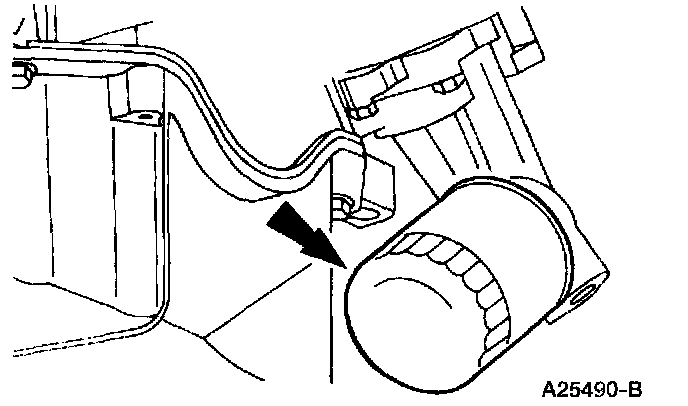

2. Remove the oil bypass filter.

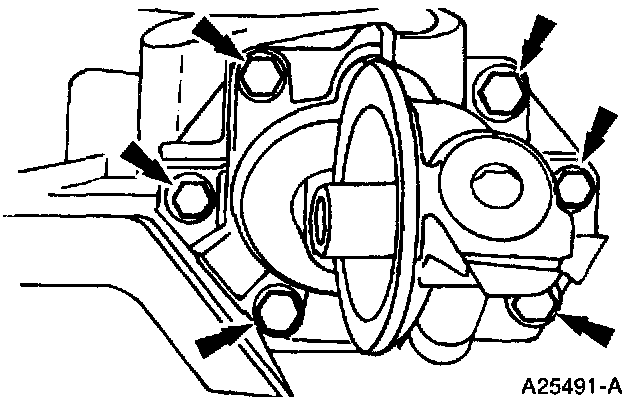

3. Remove the bolts.

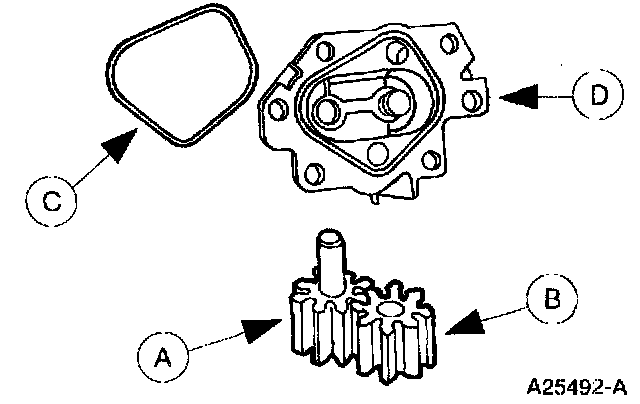

4. Remove the (A) oil pump drive gear, (B) oil pump driven gear, (C) oil pump O-ring seal and (D) oil pump and filter body. Discard the (C) oil pump O-ring seal.

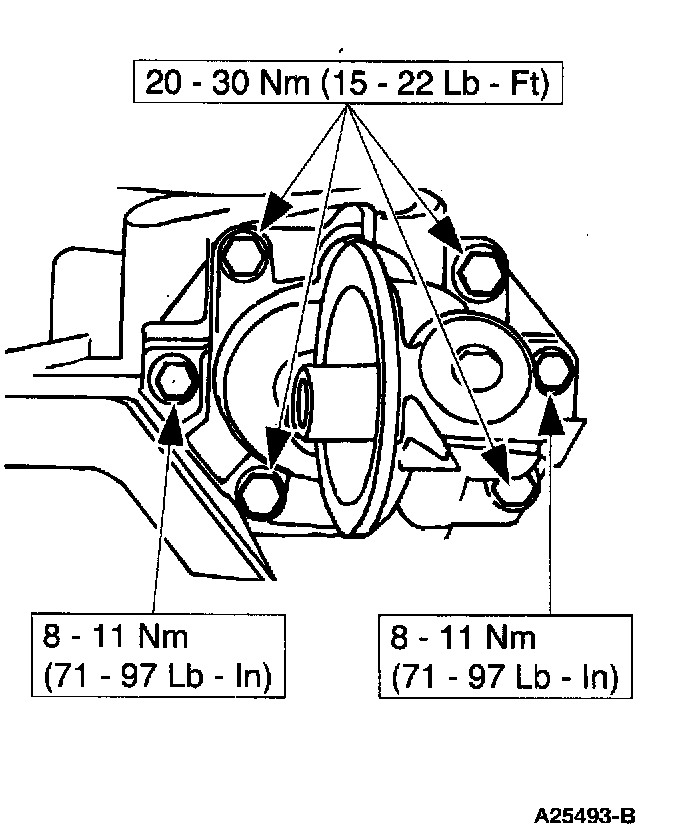

Installation








1. NOTE: Lubricate parts with clean engine oil before assembly.

Follow the removal procedure in reverse order.
