LH

Valve Cover LH

Removal
1. Disconnect the battery.
2. Remove the air cleaner assembly and the air cleaner outlet tube.

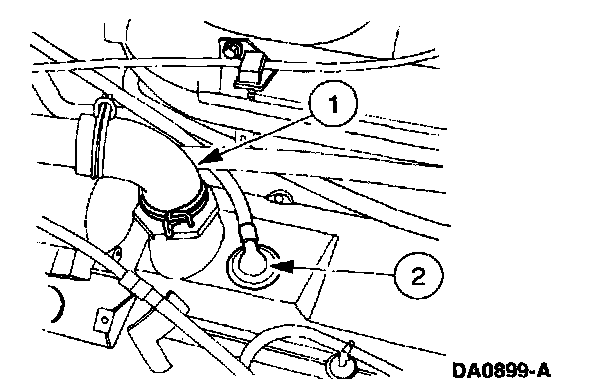

3. Disconnect the following:
1 the oil filler tube
2 the Positive Crankcase Ventilation (PCV) fresh air tube

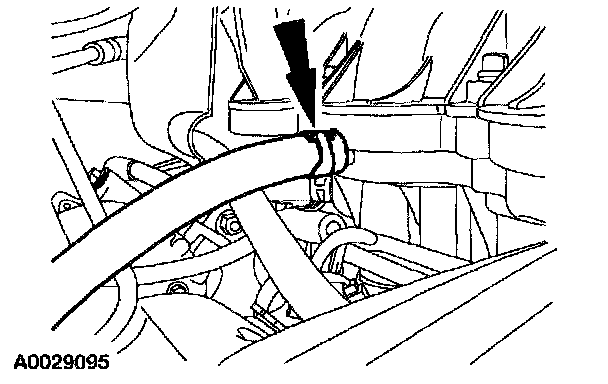

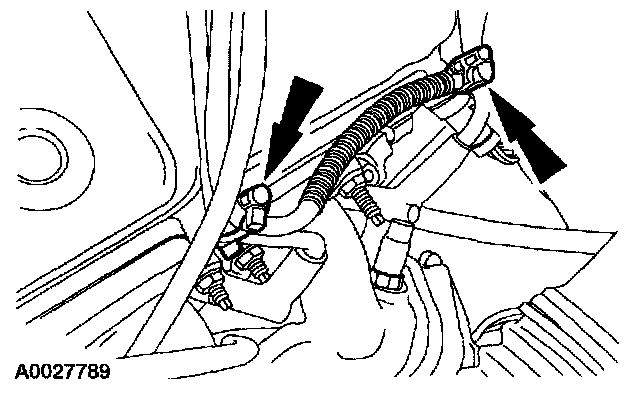

4. Disconnect the brake booster vacuum hose.
5. Remove the engine cover.

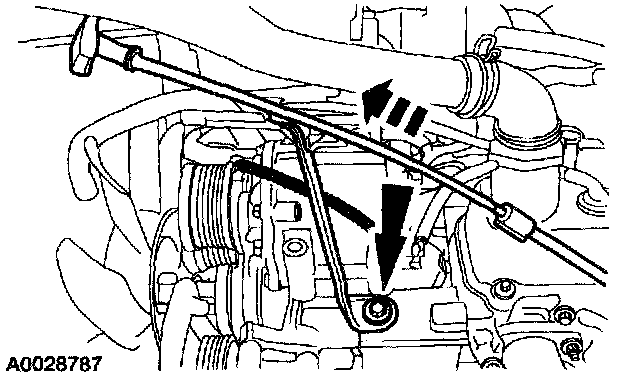

6. Remove the oil level indicator tube extension and oil level indicator.

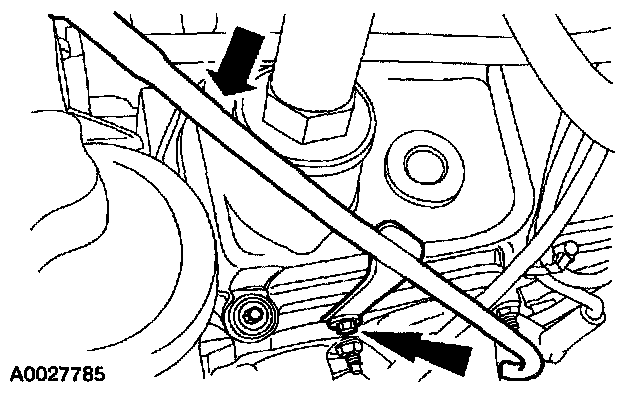

7. Remove the oil level indicator tube and bracket.

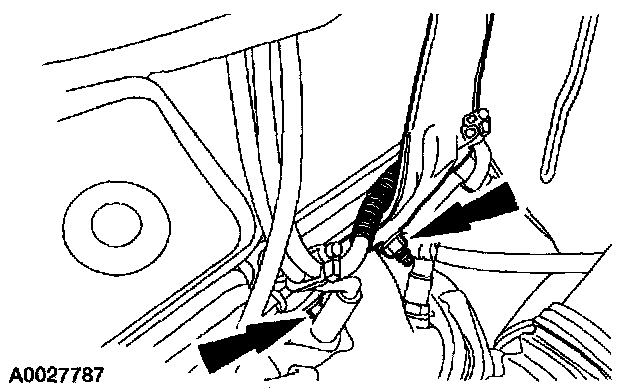

8. Remove the engine lifting eye.





9. Disconnect the spark plug separators from the valve covers.

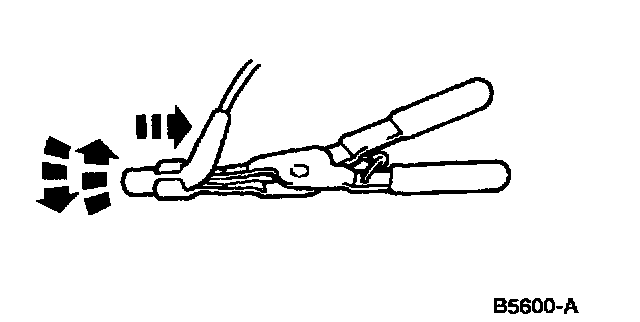

10. Disconnect the ignition wires from the spark plugs and position out of the way.

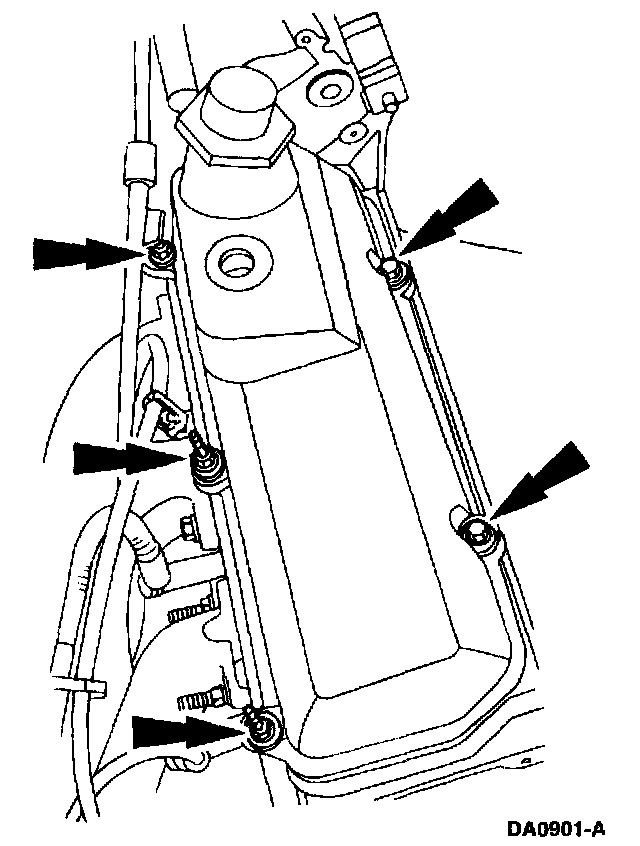

11. Remove the valve cover and discard the gasket.
12. Clean the mating surface.

Installation

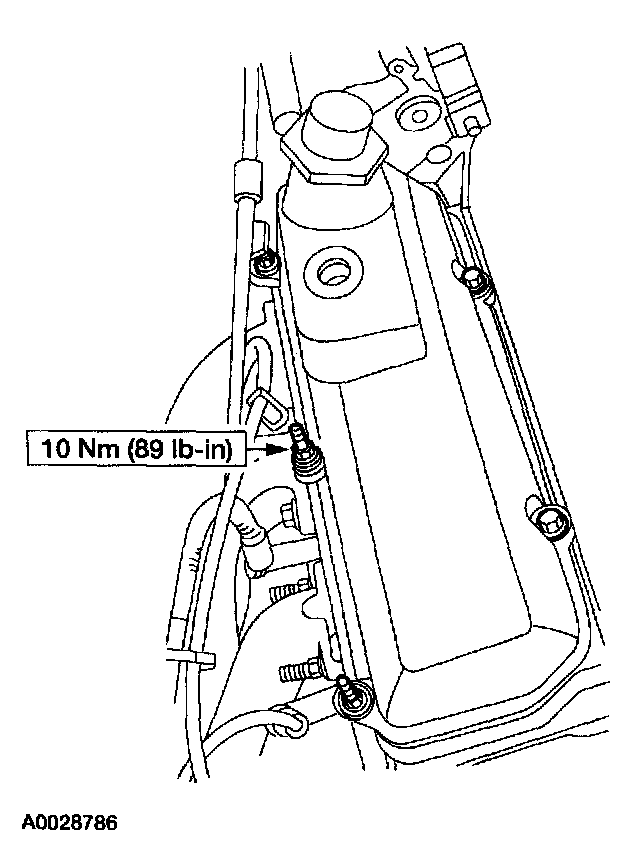

1. Install the valve cover and new gasket.





2. Connect the ignition wires to the spark plugs and the separators.

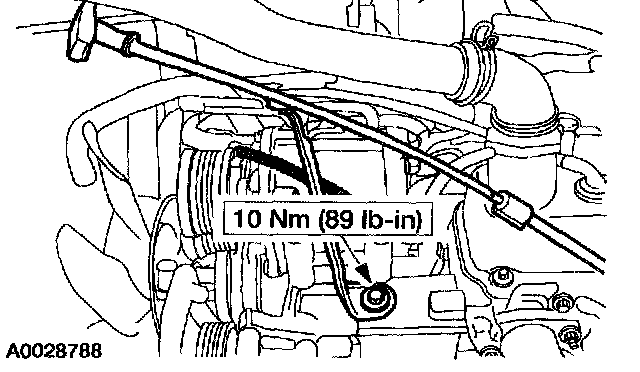

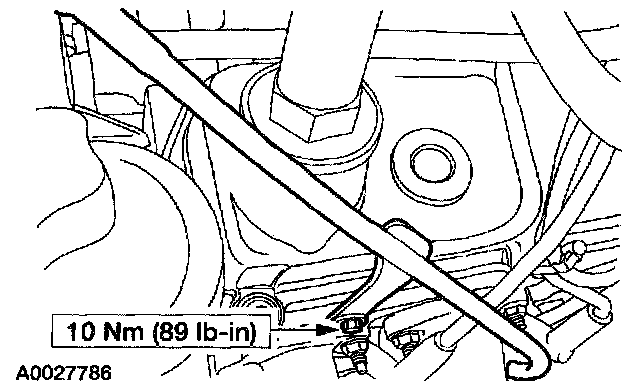

3. Install the oil level indicator tube.
- Use a new O-ring seal.





4. Install the oil level indicator tube extension and oil level indicator.

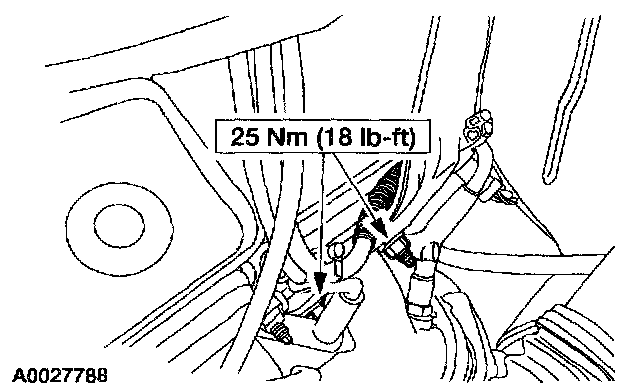

5. Install the engine lifting eye.





6. Connect the following: 1 the oil filler tube 2 the PCV fresh air tube





7. Connect the brake booster vacuum hose.
8. Install the air cleaner assembly and air cleaner outlet tube.
9. Connect the battery.
10. Install the engine cover.
