Rear Drive Axle/Differential - Dana 60 and 70
>>

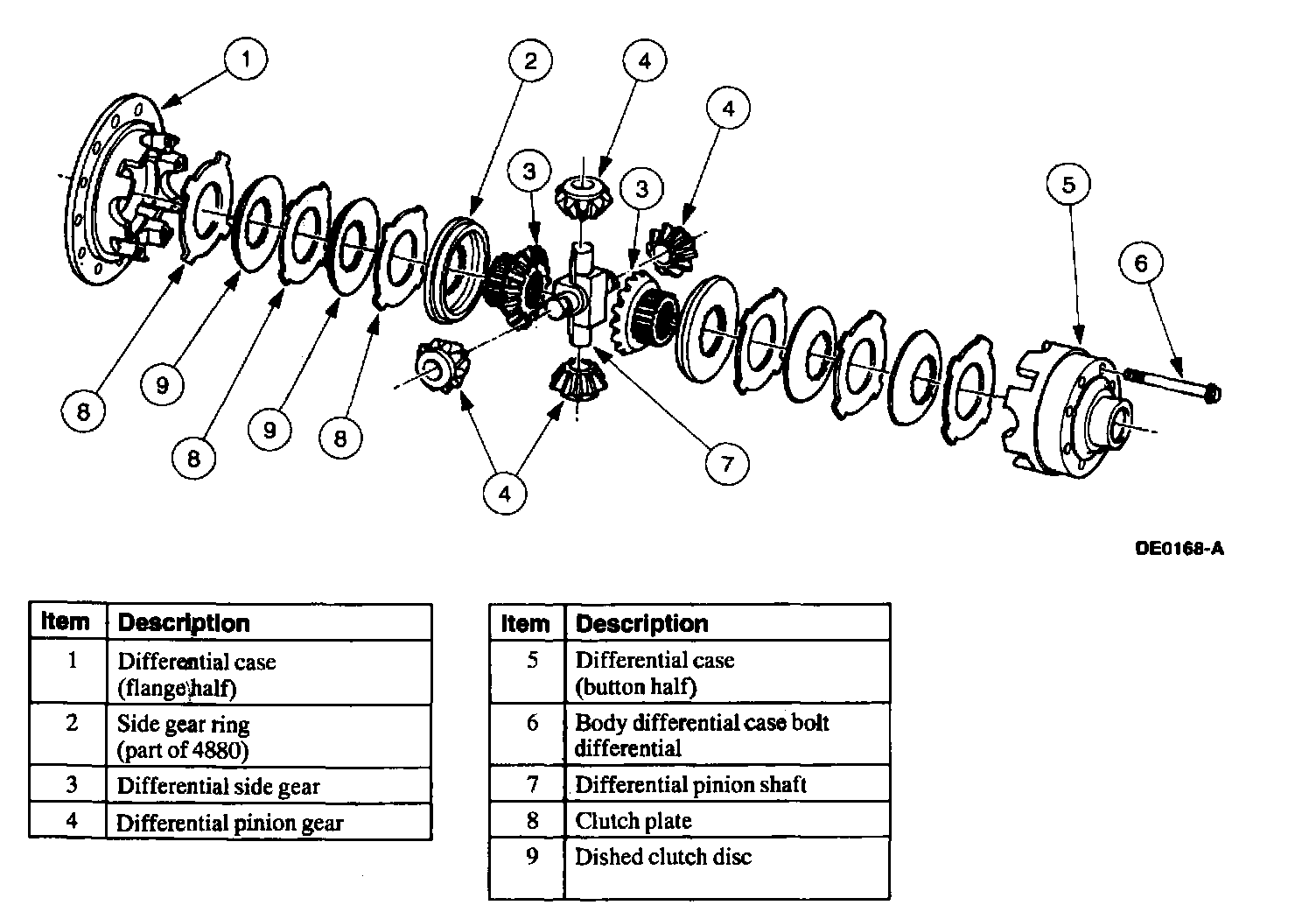

Power-LOK Differential - Model 70, Exploded View
Power-LOK Differential - Model 70, Exploded View
