Brake Shoe: Service and Repair

Brake Shoes

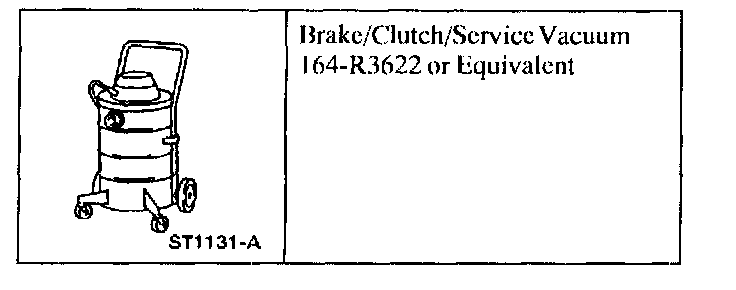

Special Tools:

Special Tool(s)

Removal
1. Remove the brake drum.








2. Inspect the rear brake assembly for the following:
^ the rear wheel cylinder for excessive leakage that can contaminate brake system parts, and rebuild as necessary.
^ the rear brake shoes and linings for contamination, and replace as necessary.

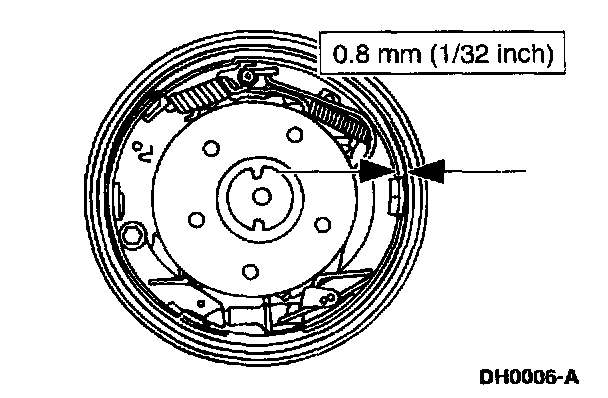

^ the rear brake shoes and linings for minimum thickness, above the backing plate or rivets, and replace as necessary.
^ the springs for heat discoloration, and replace as necessary.
^ the adjusting lever contact with the brake adjuster screw.

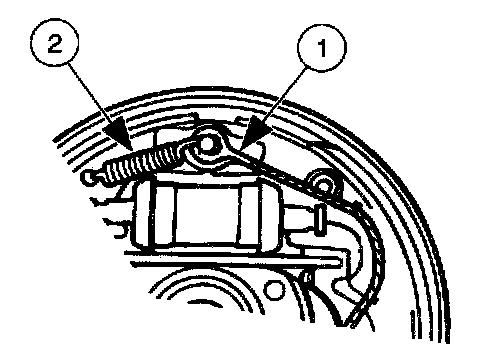

3. NOTE: To aid installation, note the locations of the short and long brake shoe retracting springs.

Remove the brake shoe retracting springs.
1 Remove the long brake shoe retracting spring.
2 Remove the short brake shoe retracting spring.

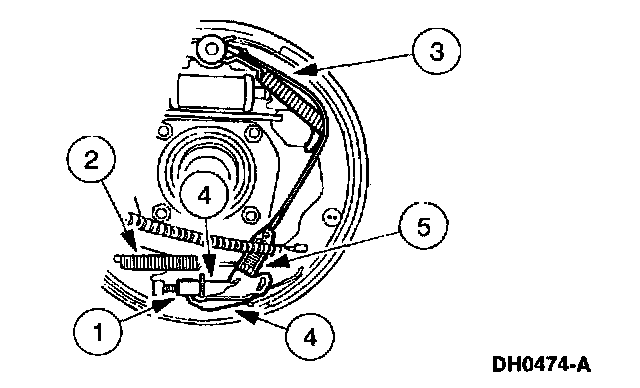

4. Remove the adjusting screw assembly.
1 Disconnect the brake shoe adjusting lever cable from the brake shoe adjusting lever.
2 Remove the brake shoe adjusting lever cable.
3 Remove the cable guide.
4 Remove the adjusting lever return spring and the brake shoe adjusting lever.
5 Remove the brake shoe adjusting screw spring.
6 Remove the brake adjuster screw assembly.

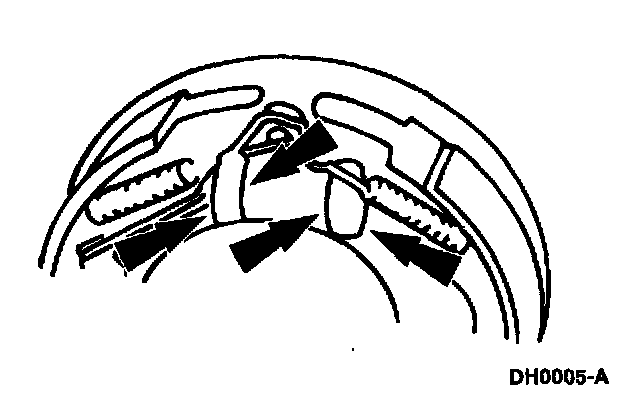

5. NOTE: The parking brake link spring and the brake parking spring retainer will come off with the parking brake strut.

Remove the brake shoe anchor pin guide plate, parking brake strut and the parking brake lever pin retainer.

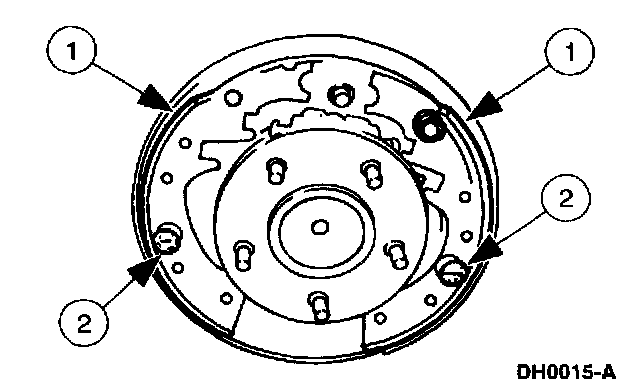

6. Remove the rear brake shoes and linings.
1 Remove the brake shoe hold-down springs.
2 Remove the rear brake shoes and linings.
3 Remove the brake shoe hold-down spring pins.

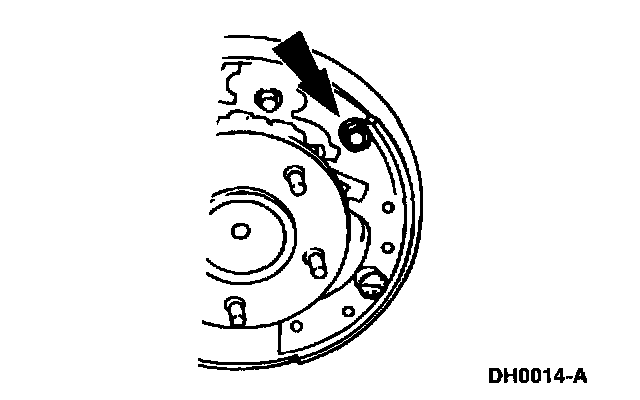

7. Pull back the parking brake cable spring and disconnect the parking brake lever.

Installation





1. Compress the parking brake cable spring and attach the parking brake lever.

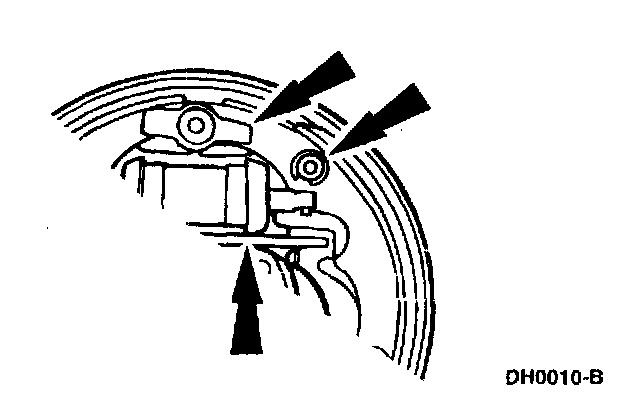

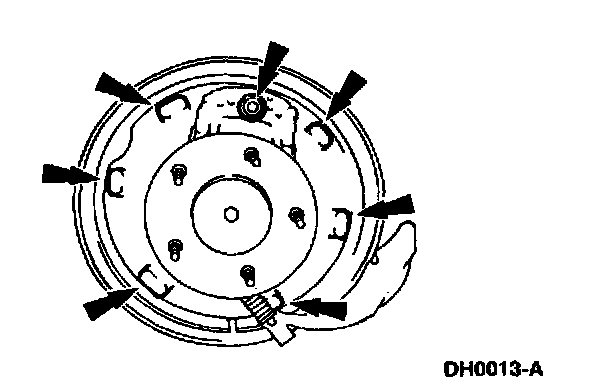

2. Clean and lubricate the brake backing plate.
^ Use Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A (Motorcraft WA-10) or an equivalent silicone compound meeting Ford specification ESE-MlC171-A.





3. Attach the parking brake lever to the rear brake shoe and lining and secure the parking brake lever pin retainer.

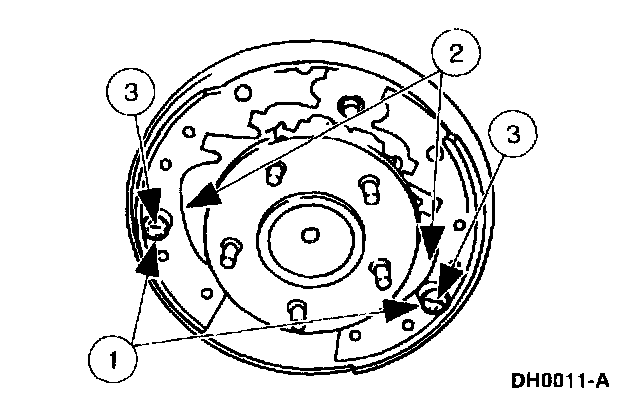

4. Install the rear brake shoes and linings.
1 Position the rear brake shoes and linings.
2 Install the brake shoe hold-down spring pins and the brake shoe hold-down springs.

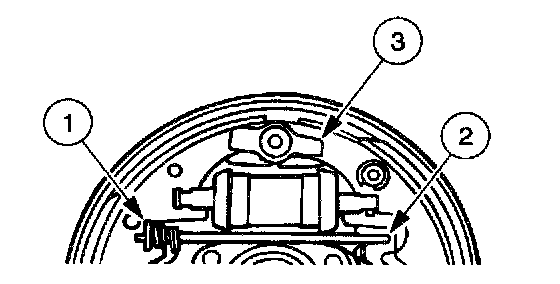

5. Install the parking brake strut.
1 Install the parking brake link spring and the parking brake spring retainer on the parking brake strut.
2 Install the parking brake strut.
3 Install the brake shoe anchor pin guide plate.

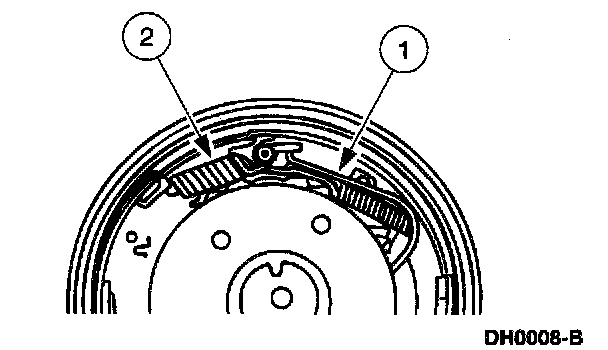

6. Install the short brake shoe retracting spring.
1 Place the brake shoe adjusting lever cable over the anchor pin, with crimped side in.
2 Install the short brake shoe retracting spring.





7. NOTE: Make sure the brake shoe adjusting lever cable is positioned in the cable guide groove.

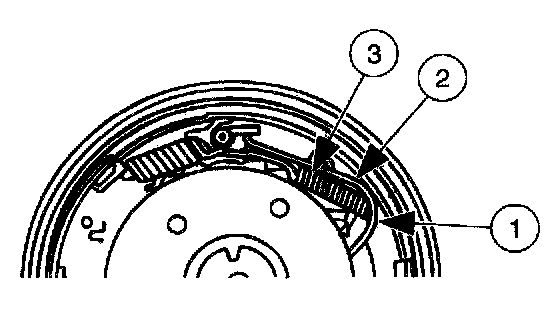

Install the long brake shoe retracting spring.
1 Install the cable guide.
2 Position the brake shoe adjusting lever cable in the cable guide groove.
3 Install the long brake shoe retracting spring.





8. NOTE: To prevent incorrect installation, the socket end of each brake adjuster screw is stamped R or L.

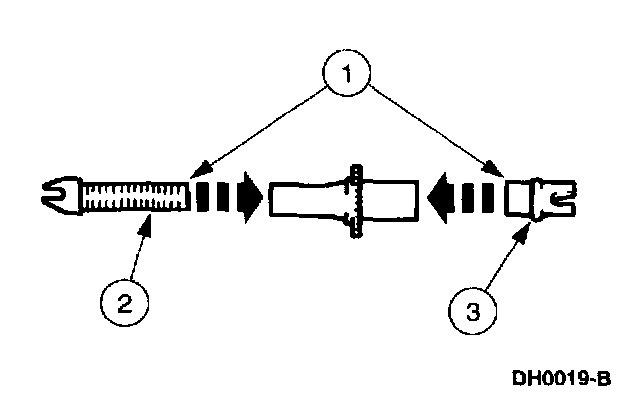

Assemble the brake adjuster screw assembly.
1 Apply Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A (Motorcraft WA-10) or an equivalent silicone compound meeting Ford specification ESE-MIC171-A.
2 Install the brake adjuster screw into the brake shoe adjusting screw nut to the end of the threads, and then loosen one-half turn.
3 Install the brake shoe adjusting screw socket on the brake shoe adjusting screw nut.

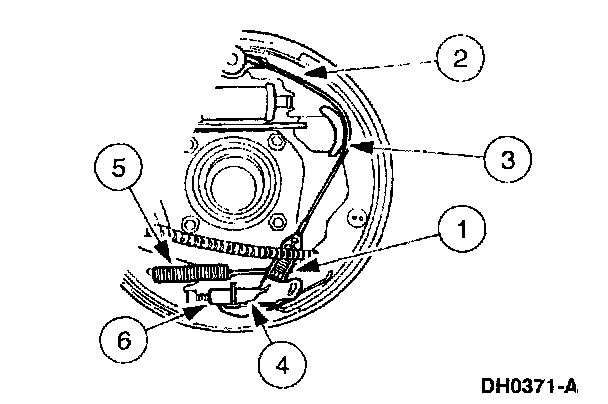

9. Install the brake adjuster screw assembly.
1 Position the brake adjuster screw assembly.
2 Install the brake shoe adjusting screw spring.
3 Position the brake shoe adjusting lever cable.
4 Position the adjusting lever return spring and the brake shoe adjusting lever.
5 Hook the brake shoe adjusting lever cable to the brake shoe adjusting lever.





10. Test the operation of the automatic self-adjuster.
1 Pull the brake shoe adjusting lever cable and check that the brake shoe adjusting lever rotates the brake shoe adjuster assembly.
2 Release the brake shoe adjusting lever cable and check that the brake shoe adjusting lever advances to the next notch on the brake shoe adjusting screw nut.
11. Adjust the brakes.
12. Install the brake drum.
