Ford Truck
>>
2002
>>
Econoline E150 1/2 Ton V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Locations
>>

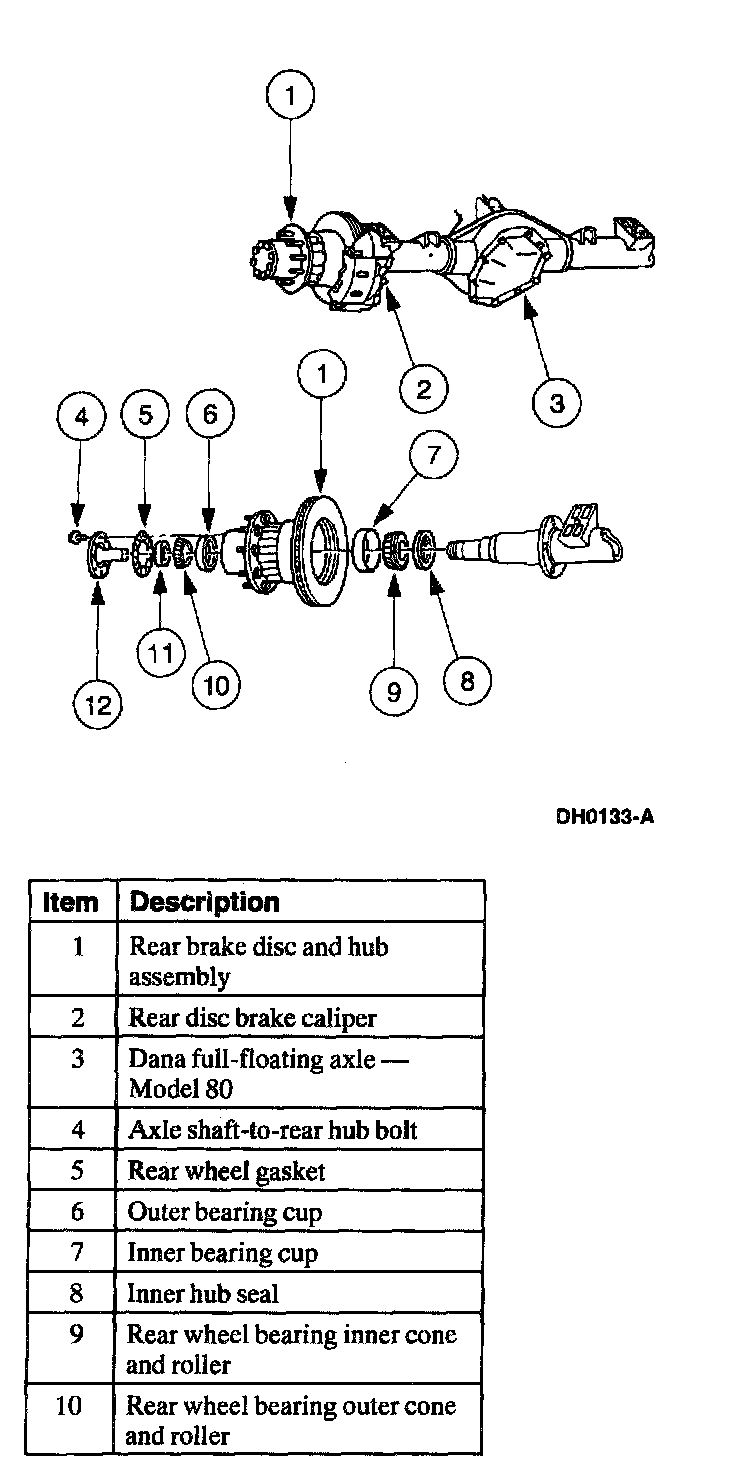

Rear Disc Brake System Components - Dual Rear Wheel
Rear Disc Brake System Components - Dual Rear Wheel
Rear Disc Brake System Components - Dual Rear Wheel
Part 1 of 2

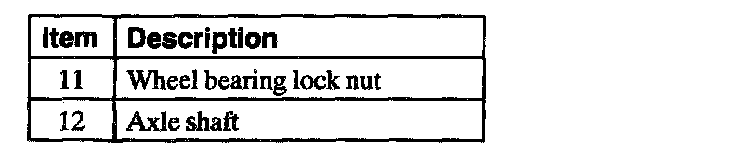

Part 2 of 2
