Ford Truck
>>
2002
>>
Econoline E150 1/2 Ton V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Switch
>>
Service and Repair
>>
Rear Door
Rear Door
REMOVAL
1.
Remove the door trim panel.
2.

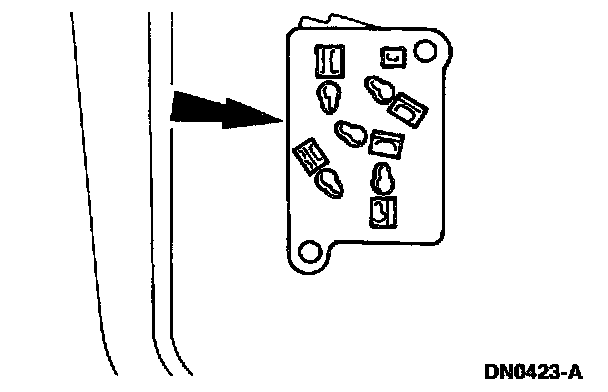

Disconnect the switch connector.
3.

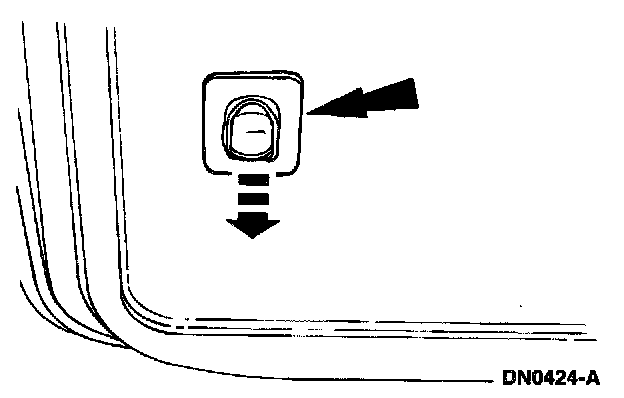

Carefully pry the switch from the door trim panel.
INSTALLATION
1.
Follow the removal procedure in reverse order.
