Dual Side Cargo Doors Trim Panel

REMOVAL

NOTE: The following procedure applies to both the front and the rear dual side cargo doors.

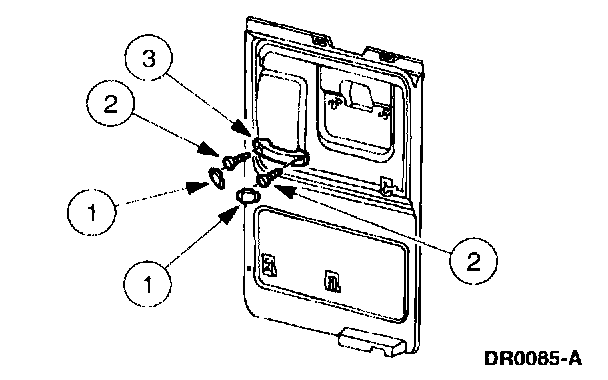

1. Remove the door pull handle.
1 Remove the door pull handle fastener covers.
2 Remove the screws.
3 Remove the door pull handle.







2. Remove the window latch.
1 Remove the screws.
2 Remove the window latch.

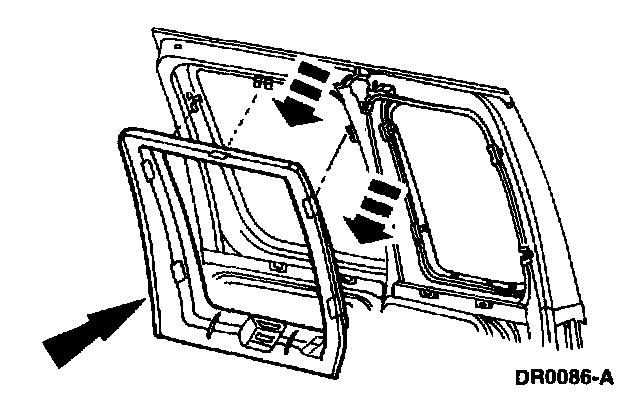

3. Pry the window garnish moulding away from the door and remove.
^ The rear side cargo door is shown; the front side cargo door is similar.

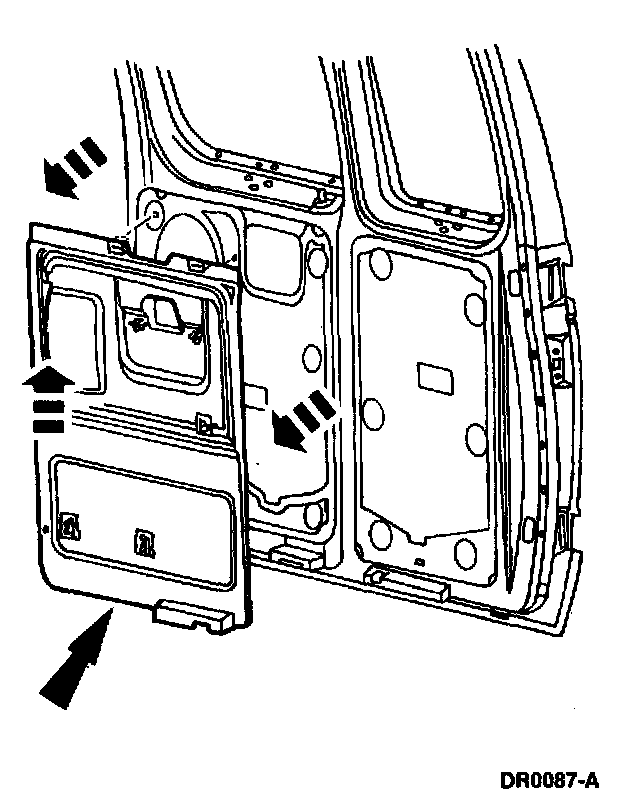

4. Remove the side cargo door trim panel.
^ Lift the door trim panel slightly upward and remove.
^ The rear side cargo door is shown; the front side cargo door is similar.

INSTALLATION
1. Follow the removal procedure in reverse order.
