Front Bumper: Service and Repair

BUMPER - FRONT

Removal

1. Raise and support the vehicle.







2. Remove the A/C condenser air deflector (19E667).
1. Remove the pushpin retainers.
2. Remove the A/C condenser air deflector from the frame.







3. NOTE: The aid of an assistant is required to remove the front bumper.

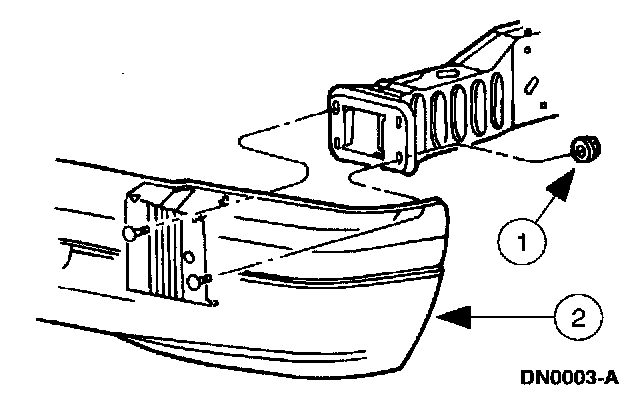

Remove the front bumper (17757).
1. Remove the retaining nuts.
2. Remove the front bumper.

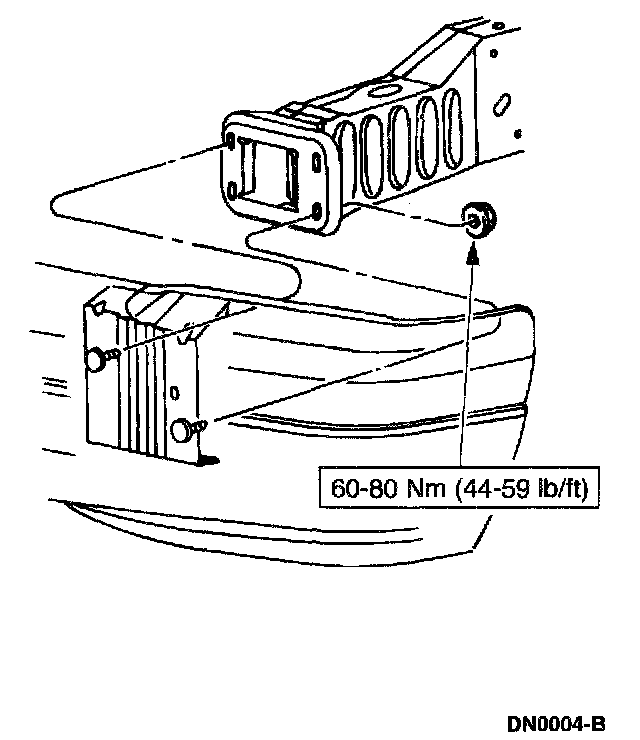

Installation







1. To install, reverse the removal procedure.
