Wiper Blade and Pivot Arm Adjustment-Front

1. Cycle and park the windshield wipers.

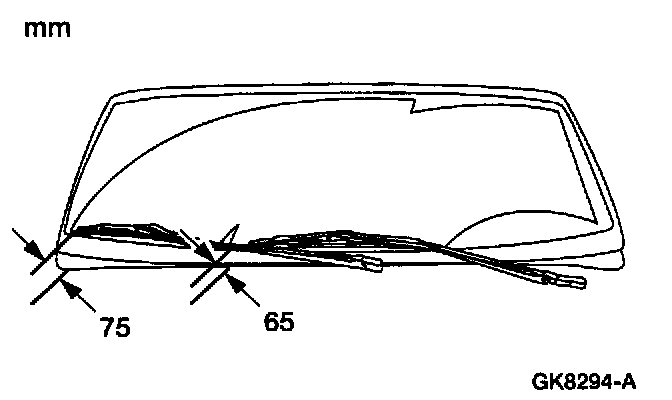

2. Verify that the RH and LH wiper blades are located at the specified position.







3. If not within specification, remove the pivot arms and reposition to the proper location.
