Wiper Blade and Pivot Arm Adjustment-Rear

1. Cycle and park the rear wiper motor.

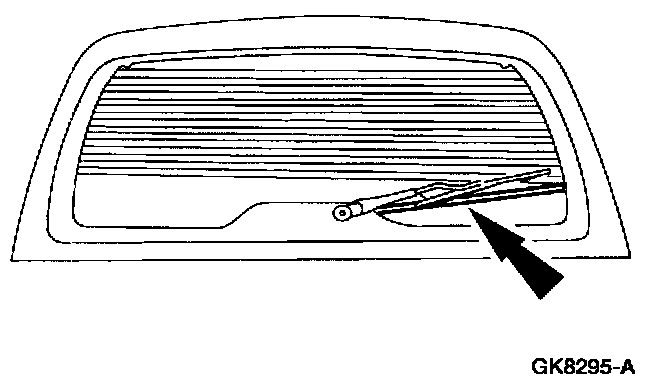

2. Verify that the rear wiper blade is located in the proper position.

NOTE: The rear wiper blade should be aligned with the two defroster guide lines located on the RH lower portion of the rear glass.

3. If not within specification, remove the pivot arm and reposition to the proper location.
