Turbine Shaft Speed (TSS) Sensor

Removal
1. If equipped, turn the air suspension switch off.

2. Note: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy.

Disconnect the battery ground cable.

3. Raise and support the vehicle.
4. Remove LH front wheel and tire.

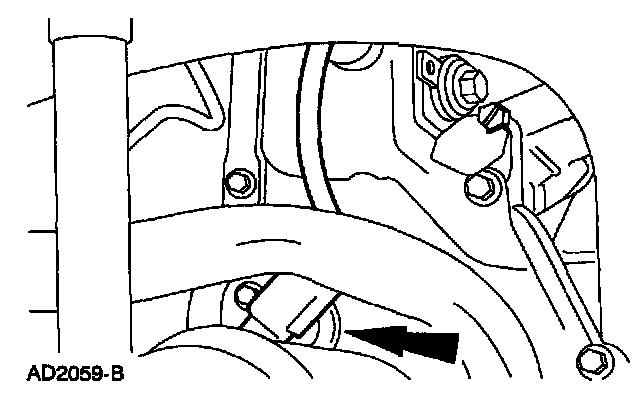

5. Disconnect the connector.

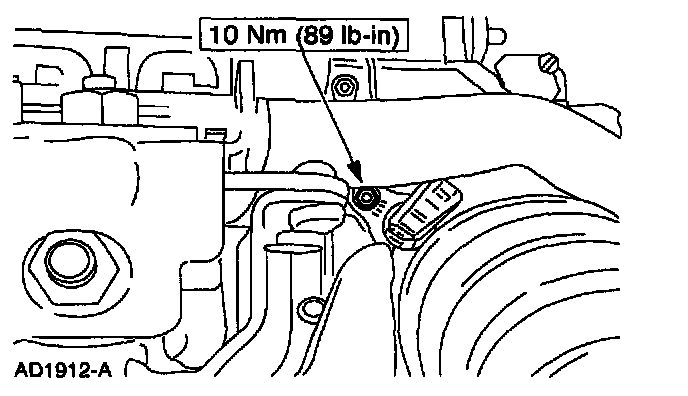

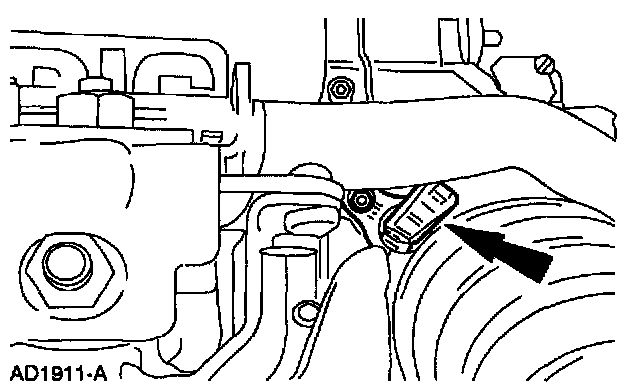

6. Remove the sensor.

Installation





1. Note: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy.

Follow the removal procedure in reverse order.
