Trouble Code to Pinpoint Test Charts

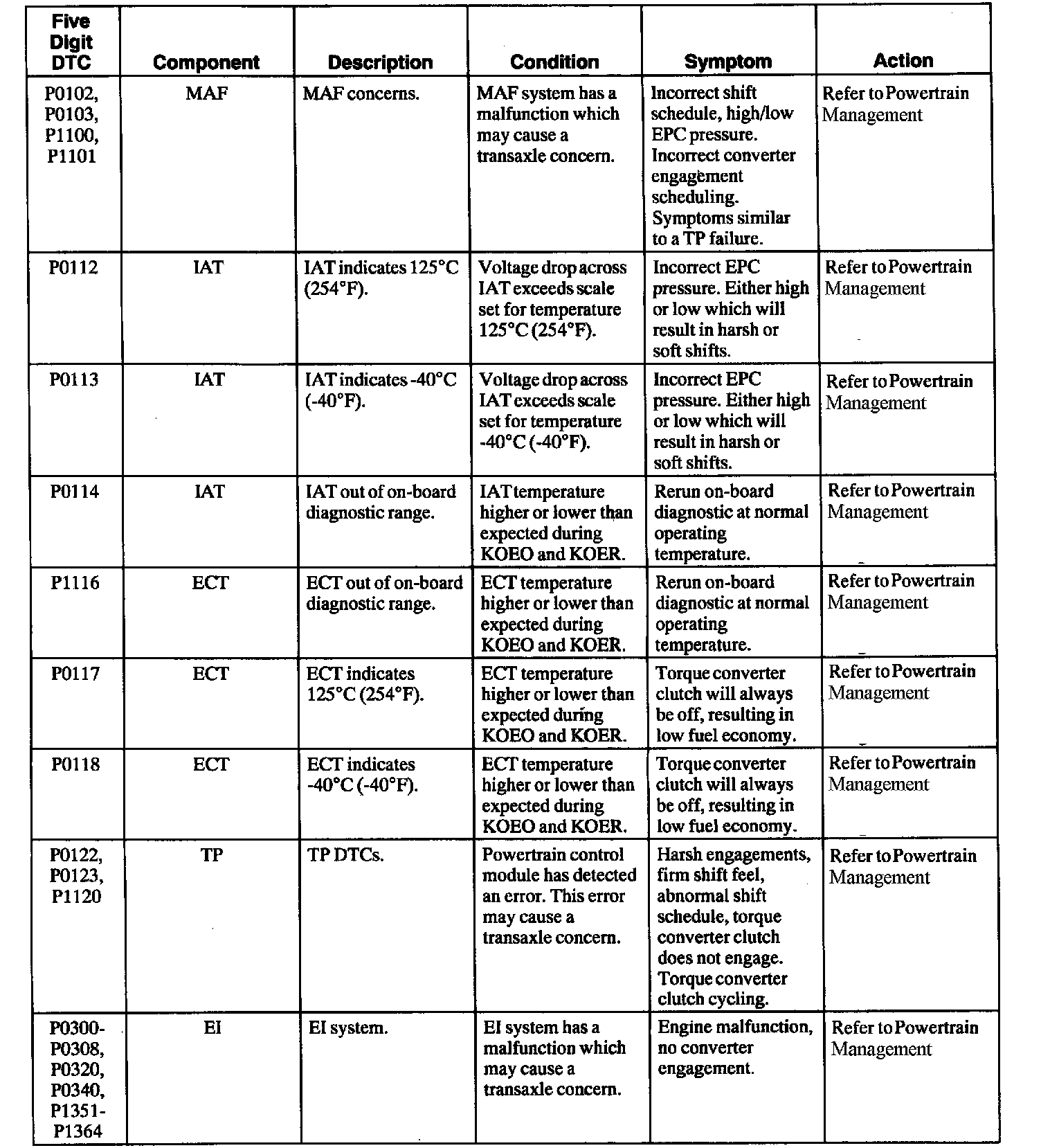

P0102-P1364:

Part 1 of 8

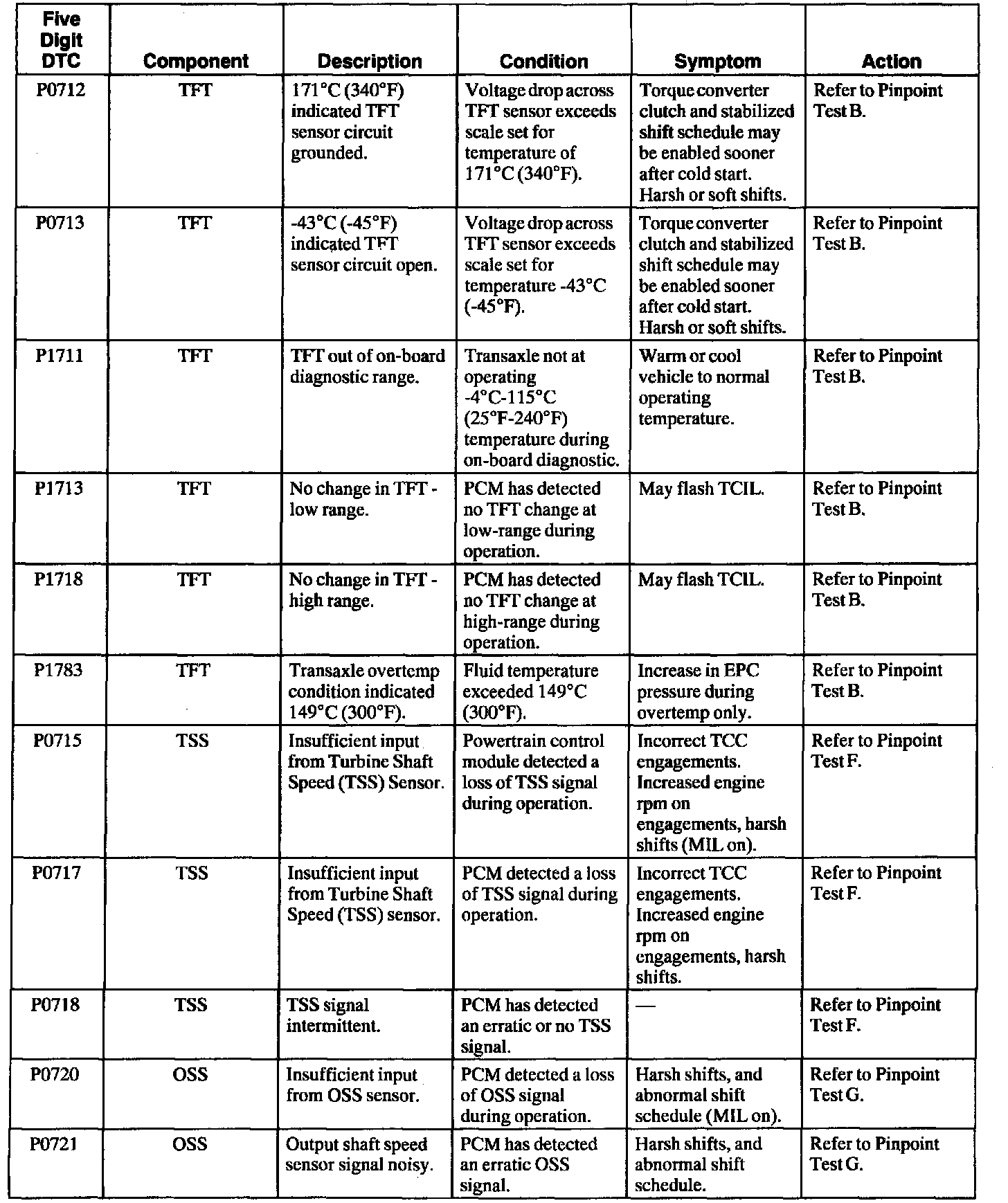

P0712-P1783:

Part 2 of 8

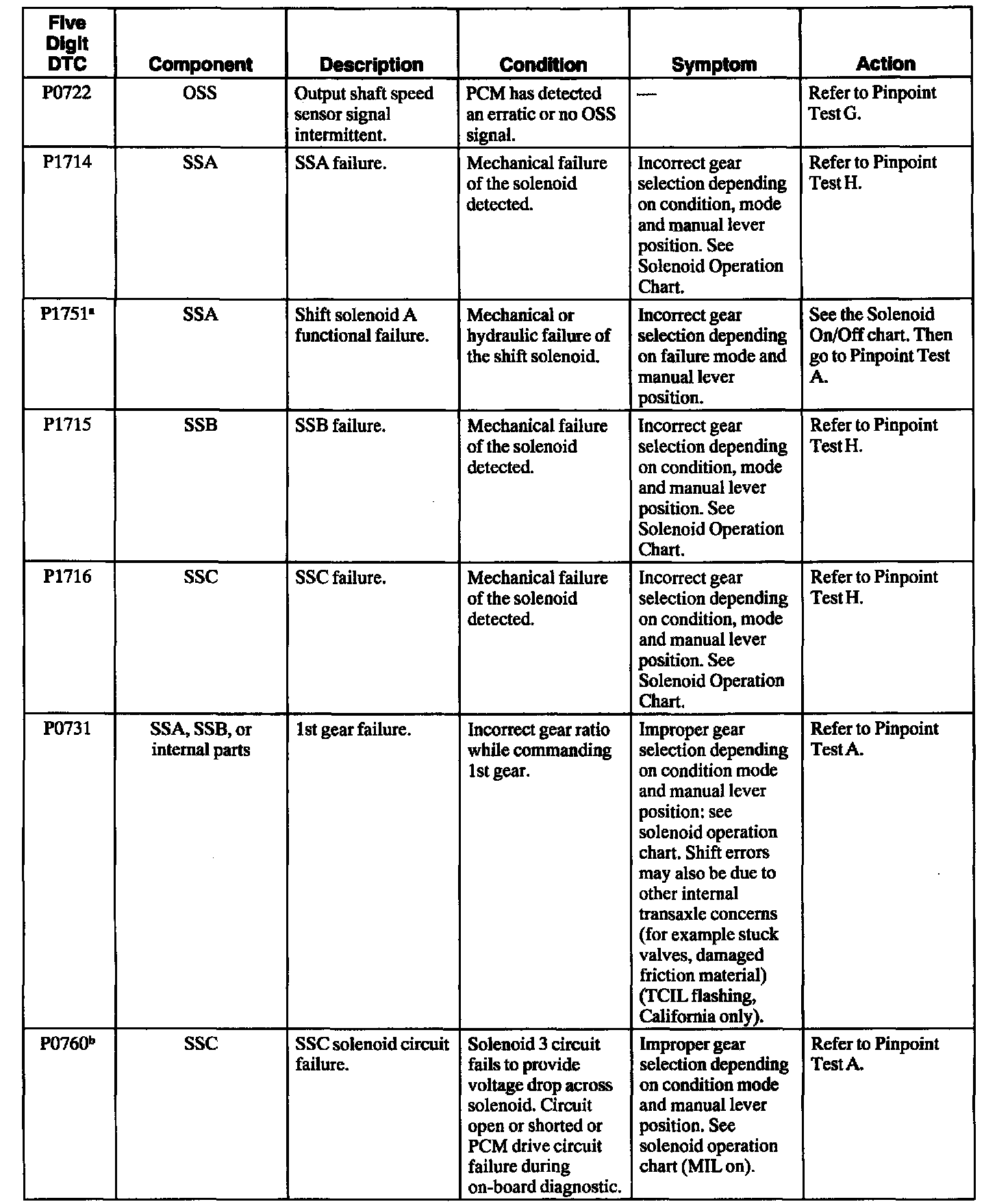

P0722-P1760:

Part 3 of 8

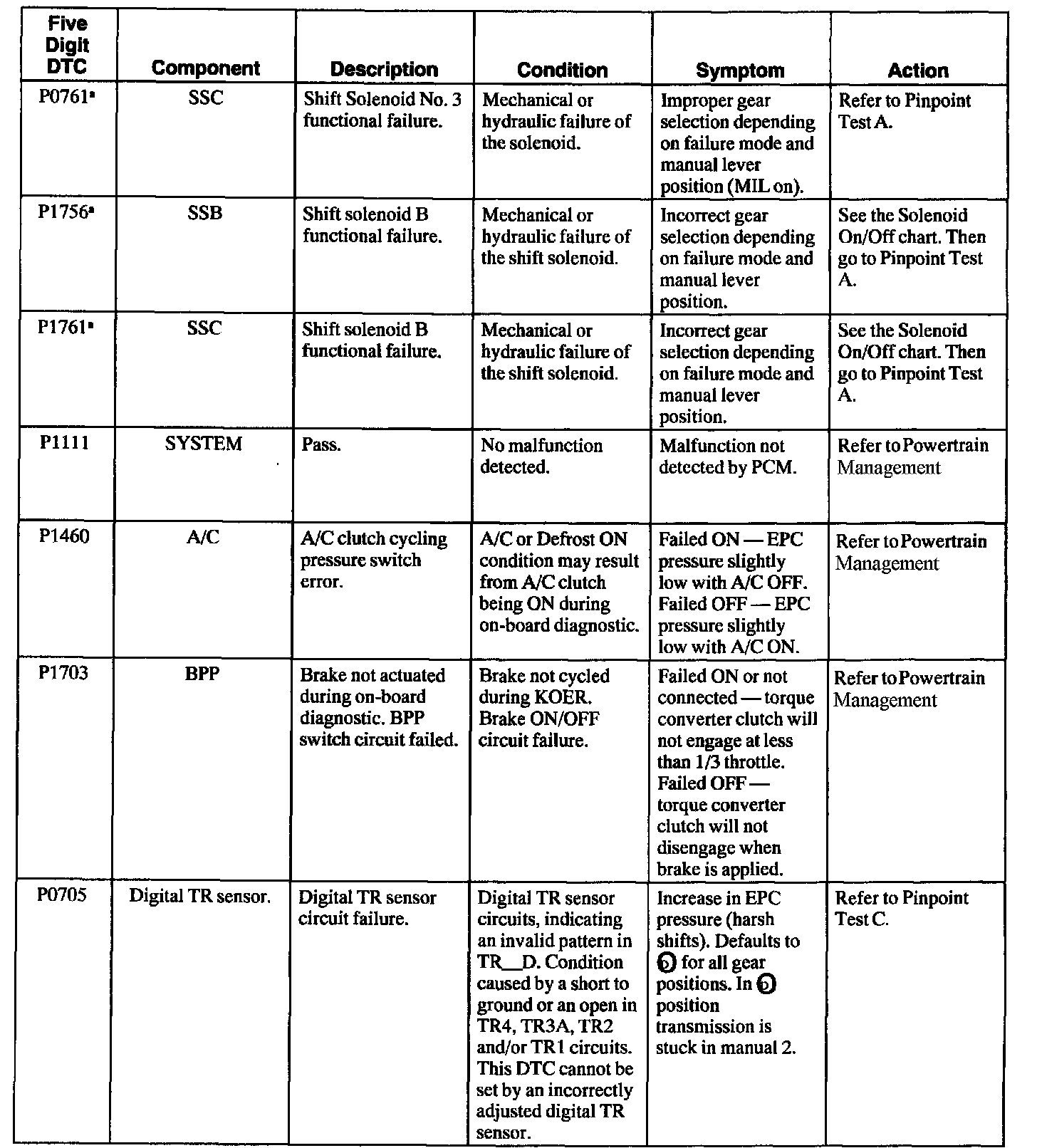

P0705-P1756:

Part 4 of 8

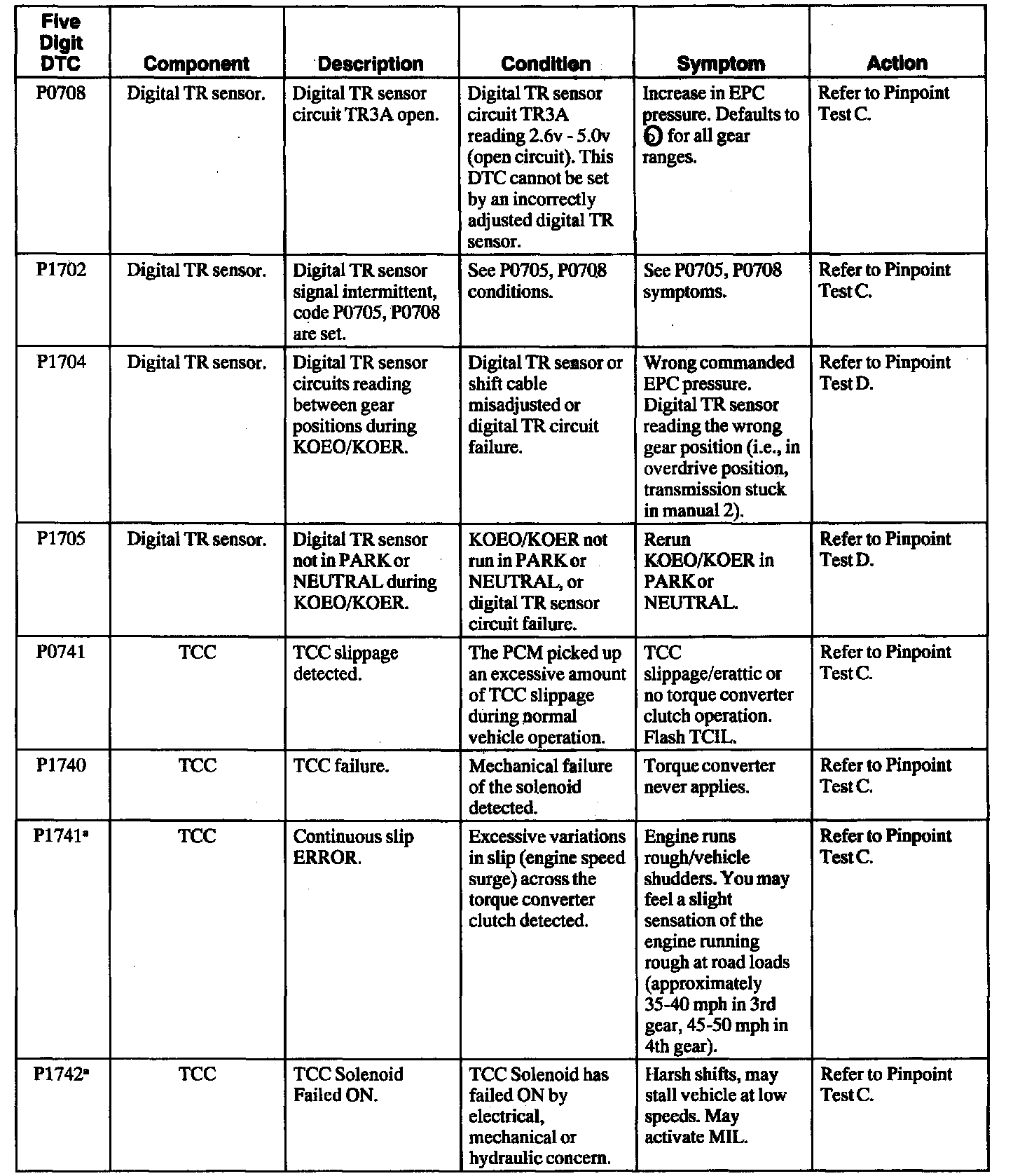

P0708-P1742:

Part 5 of 8

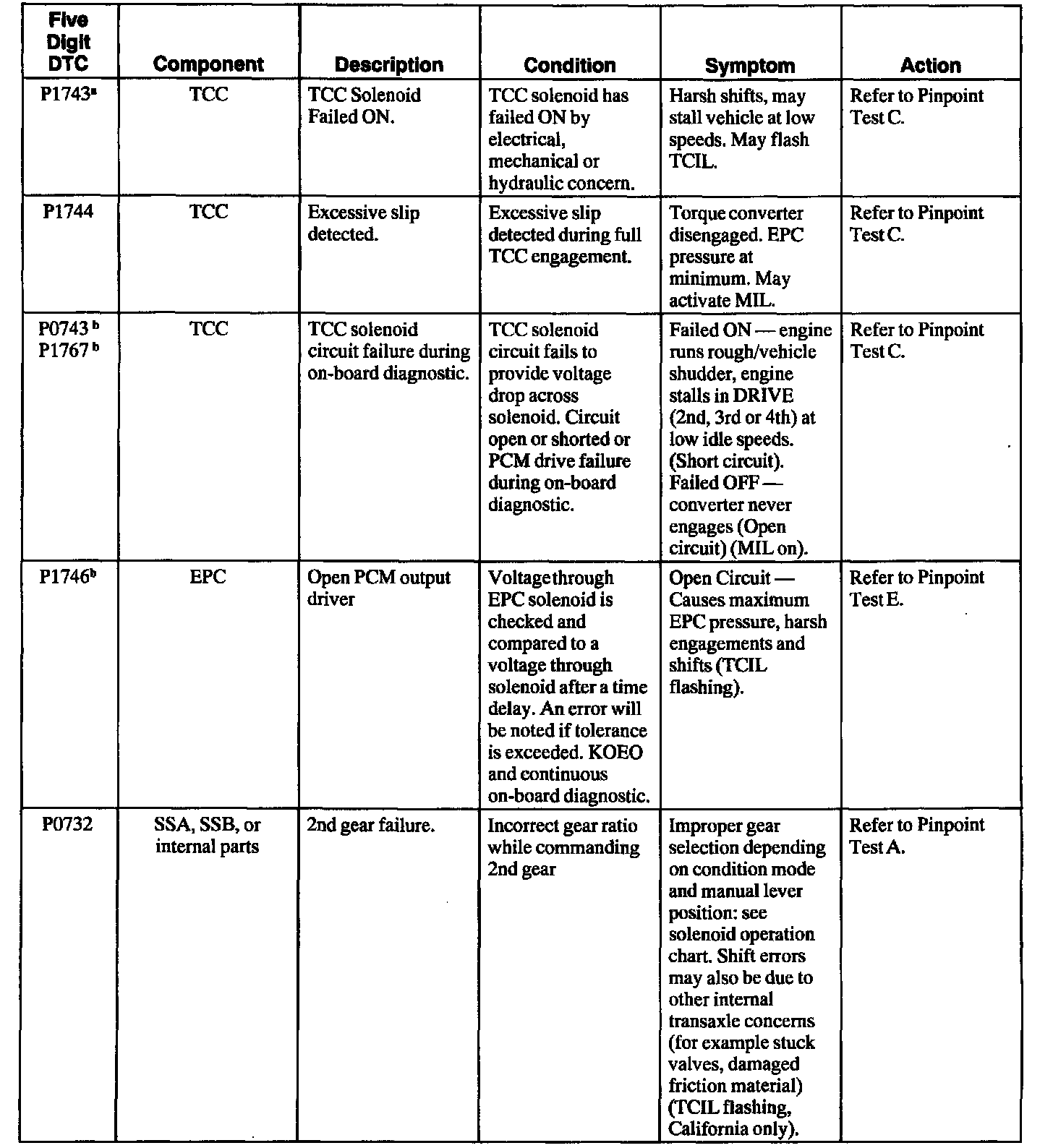

P0732-P1767:

Part 6 of 8

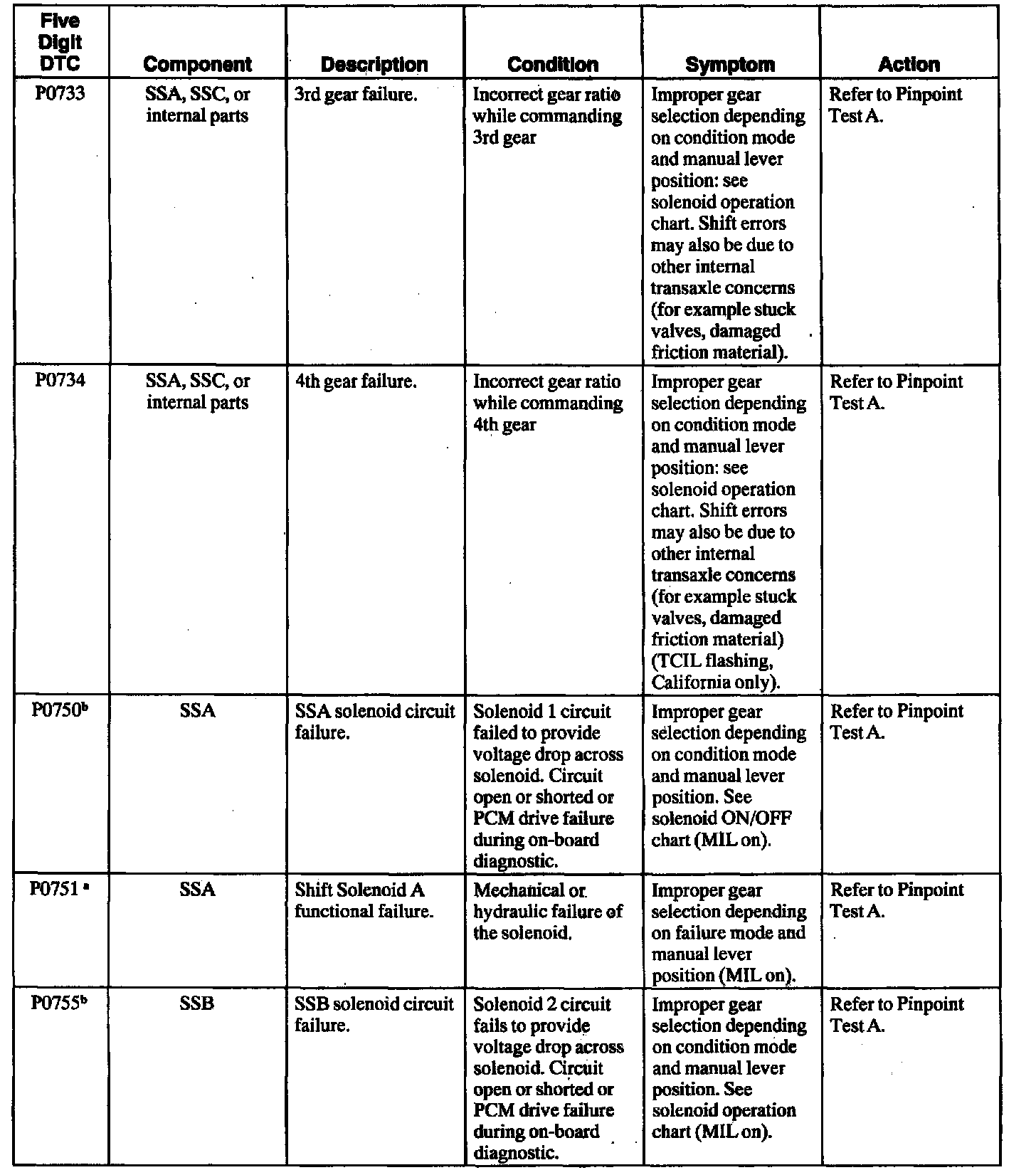

P0733-P0755:

Part 7 of 8

P0756-P1760:

Part 8 of 8

Footnotes
b Output circuit check, generated only by electrical symptoms.
a May also be generated by some other non-electric transaxle hardware system.
