Range Selection

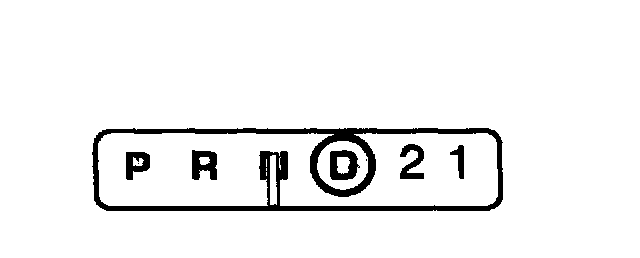

The transaxle has six range positions: P, R, N, (D), 2 and 1.

Park
In the PARK position:
- there is no powerflow through the transaxle.
- the park pawl locks the final drive.
- the engine may be started.
- the ignition key may be removed.

Reverse
In the REVERSE position:
- the vehicle may be operated in a rearward direction, at a reduced gear ratio.
- engine braking will not occur.
- vehicle speed not allowed below 48 km/h (30 mph)

Neutral
In the NEUTRAL position:
- there is no powerflow through the transaxle.
- the output shaft is not held and is free to turn.
- the engine may be started.

Overdrive
Overdrive is the normal position for most forward driving.

Overdrive provides:
- automatic shifts.
- apply and release of the torque converter clutch.
- maximum fuel economy during normal operation.

Second Position - 2nd Gear
In the SECOND position:
- there is second gear operation only.
- the vehicle may have improved start-up on slippery roads.
- engine braking will occur.

Manual 1 Position
If this position is selected at normal road speeds, the transaxle will shift into second gear, then into first when the vehicle reaches a speed below approximately 45 km/h (28 mph). This position provides:
- first gear operation only below 45 km/h (28 mph).
- engine braking for descending steep grades.
