Side Air Bag: Service and Repair

REMOVAL

WARNING:
^ ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ CARRY A LIVE AIR BAG MODULE WITH THE AIR BAG AND TRIM COVER POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ DO NOT SET A LIVE SIDE AIR BAG MODULE DOWN ON THE COVER TEAR SEAM. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ AFTER DEPLOYMENT, THE AIR BAG SURFACE CAN CONTAIN DEPOSITS OF SODIUM HYDROXIDE, A PRODUCT OF THE GAS GENERANT COMBUSTION THAT IS IRRITATING TO THE SKIN. WASH YOUR HANDS WITH SOAP AND WATER AFTERWARDS.
^ NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT, WHICH CAN RESULT IN PERSONAL INJURY.
^ SIDE AIR BAG MODULES WITH DAMAGED COVERS MUST BE REPLACED.
^ VEHICLE SENSOR ORIENTATION IS CRITICAL FOR CORRECT SYSTEM OPERATION. IF A VEHICLE EQUIPPED WITH AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) IS INVOLVED IN A COLLISION, INSPECT THE SENSOR MOUNTING BRACKET AND WIRING PIGTAIL FOR DEFORMATION. REPLACE AND PROPERLY POSITION THE SENSOR OR ANY OTHER DAMAGED SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS WHETHER OR NOT THE AIR BAG IS DEPLOYED.
^ TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.
^ PLEASE REFER TO THE APPROPRIATE COMPONENT OR SYSTEM TO DETERMINE LOCATION OF THE FRONT AIR BAG SENSORS.
^ THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.
^ TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).

NOTE:
^ When replacing the side air bag after deployment, refer to information concerning the installation of a new side air bag.
^ Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
^ Right side is shown, left side is similar.

1. Disconnect the battery ground cable and wait at least one minute.
2. Remove the seat from the vehicle.

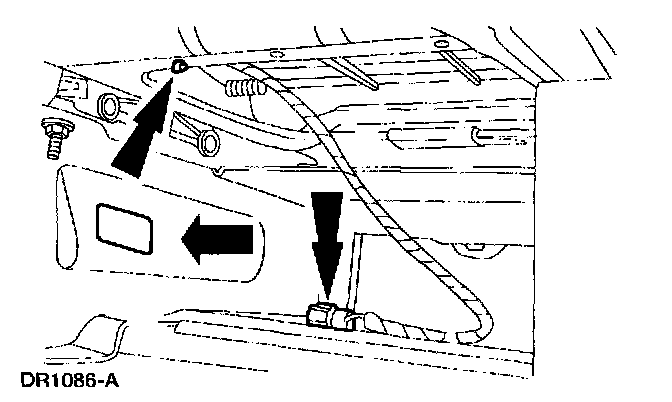

3. Remove the retaining screw at the back of the lower seat trim panel. Remove the other side.

WARNING: FRONT SEAT BACK TRIM COVERS INSTALLED ON SEATS EQUIPPED WITH SIDE AIR BAGS CANNOT BE REPAIRED. THEY ARE TO BE REPLACED (CLEANING IS PERMISSIBLE).

NOTE: Passenger seat shown, driver seat is similar.







4. Remove the retaining clip at the front, prying between the nut head and the seat frame, and remove the lower seat trim panel. Remove the other side.

NOTE: Right side is shown, left side is similar.

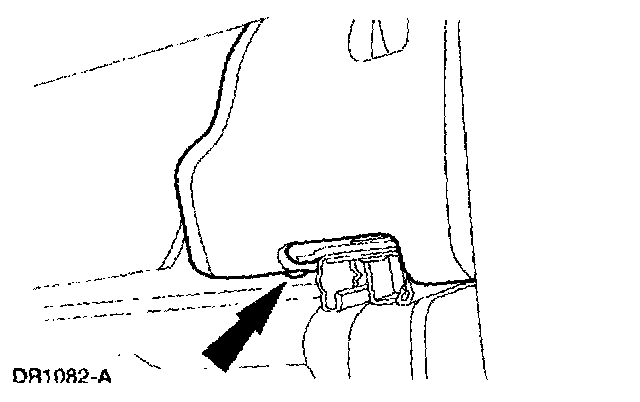

5. Remove the armrest by pushing in on the release tab.







6. Remove the armrest stop and retainer.

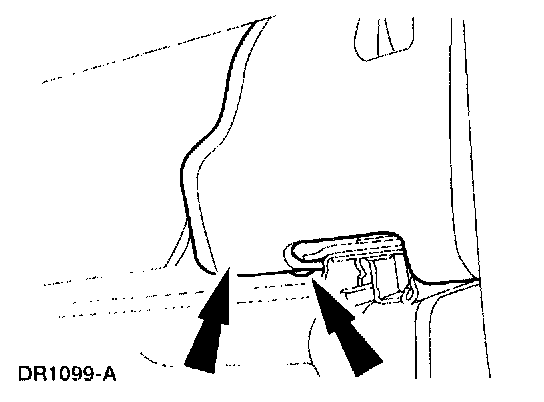

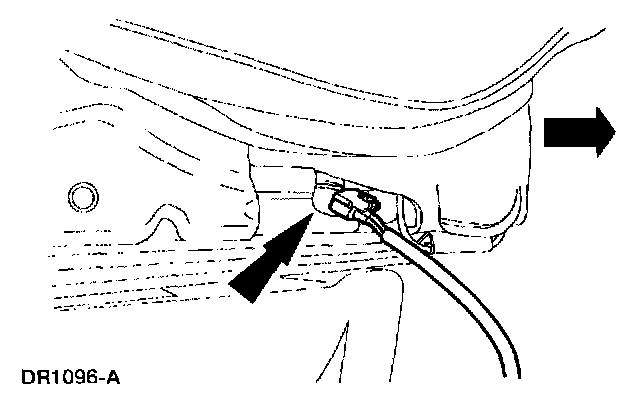

7. Remove the two pushpins retaining the side air bag wire harness to the seat bottom and route it through the seat bottom.

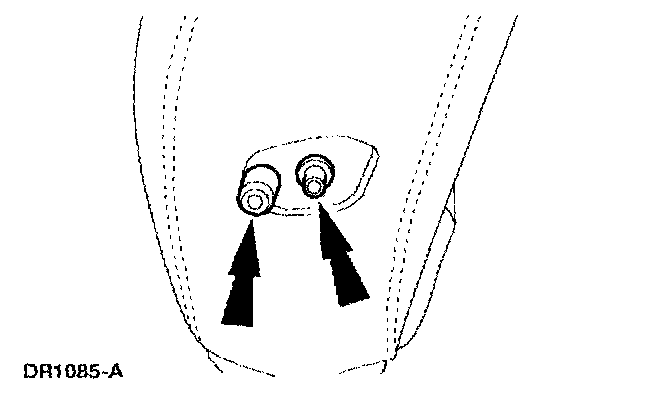

8. Remove the two bolts.

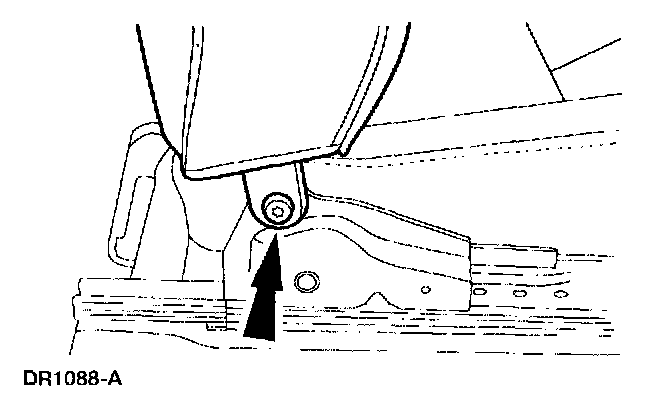

9. Remove one bolt and set the seat back on the bench.

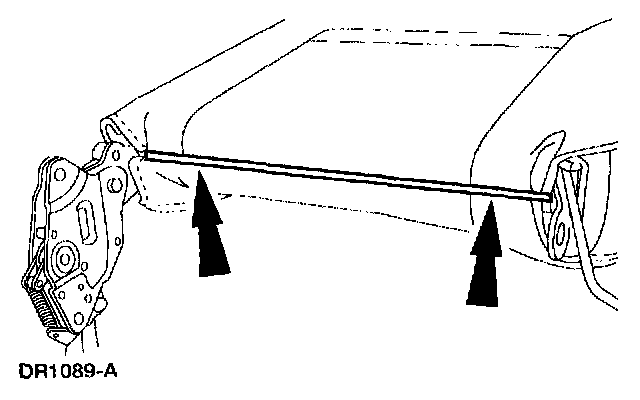

10. Release the seat back trim cover retaining strips.

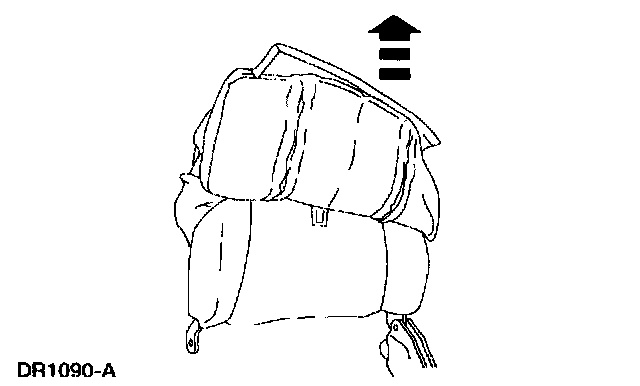

11. Peel up the seat back trim cover in an inside out fashion, enough to access the side air bag module.

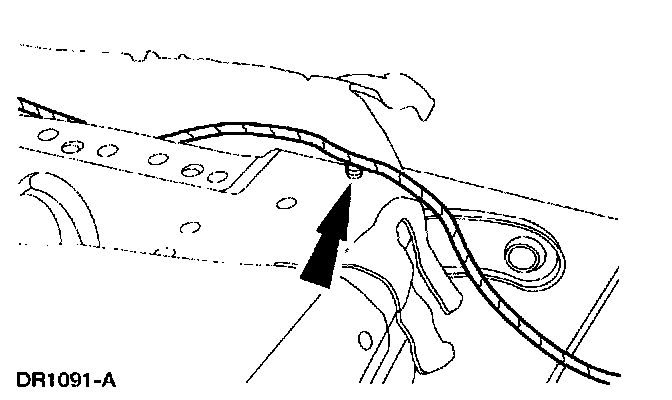

12. Remove the pushpin retaining the side air bag module wire harness to the seat back frame.

WARNING: DO NOT DISCONNECT THE WIRE CONNECTOR AT THE SIDE AIR BAG MODULE. THIS IS A PERMANENT CONNECTION. DOING SO MAY RESULT IN AIR BAG ACCIDENTAL DEPLOYMENT, WHICH MAY RESULT IN PERSONAL INJURY.

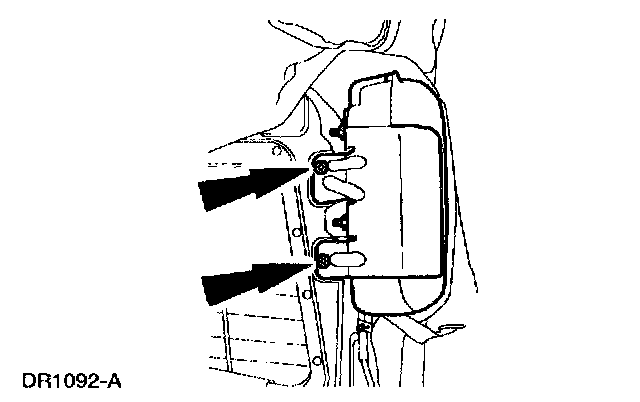

13. Remove the two retaining bolts and remove the side air bag module.

INSTALLATION

WARNING:
^ ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ CARRY A LIVE SIDE AIR BAG MODULE WITH THE AIR BAG AND TEAR SEAM POINTED AWAY FROM YOUR BODY. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT, WHICH CAN RESULT IN PERSONAL INJURY.

NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.

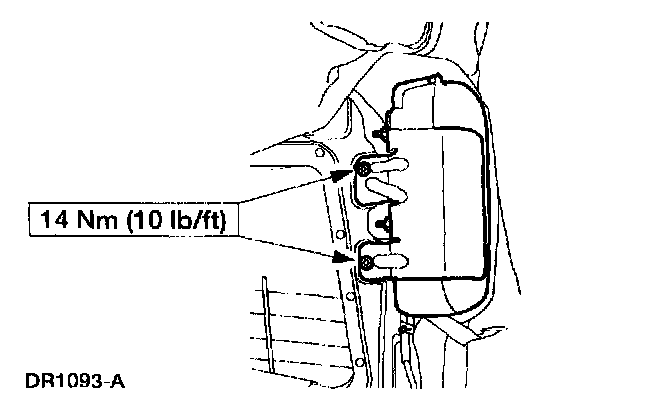

1. Install the side air bag module and the two bolts and tighten to specification.

WARNING:
^ INSPECT THE MOUNTING SURFACES OF THE SIDE AIR BAG MODULE AND THE SEAT BACK FRAME MOUNTING BRACKET FOR ANY FOREIGN OBJECTS BEFORE INSTALLING THE SIDE AIR BAG MODULE. IF ANY FOREIGN OBJECTS ARE FOUND, REMOVE THEM. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY IN THE EVENT OF AN AIR BAG DEPLOYMENT.
^ INSPECT THE SIDE AIR BAG CAVITY IN THE SEAT BACK PAD FOR ANY FOREIGN OBJECTS. IF ANY FOREIGN OBJECTS ARE FOUND, REMOVE THEM. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY IN THE EVENT OF AN AIR BAG DEPLOYMENT.
^ BEFORE INSTALLING THE SIDE AIR BAG MODULE, CHECK IT FOR DAMAGE AND FOREIGN OBJECTS. IF THE AIR BAG MODULE IS DAMAGED, REPLACE IT. IF ANY FOREIGN OBJECTS ARE FOUND, REMOVE THEM. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY IN THE EVENT OF AN AIR BAG DEPLOYMENT.







2. Route the side air bag module electrical connector down the side of the seat back and install the pushpin.







3. Reposition the seat back trim cover and secure the retaining strips.







4. Reposition the seat back onto the seat bottom.

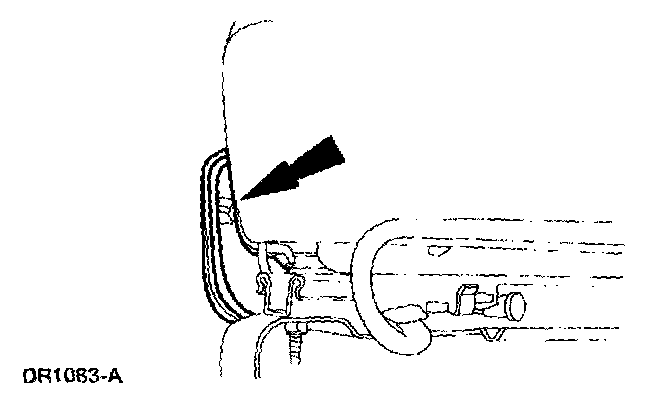

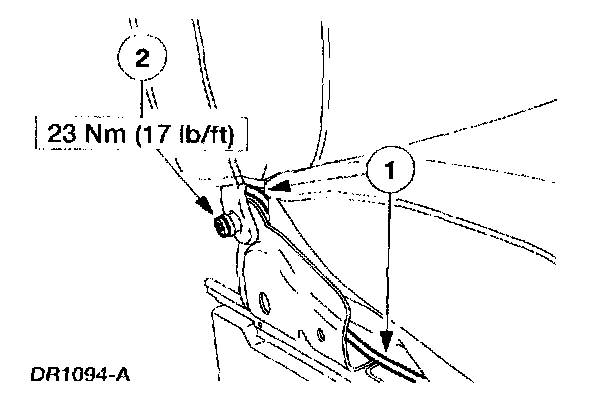

1 Route the side air bag module wiring harness in front of the seat back pivot and through the relief in the seat bracket.
2 Install the retaining bolt and tighten to specification.

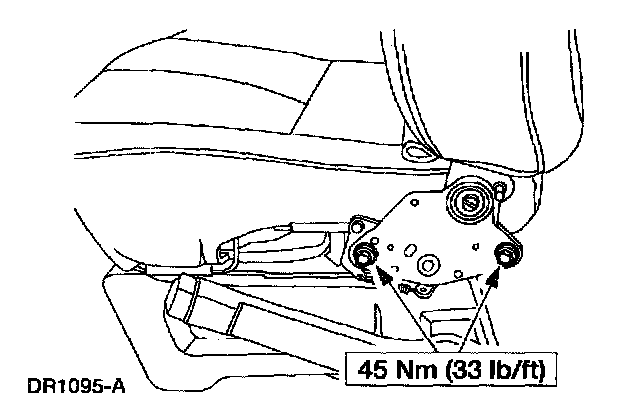

5. Install the two retaining bolts and tighten to specification.







6. Route the side air bag module harness through the seat bottom.







7. Route and install the pushpins for the side air bag module wire harness.

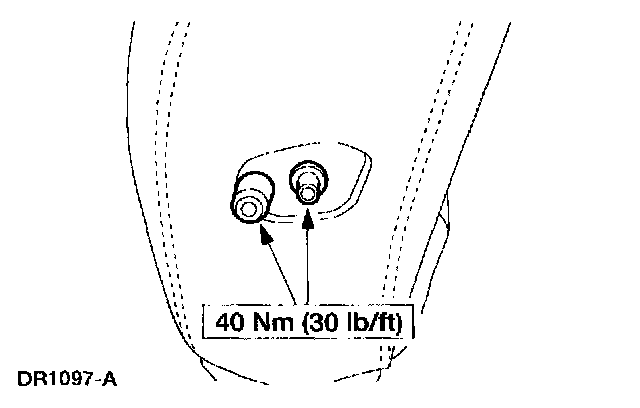

8. Install the armrest stop and retainer and tighten to specification.







9. Install the armrest.







10. Install the lower seat trim panels and screws.

NOTE: Passenger seat is shown, driver seat is similar.

11. Install the seat into the vehicle.
12. Connect the negative battery cable.
13. Prove out the air bag system.

WARNING: THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.
