SERVICE PROCEDURE

1. Raise and support the vehicle.

CAUTION
Orientation of the fuel line clips is critical. The prongs on each clip should face away from the fuel tank. Do not cover the blue release tab of the fuel fittings with the clips.

2. Install a fuel line clip to the fuel supply line and return line fittings located in front of the fuel tank as follows.

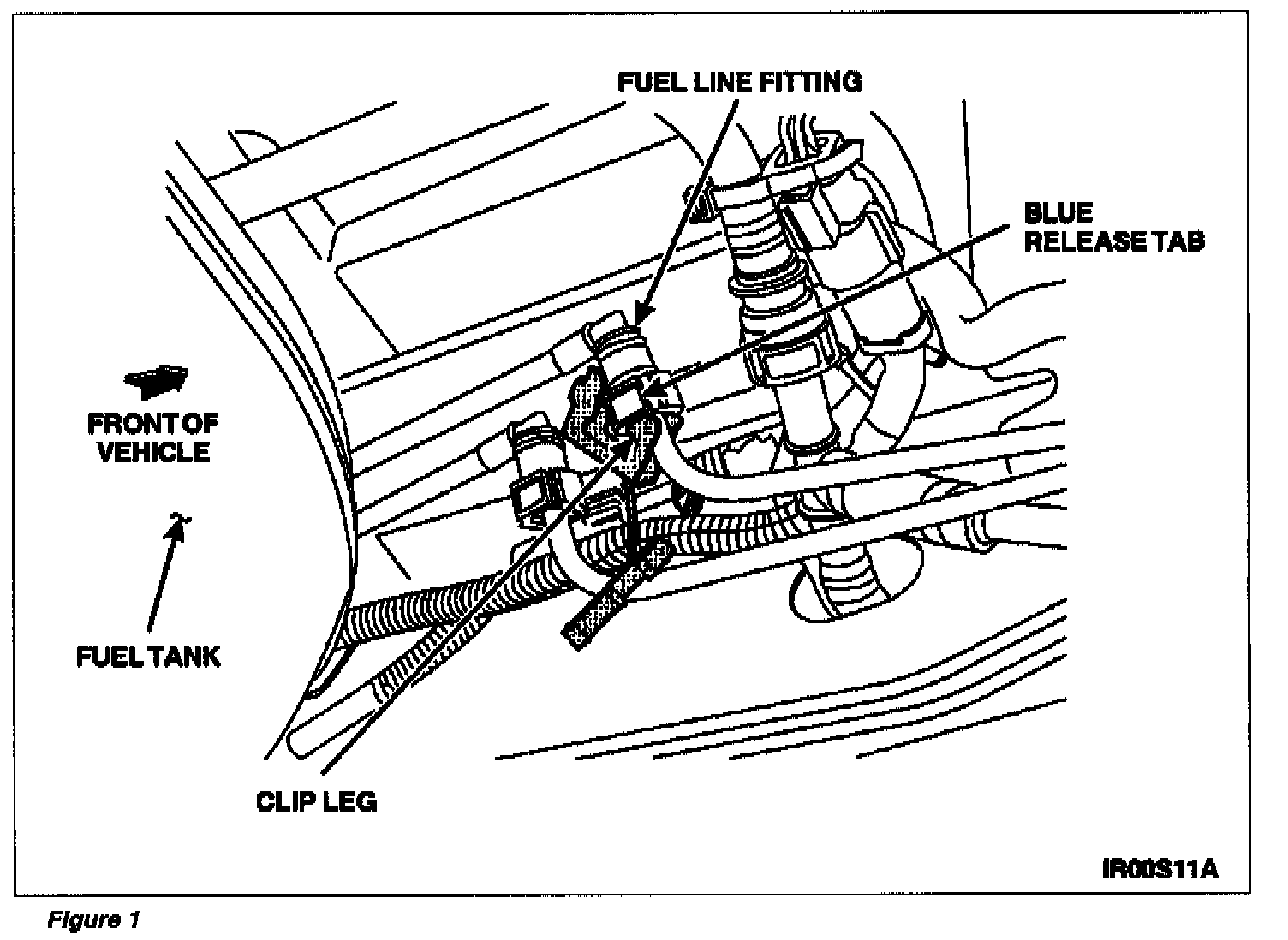

^ Snap the lower end of a fuel line clip onto each of the fuel lines, then slide the legs of each clip into the end of the fuel line fitting. See Figure 1.

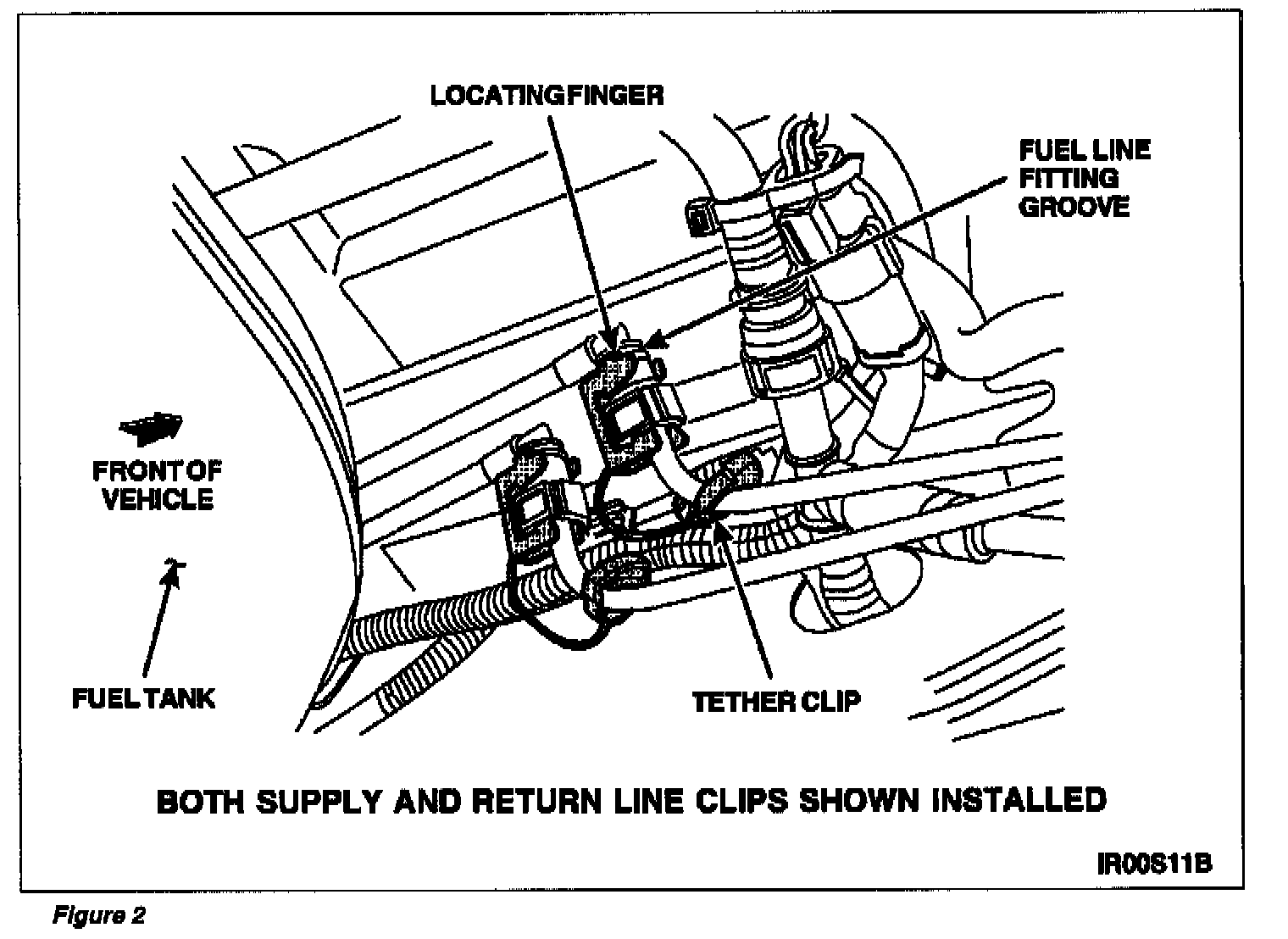

^ Snap the top end of each fuel line clip onto the fuel line fitting. The locating fingers of the clip should be seated in the groove on the fitting. See Figure 2.

^ Install the tether clip to the fuel line. See Figure 2.

3. Lower the vehicle.
