Attachment III - Technical Information

AFFECTED VEHICLES:
ALL 1999 AND 2000 MODEL YEAR WINDSTAR VEHICLES

NOTE:
SOME VEHICLES MAY HAVE HAD THE PCM REPROGRAMMED PREVIOUSLY. ON THESE VEHICLES, VERIFY CALIBRATION USING APPROPRIATE DIAGNOSTIC TOOL.

SERVICE PROCEDURE

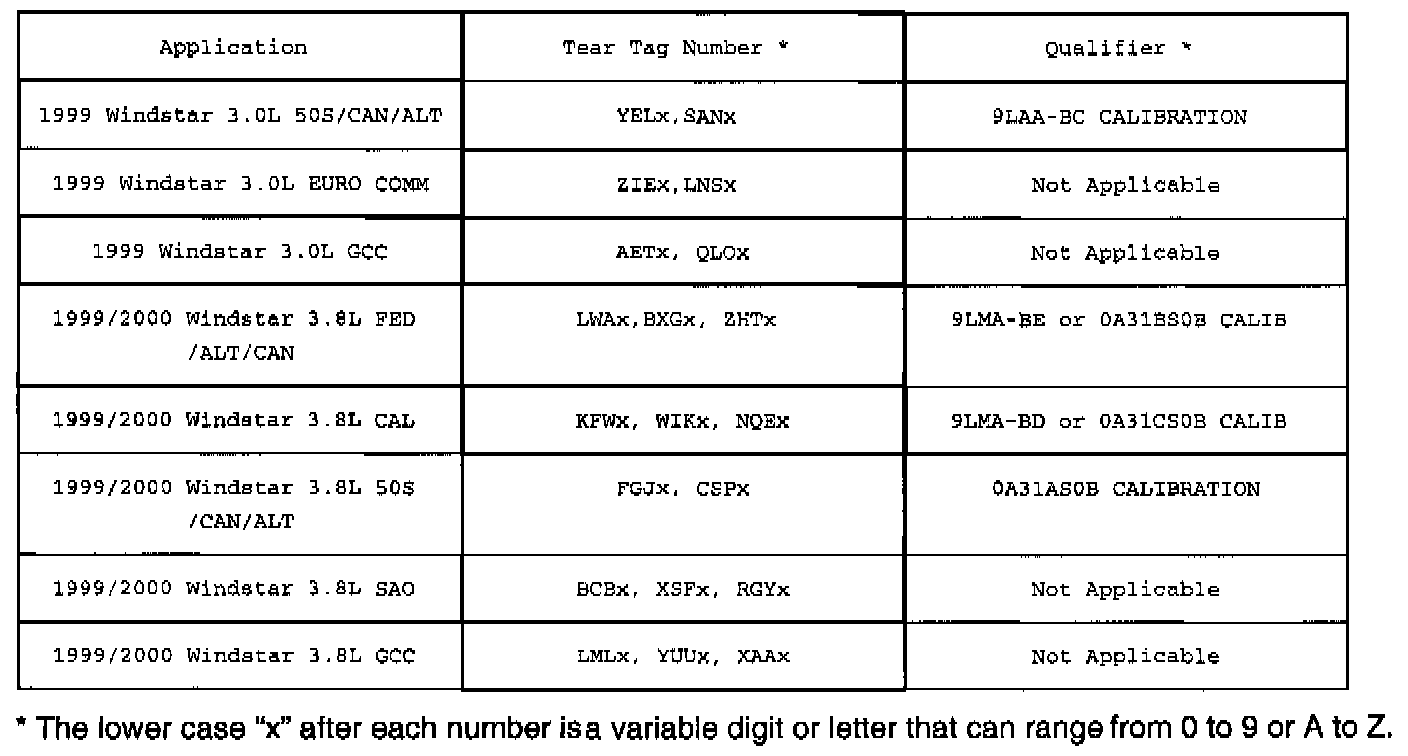

1. Reprogram the Powertrain Control Module (PCM) to the latest calibration listed in the table shown (only one of these calibrations will be selectable for each vehicle), using one of the following two (2) methods:

^ Worldwide Diagnostic system (WDS). Use B9 CD-ROM dated August 2000 or later.

NOTE:
It your WDS is connected to FordStar, your WDS already contains the latest calibrations. If your WDS is not currently connected to FordStar and the B9 CD-ROM has not arrived at your dealership, call 1-800-207-2444.

^ Service Bay Technical System (SBTS) and the New Generation STAR (NGS) Tester with Rotunda flash cable (007-00531) and Rotunda flash card (007-00532). Use R00SEP Calibration CD-ROM dated August 2000 or later.

NOTE:
If your SBTS is connected to FordStar, your SBTS already contains the latest calibrations. If your SBTS is not currently connected to FordStar and the R00SEP CD-ROM has not arrived at your dealership, call 1-800-207-2444.

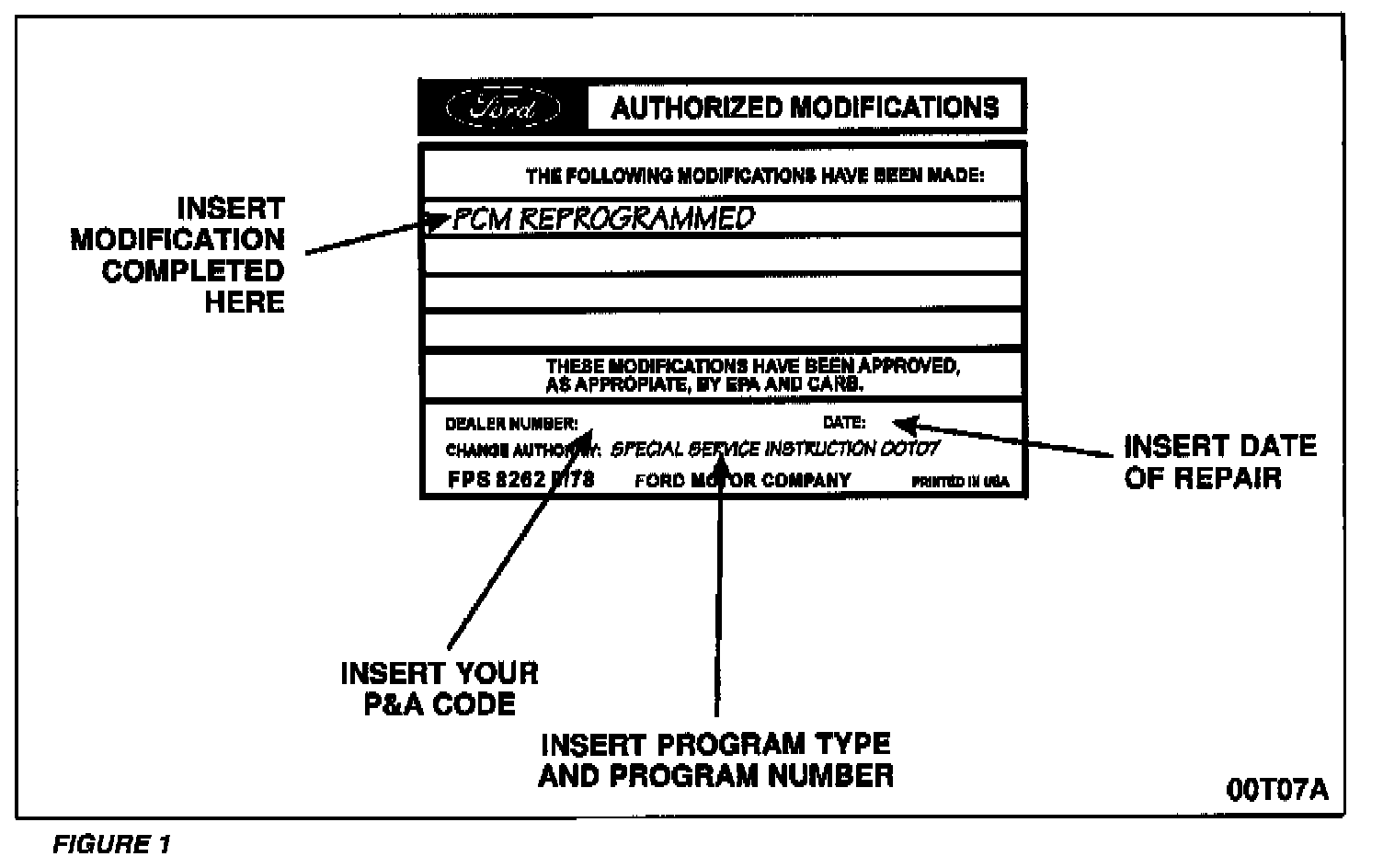

2. Obtain and prepare the Authorized Modifications Label. Write the modification completed, your P & A Code, date of repair and the program type and program number as shown.

3. Apply label to clear area of the upper radiator support.
