Cable Bracket

REMOVAL
1. Remove the air cleaner outlet tube. For additional information, refer to Fuel Delivery and Air Induction.

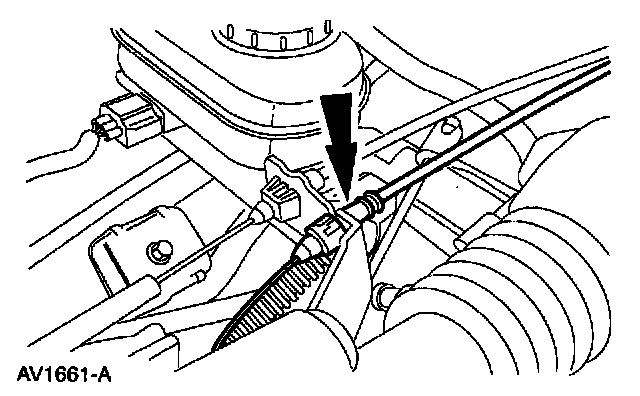

2. Disconnect the accelerator cable from the throttle lever.

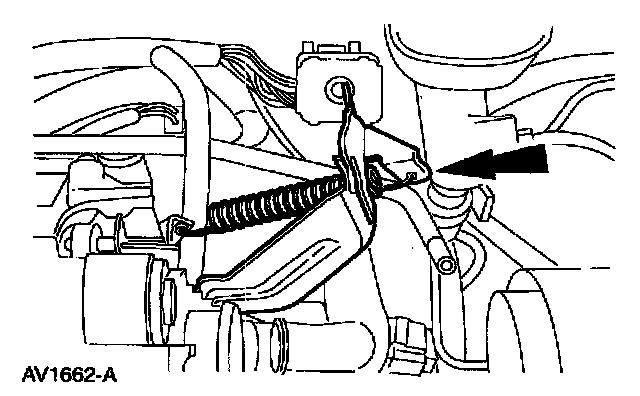

3. Disconnect the accelerator cable fitting from the accelerator cable bracket.
4. Remove the speed control cable. For additional information, refer to Cruise Control.







5. Remove the throttle return spring from the accelerator cable bracket.

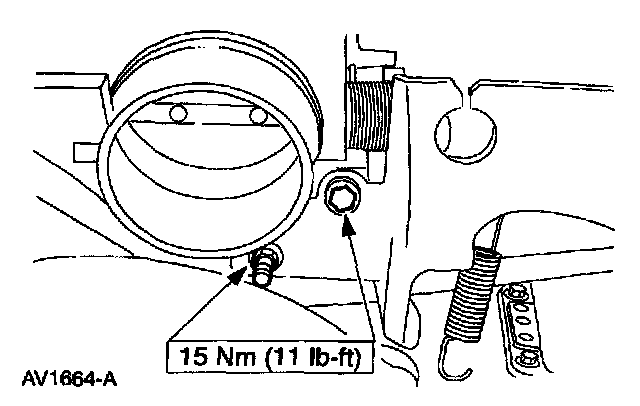

6. Remove the bolt and the stud nut and remove the bracket.


INSTALLATION
1. To install, reverse the removal procedure.
