Accelerator Pedal: Service and Repair

REMOVAL

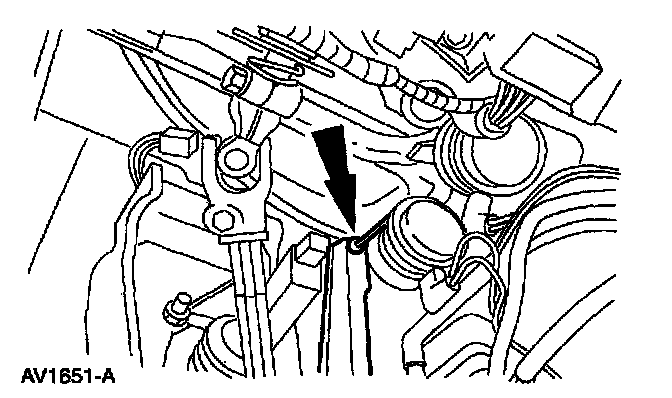

1. Remove the accelerator cable from the accelerator pedal and shaft.

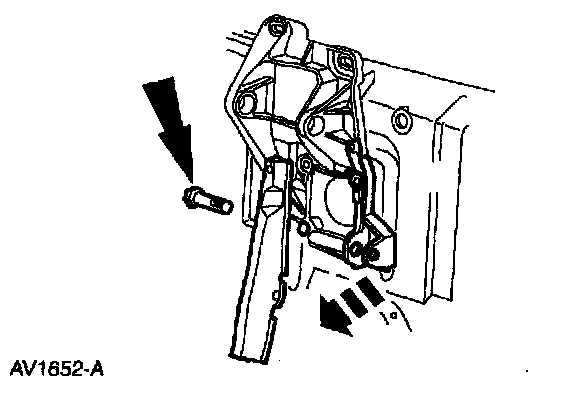

2. Depress the tabs on the accelerator pedal retaining pin and remove the pin. Remove the accelerator pedal.

INSTALLATION.
1. To install, reverse the removal procedure.
