Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL.

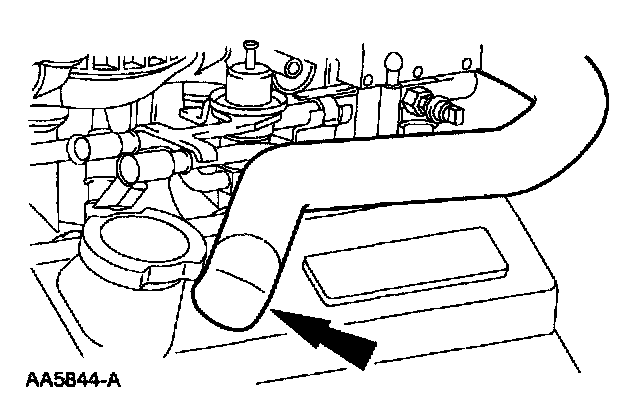

1. Remove the crankcase ventilation tube from the rocker cover.







2. Remove the Positive Crankcase Ventilation (PCV) Valve.

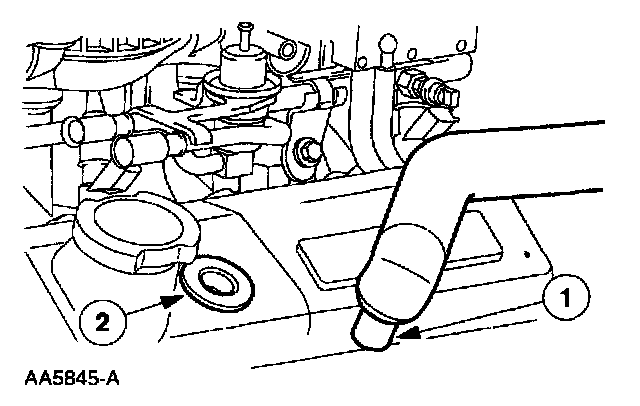

1 Remove the PCV valve from the crankcase ventilation tube assembly.
2 Inspect the grommet for damage and, if necessary, install a new grommet.

INSTALLATION.
1. To install, reverse the removal procedure.
