EGR Electronic Vacuum Regulator Solenoid: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

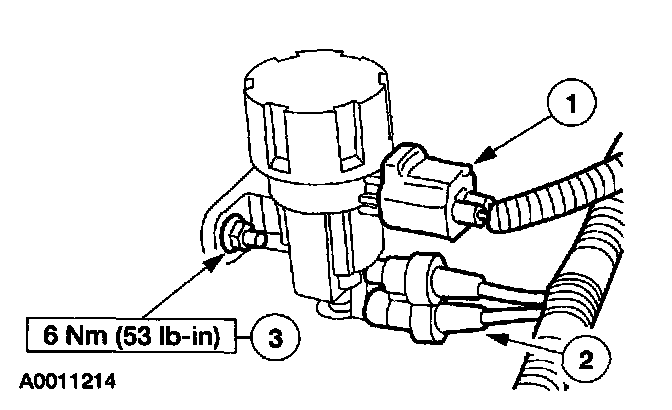

2. Remove the EGR Vacuum Regulator Solenoid.
1 Disconnect the electrical connector.
2 Disconnect the vacuum lines.
3 Remove the nuts.

INSTALLATION
1. To install, reverse the removal procedure.
