Horn: Service and Repair

REMOVAL

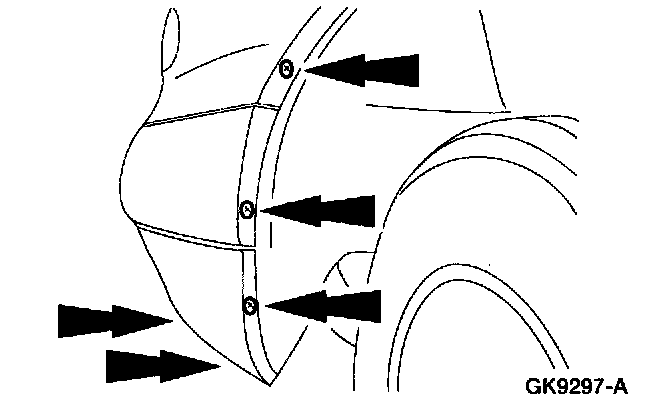

1. Remove the splash shield screws.

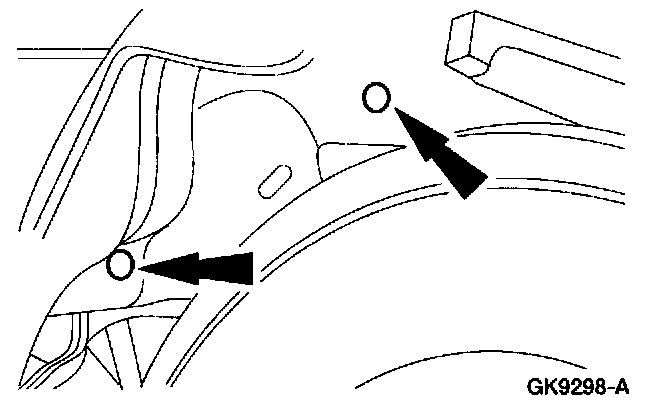

2. Remove the pin-type retainers.
3. Position the splash shield aside to access the horn assembly.

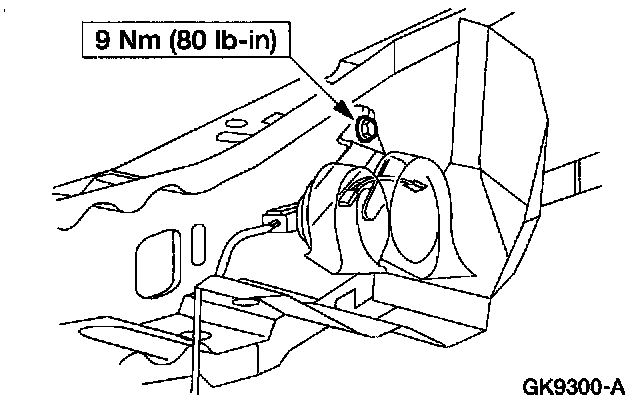

4. Remove the horn assembly.
1 Disconnect the electrical connector.
2 Remove the bolt.

INSTALLATION







1. To install, reverse the removal procedure.
