Dome Lamp: Service and Repair

REMOVAL

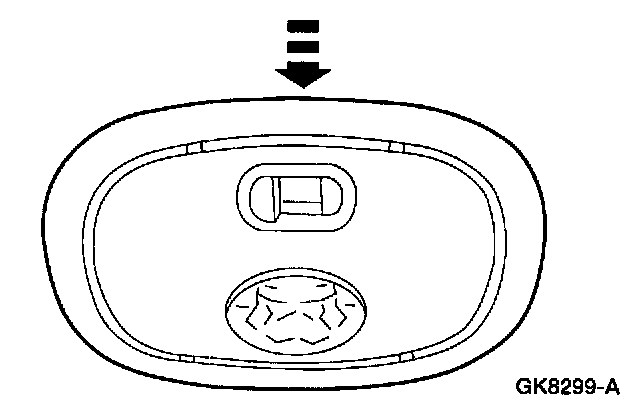

1. Position the lamp assembly aside.
^ Push the lamp assembly forward and pull the lamp assembly down.

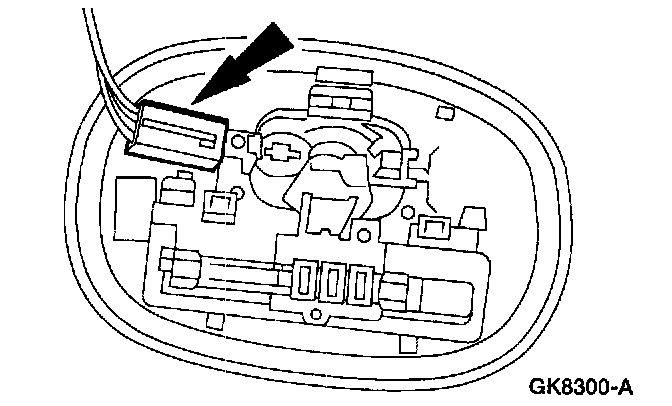

2. Remove the lamp assembly.
^ Disconnect the electrical connector.

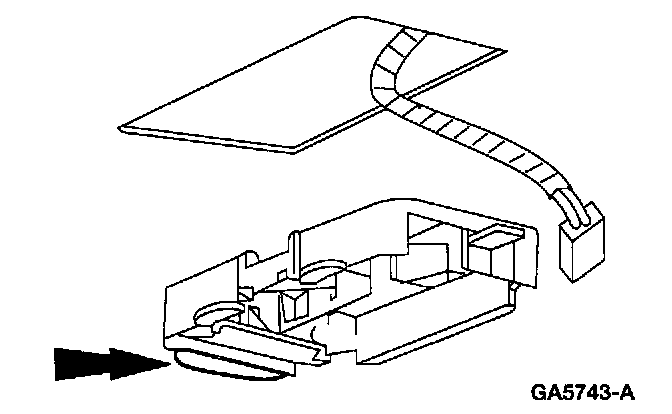

3. Remove the lamp assembly bracket.
1 Release the side retaining tabs.
2 Bend the retaining tab 90°.

INSTALLATION
1. To install, reverse the removal procedure.
