Test C: No Communication With the Module - Rear Electronic Module
Test C: No Communication With the Module - Rear Electronic Module

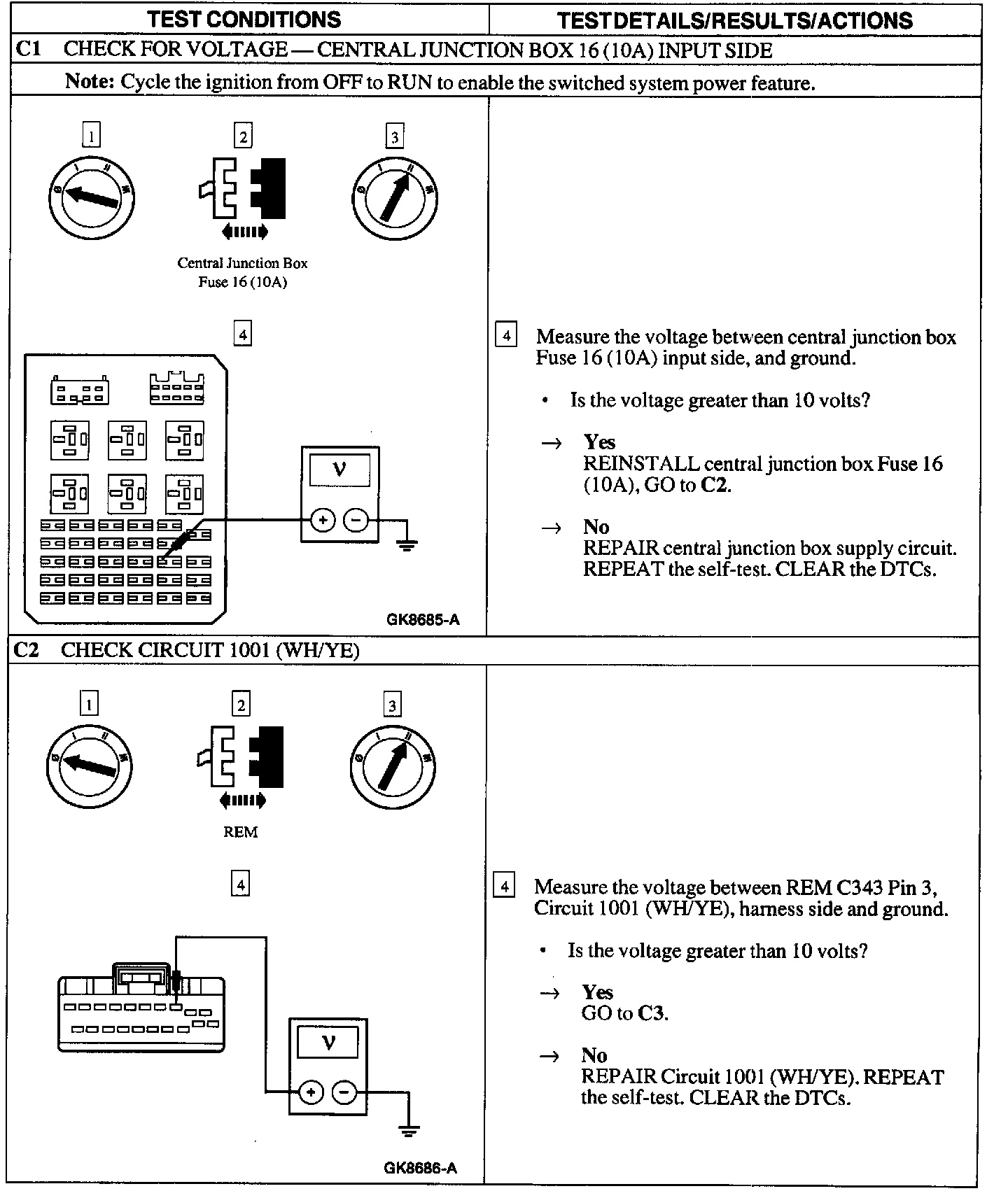

C1 - C2:

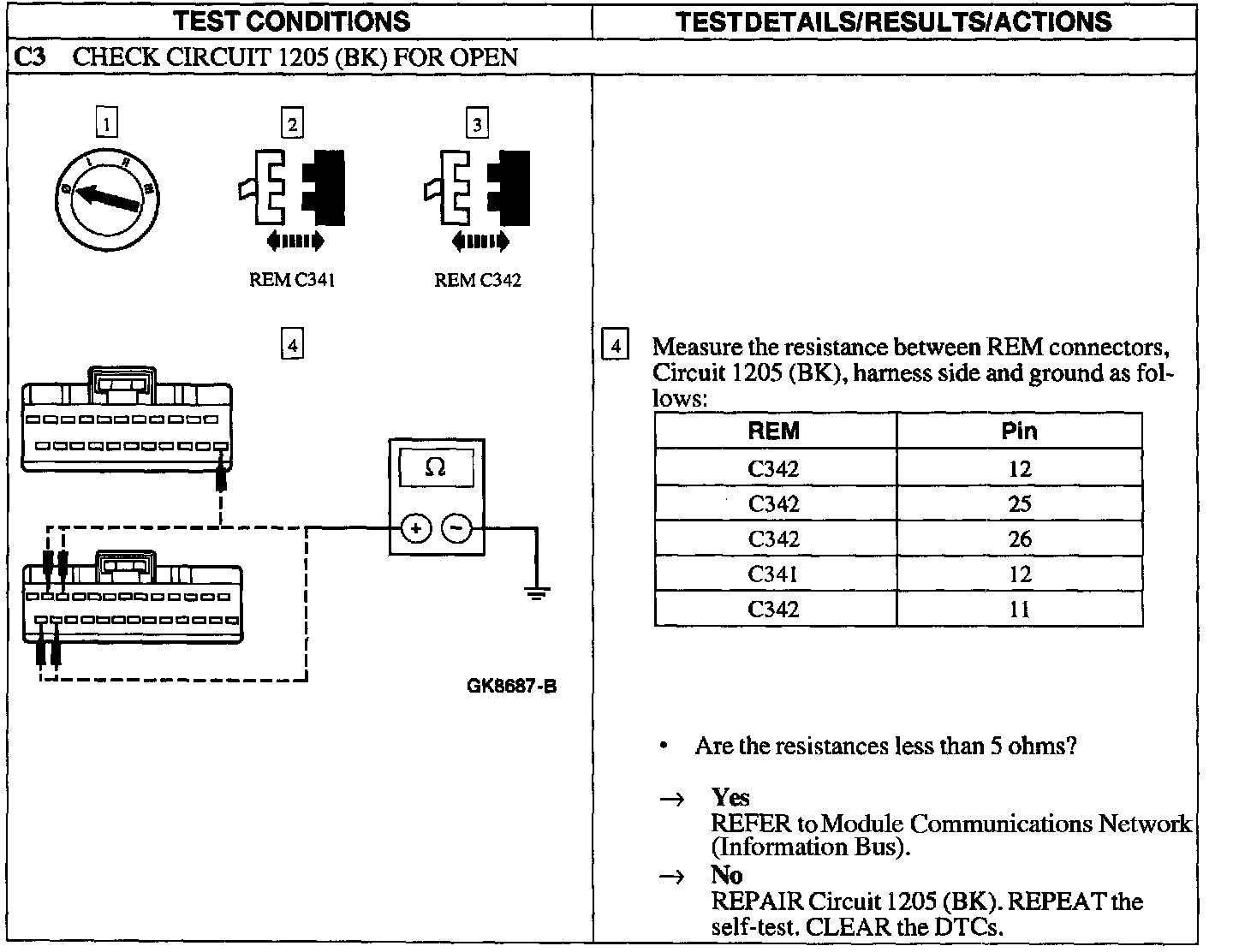

C3:
