Home >> Ford Truck >> 2000 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test K: Blower Motor Operates Continuously In High Speed

Test K: Blower Motor Operates Continuously In High Speed

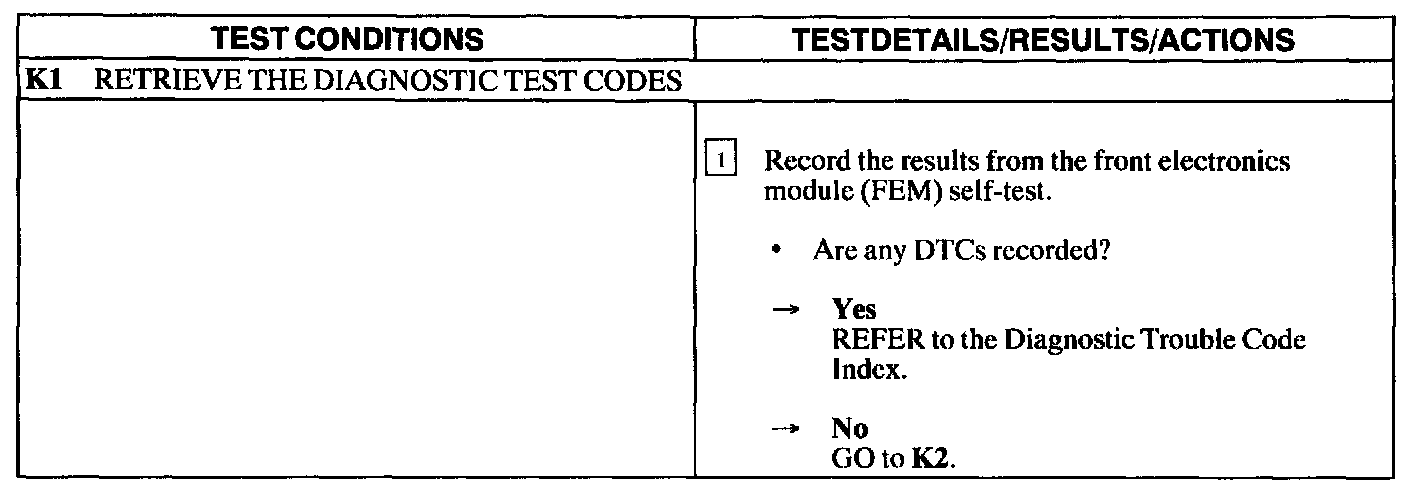

K1:

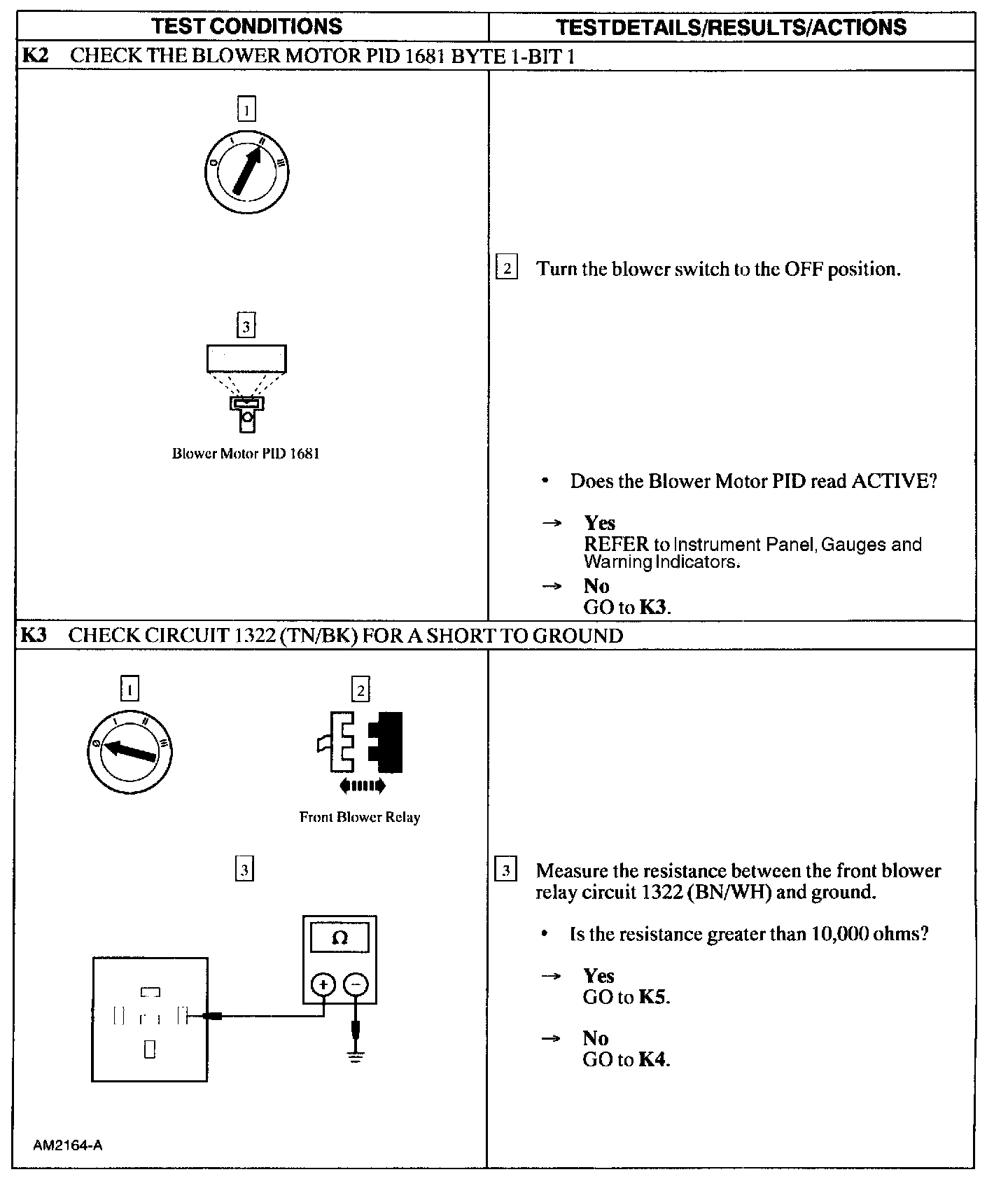

K2 - K3:

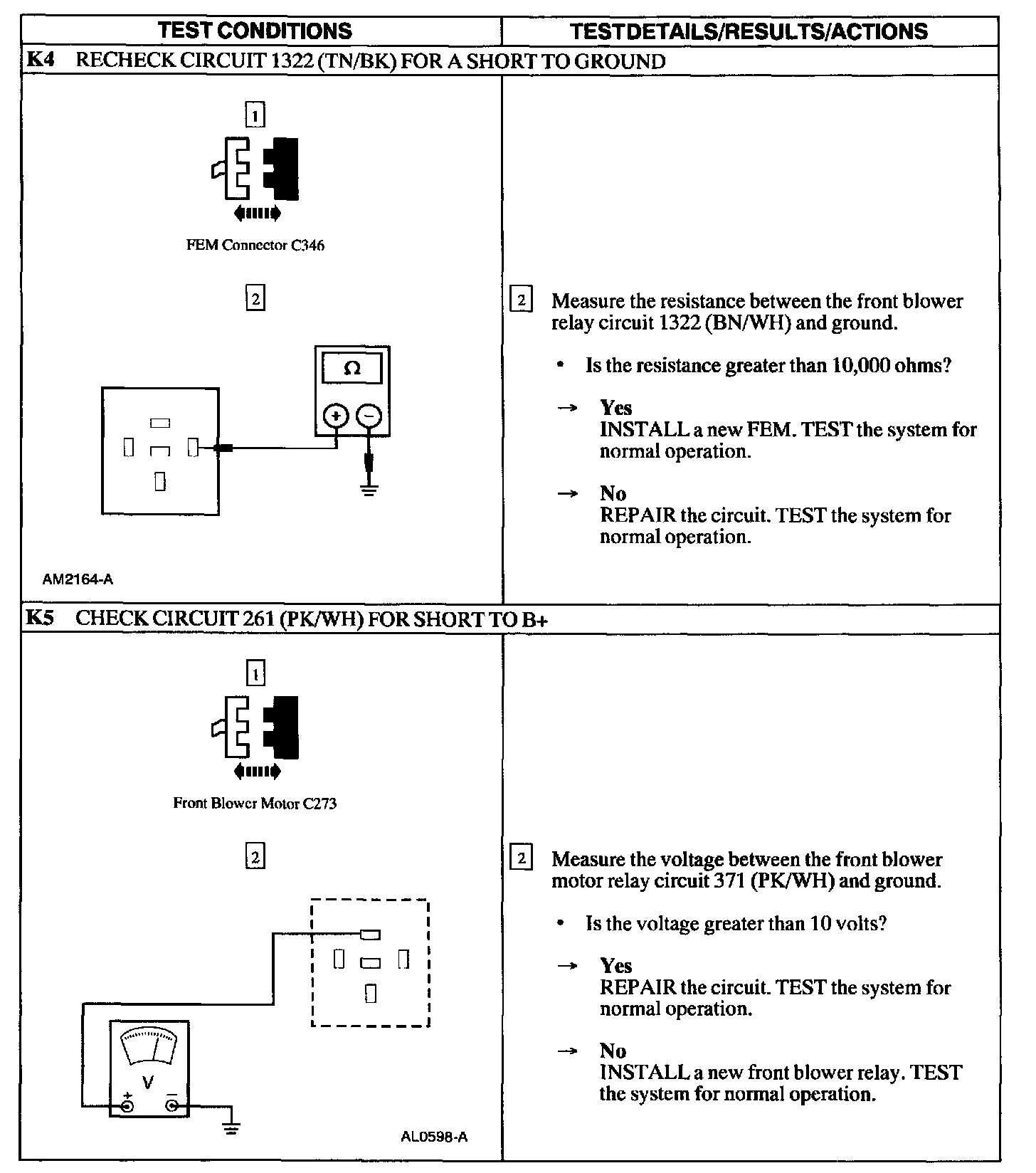

K4 - K5:
