Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2000
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Diagnostic Vacuum Diagrams
Diagnostic Vacuum Diagrams

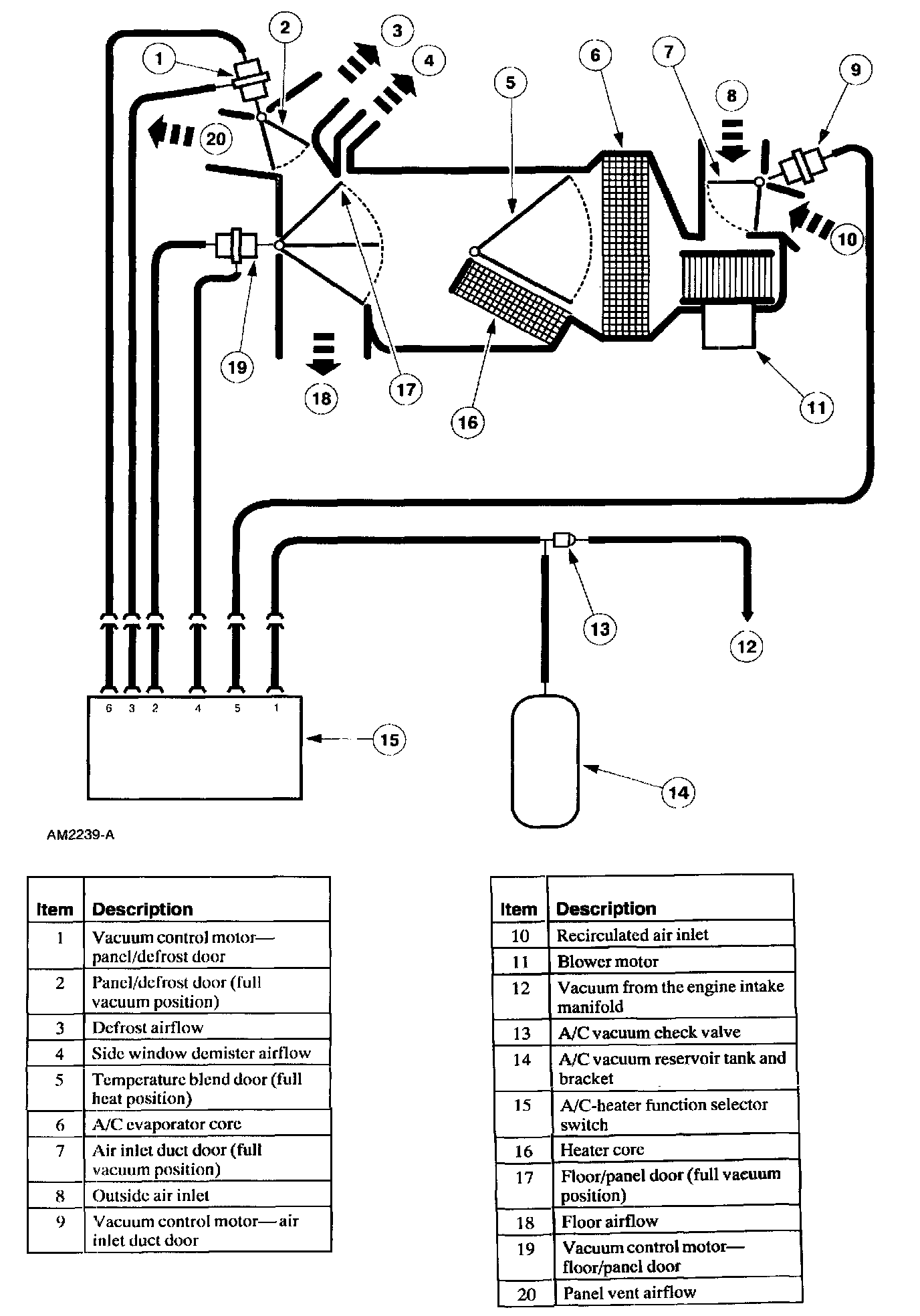

Vacuum Schematic:

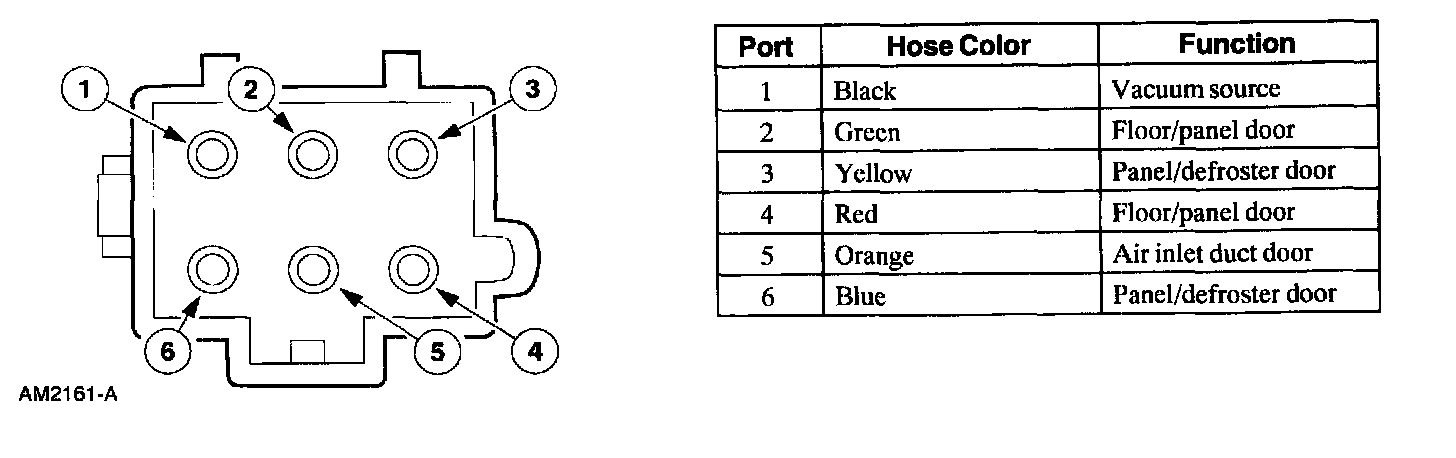

Vacuum Connector End:

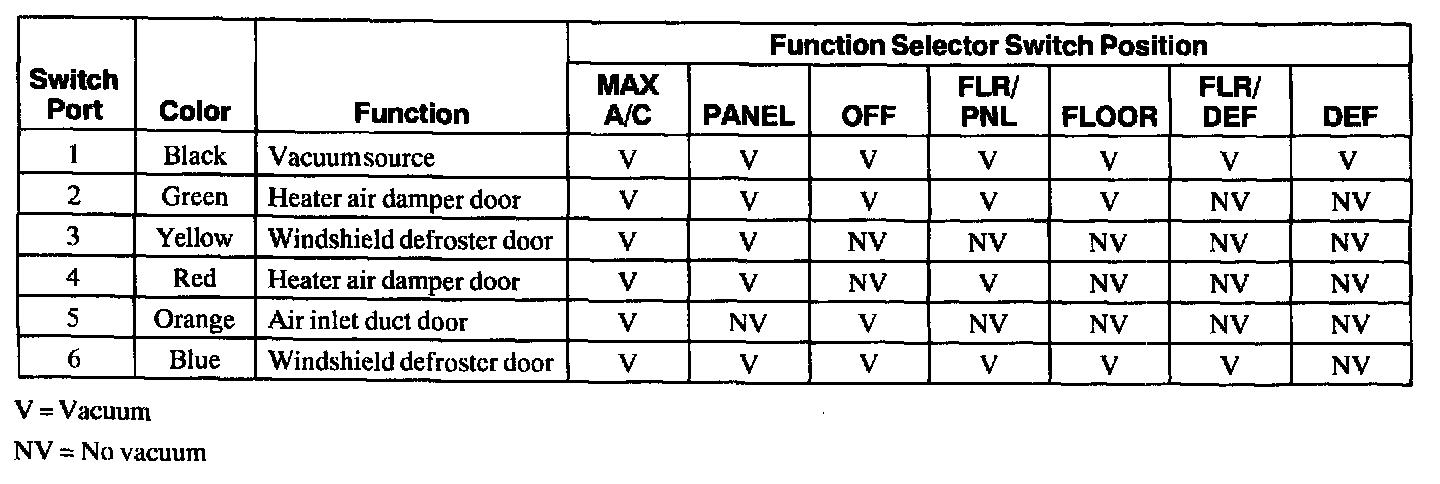

Vacuum Application Chart:
