Main Climate Control

REMOVAL
1. Disconnect the battery.
2. Perform the Refrigerant Discharging and Recovery Procedure. Refrigerant Discharging and Recovery procedure
3. Remove the suction accumulator/drier. For additional information, refer to Accumulator, Air Conditioning.







4. Disconnect the condenser to evaporator line spring lock coupling from the A/C evaporator core.

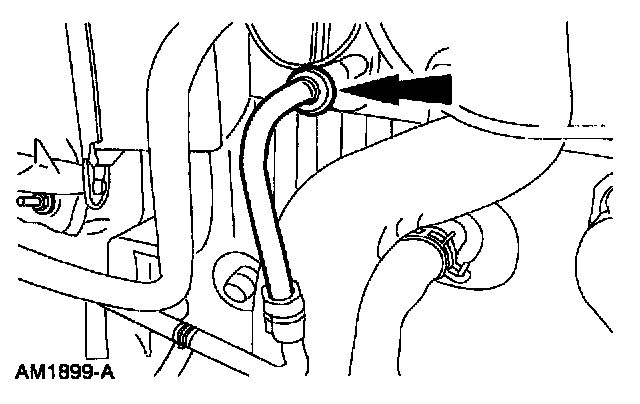

5. Disconnect the line at the condenser.
^ Disconnect the peanut fitting.

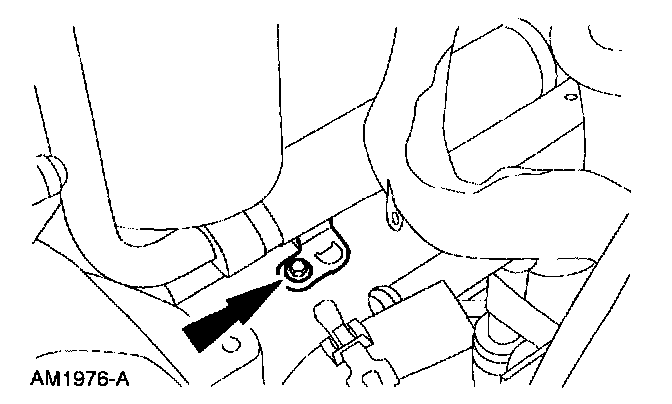

6. Remove the bolt.

INSTALLATION







1. To install, reverse the removal procedure.
^ Lubricate the O-ring seal with PAG Compressor Oil YN-12-C, F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
