Heater Outlet Hose

REMOVAL
1. Drain the cooling system. For additional information, refer to Cooling System.

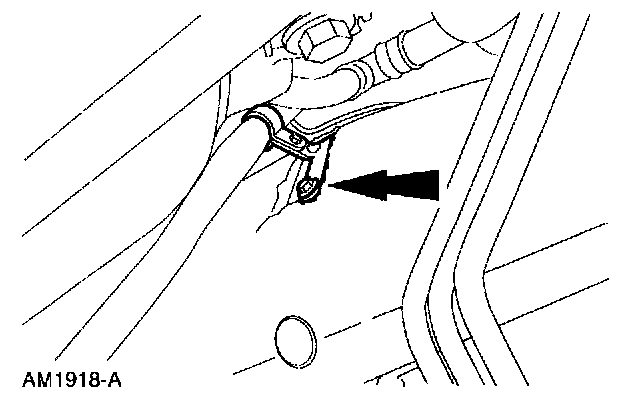

2. Remove the bracket nut.

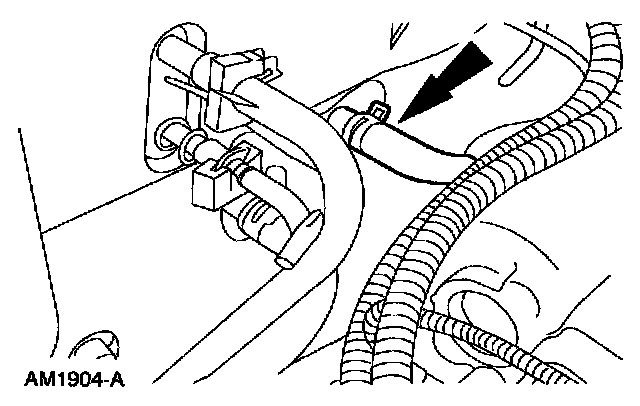

3. Disconnect the heater outlet hose at the engine.







4. Disconnect the heater hose.







5. Remove the heater hose.
6. If equipped with auxiliary A/C, raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.

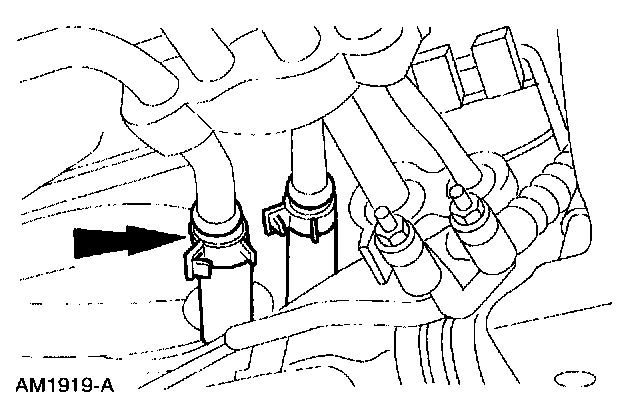

7. Disconnect the hose.

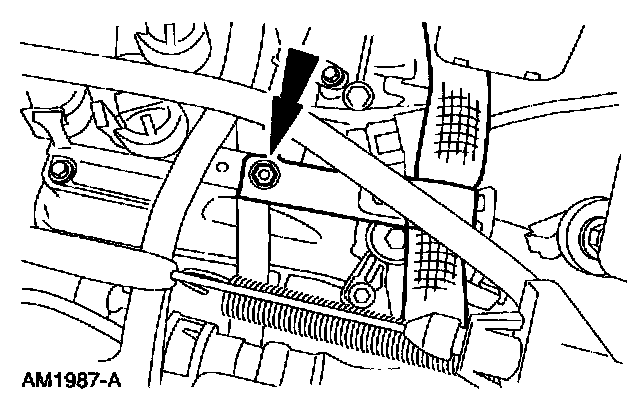

8. Remove the hose bracket bolt.

INSTALLATION
1. To install, reverse the removal procedure.
