Heater Hose Assembly

REMOVAL
1. Drain the cooling system. For additional information, refer to Cooling System.

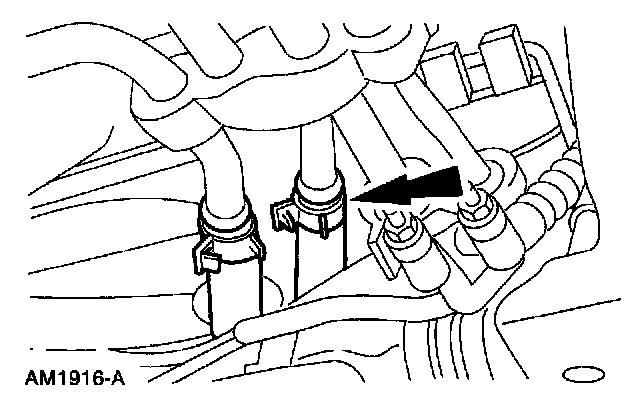

2. Disconnect the hose.
3. If equipped with auxiliary heaters, raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.

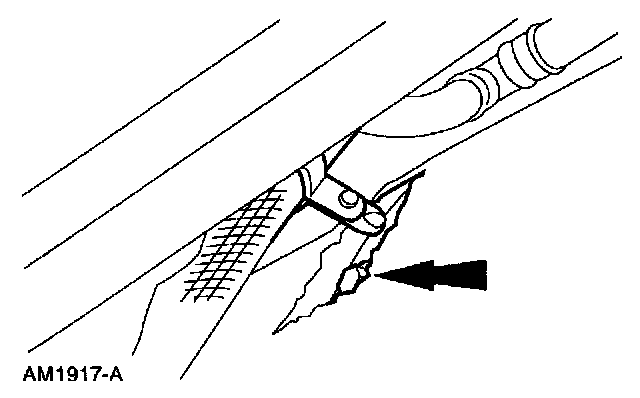

4. Remove the bolts.

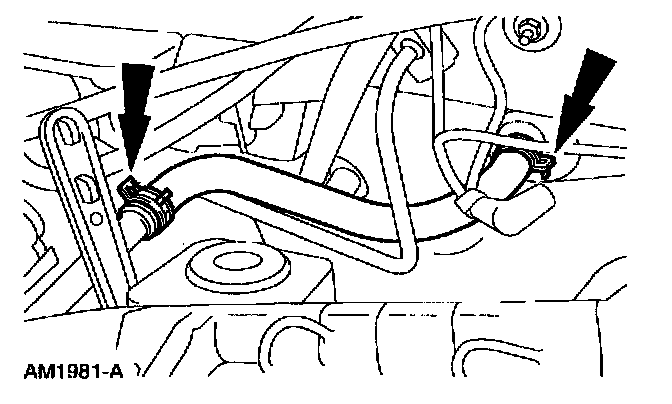

5. Disconnect the hose.

INSTALLATION
1. To install, reverse the removal procedure.
