Electrical Diagrams

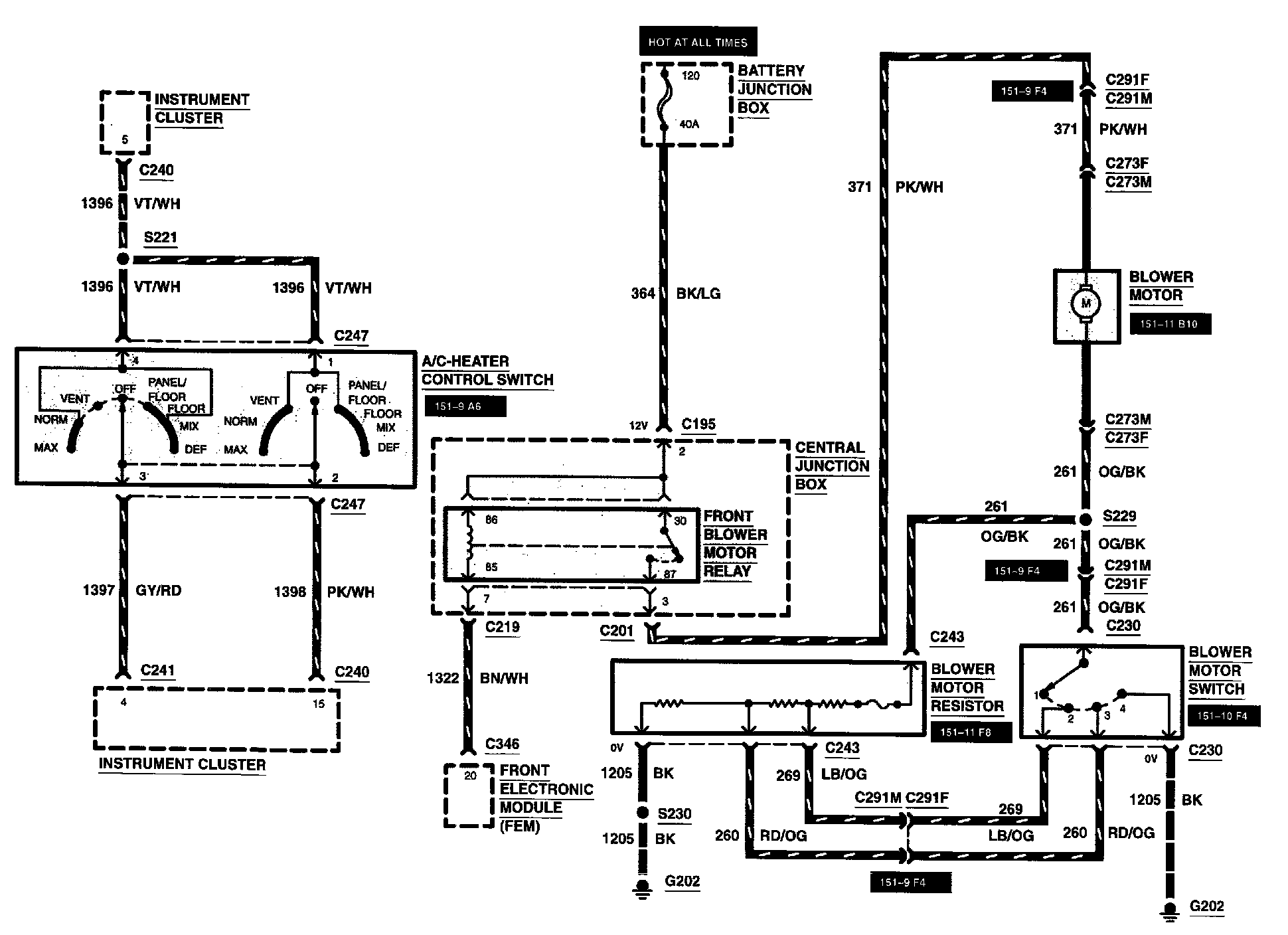

Diagram 54-1:

A/C Heater Control Switch
Battery Junction Box
Blower Motor
Blower Motor Resistor
Blower Motor Switch
Central Junction Box
Front [1][2]Blower Motor Relay
Front Electronic Module
Fuse 120
Instrument Cluster

Diagram 54-2:

A/C Clutch Diode
A/C Clutch Field Coil
A/C Cycling Pressure Switch
A/C Clutch Relay
A/C High Current Cutout/Fan Switch
Battery Junction Box
Central Junction Box
Fuse 3
Fuse 10
Fuse 16
Powertrain Control Module

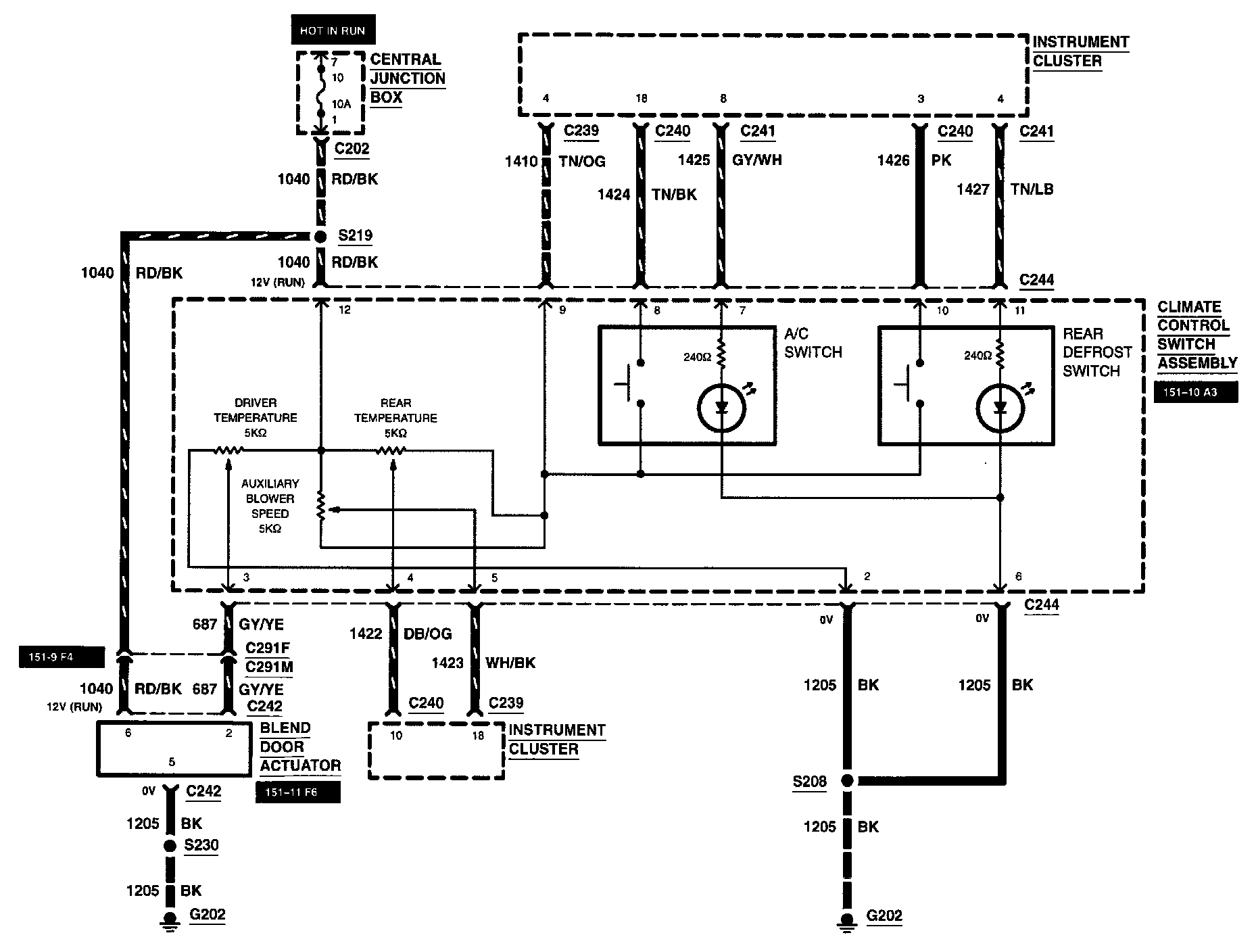

Diagram 54-3:

A/C Switch
Blend Door Actuator
Climate Control Switch Assembly
Central Junction Box
Fuse 10
Instrument Cluster
Rear Defrost Switch

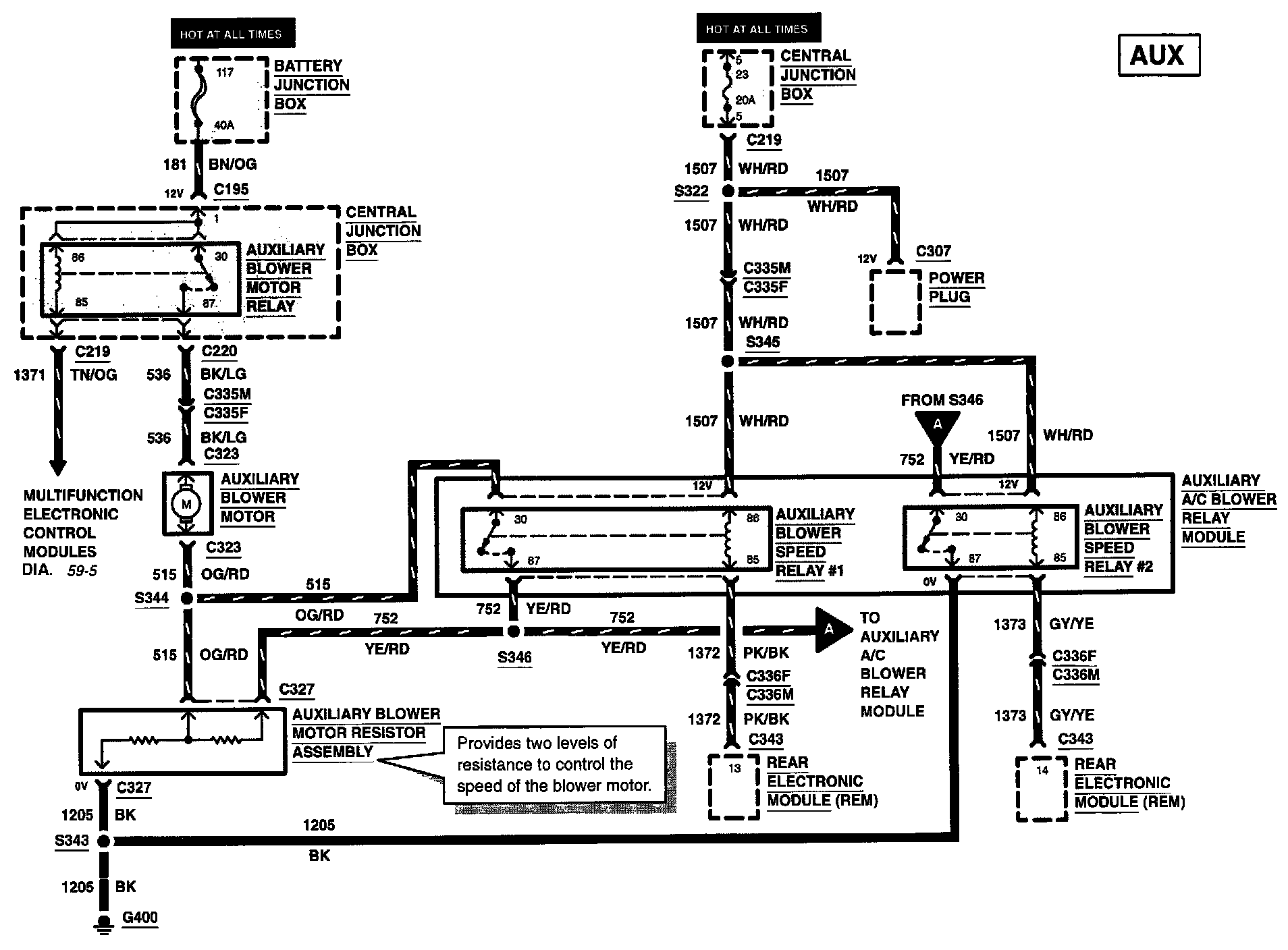

Diagram 54-4:

Auxiliary A/C Blower Relay Module
Auxiliary Blower Motor
Auxiliary Blower Motor Relay
Auxiliary Blower Motor Resistor Assembly
Auxiliary Blower Speed Relay #1
Auxiliary Blower Speed Relay #2
Battery Junction Box
Central Junction Box
Fuse 23
Fuse 117Power Plug
Rear Electronic Module

Diagram 54-5:

Auxiliary A/C Blend Door Actuator
Auxiliary A/C Mode Door Actuator
Rear Auxiliary A/C Control
Rear Electronic Module
