Floor Duct

REMOVAL
1. Remove the floor console. For additional information, refer to Dash Board.







2. Remove the rear seat connecting duct.
1 Remove the pin.
2 Remove the duct.

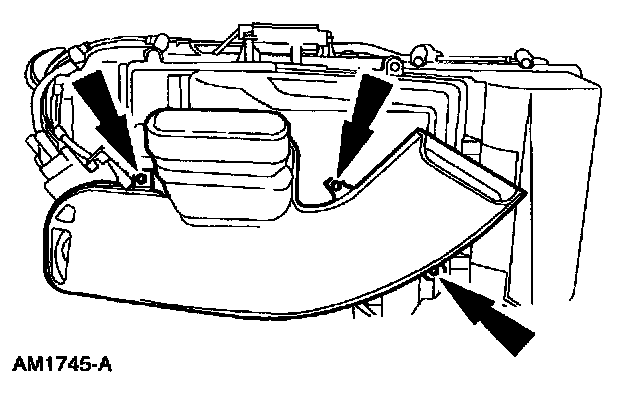

3. Remove the floor duct screws.
4. Remove the floor duct.

INSTALLATION
1. To install, reverse the removal procedure.
