RH

Removal
1. Remove the dual converter Y-pipe.





2. Remove the RH exhaust manifold.

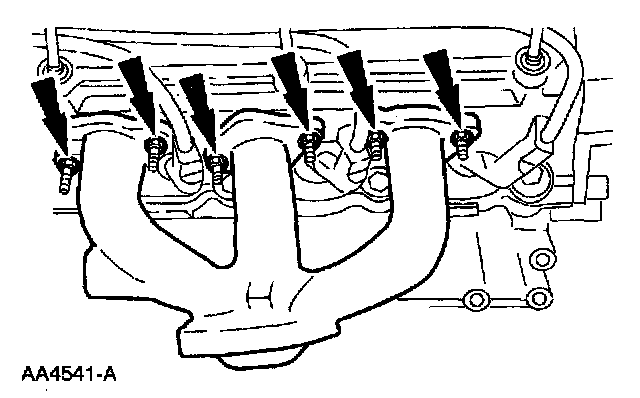

^ Remove the nuts.

Installation

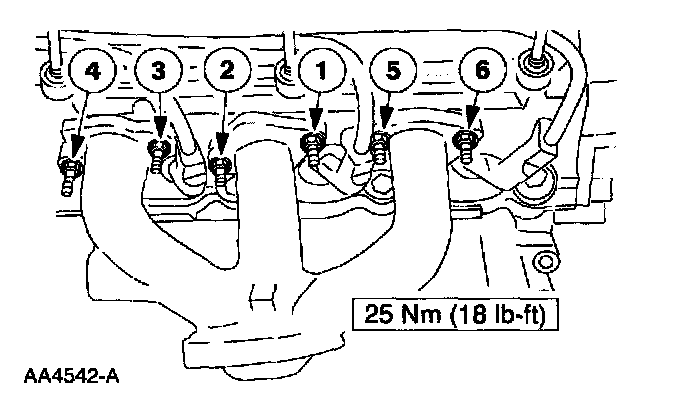

1. Note: Tighten in the sequence shown.

To install, reverse the removal procedure.
