LH

Removal
1. Remove the three-way catalytic converter.
2. Remove the oil level indicator tube.

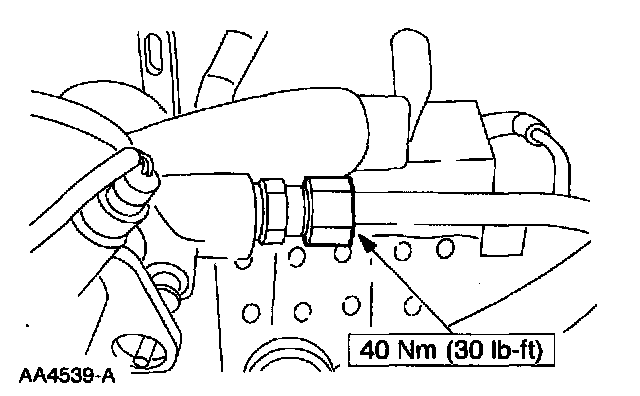

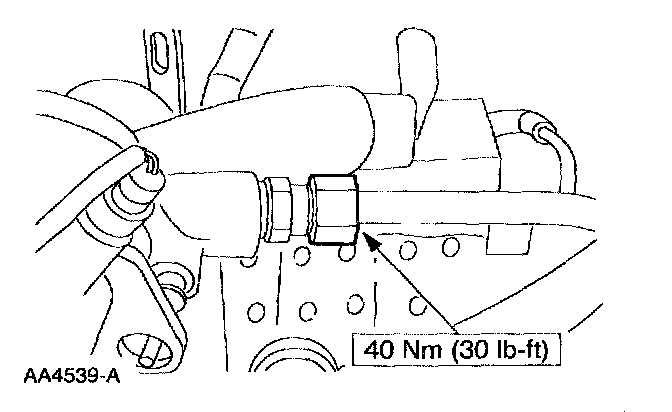

3. Disconnect the EGR tube.
^ Loosen the nut.
^ Separate the tube.

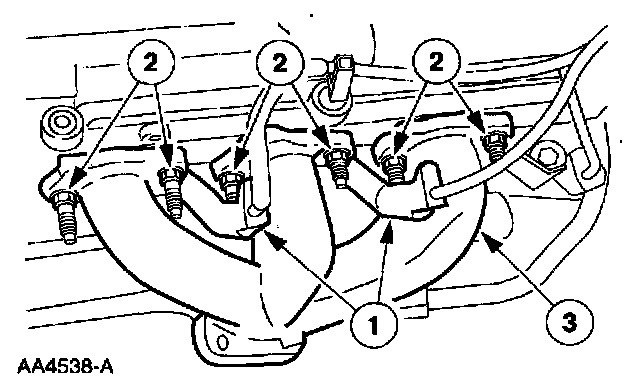

4. Remove the exhaust manifold.
1 Disconnect the spark plug wires.
2 Remove the nuts.
3 Remove the exhaust manifold.

Installation

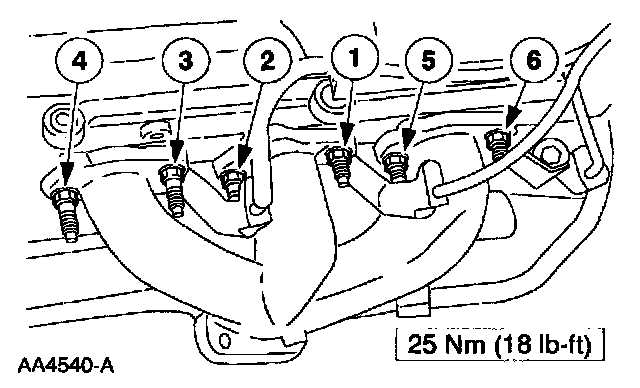

1. Note: Tighten in the sequence shown.

To install, reverse the removal procedure.
