Oil Pressure Sender: Service and Repair
Removal1. Remove the generator and bracket.

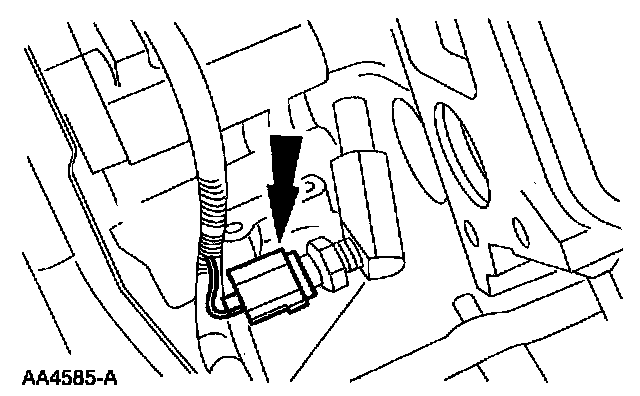

2. Disconnect the oil pressure sender electrical connector.

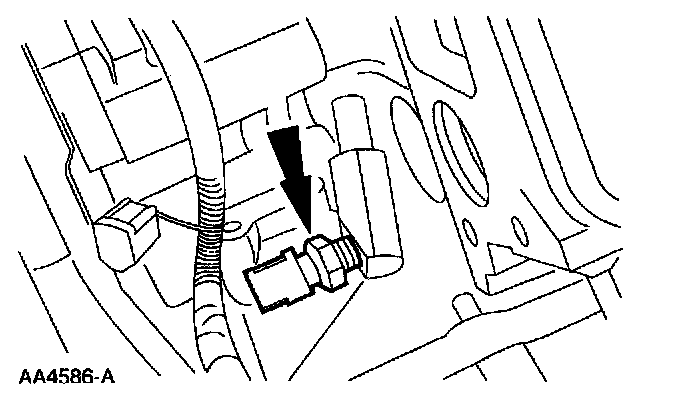

3. Remove the oil pressure sender.
Installation

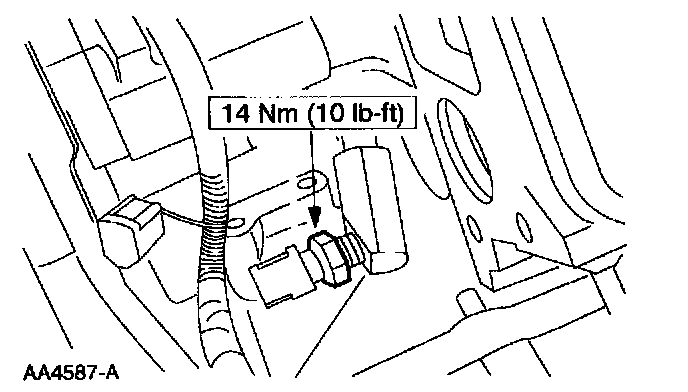

1. To install, reverse the removal procedure.
1. Remove the generator and bracket.
2. Disconnect the oil pressure sender electrical connector.
3. Remove the oil pressure sender.
Installation
1. To install, reverse the removal procedure.
