Oil Pan, Engine

Removal
1. Remove the starter motor.





2. Remove the drain plug and drain the engine oil.





3. Remove the inspection cover.

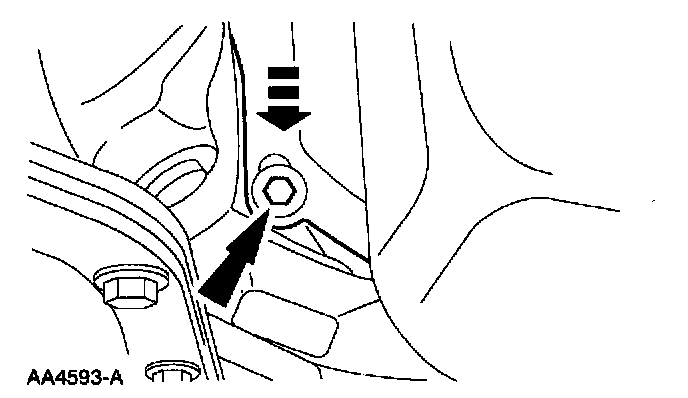

- Remove the bolt.





4. Remove the oil pan.

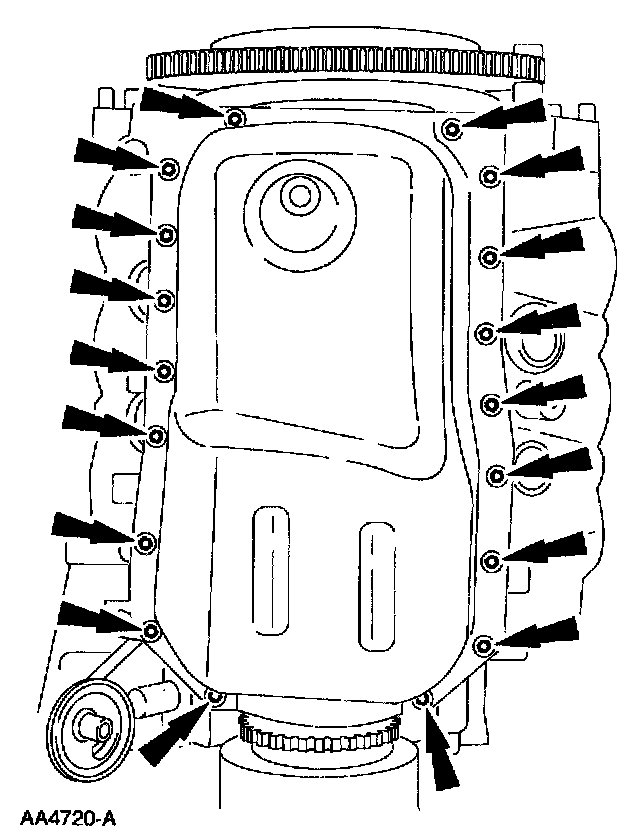

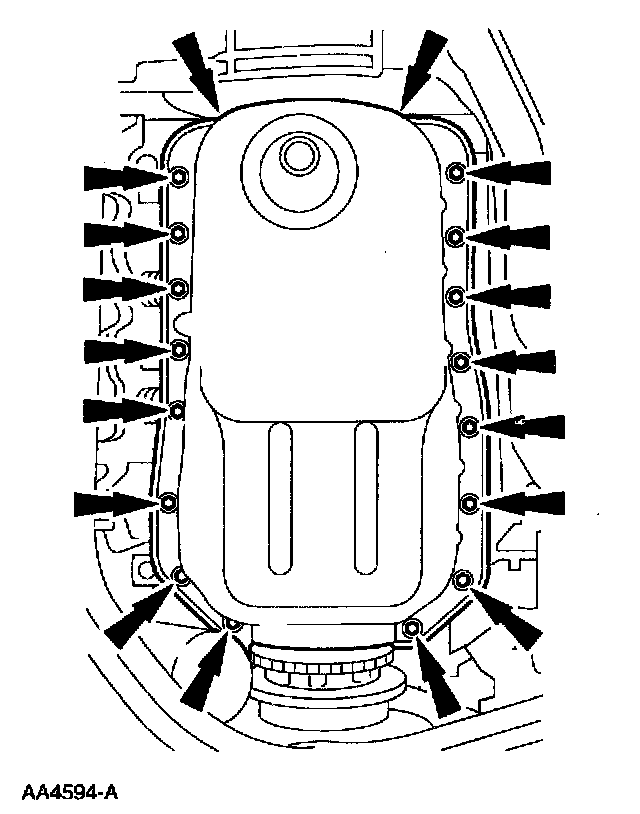

- Remove the bolts.

Installation





1. Note: If the oil pan is not installed within 15 minutes, remove the sealer and reapply.

Clean and apply sealant to the oil pan sealing areas indicated and install the oil pan rear seal.

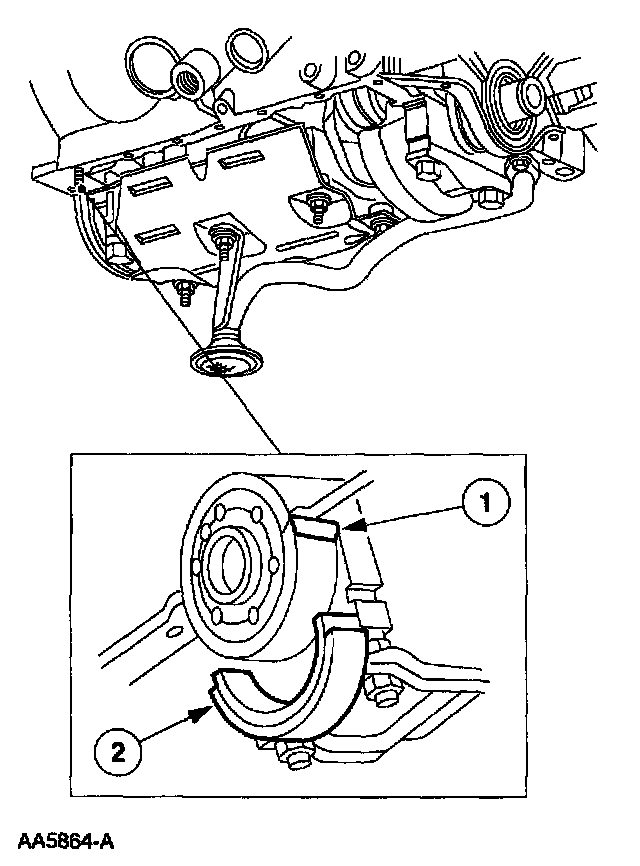

1 Apply sealer to the rear main bearing cap.
2 Install the seal.
- Apply sealer to the oil pan mating surface.
- Use Metal Surface Cleaner F4AZ-19A536-RA or equivalent meeting Ford specification WSE-M513392-A.
- Use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.





2. Position the oil pan and start the bolts.

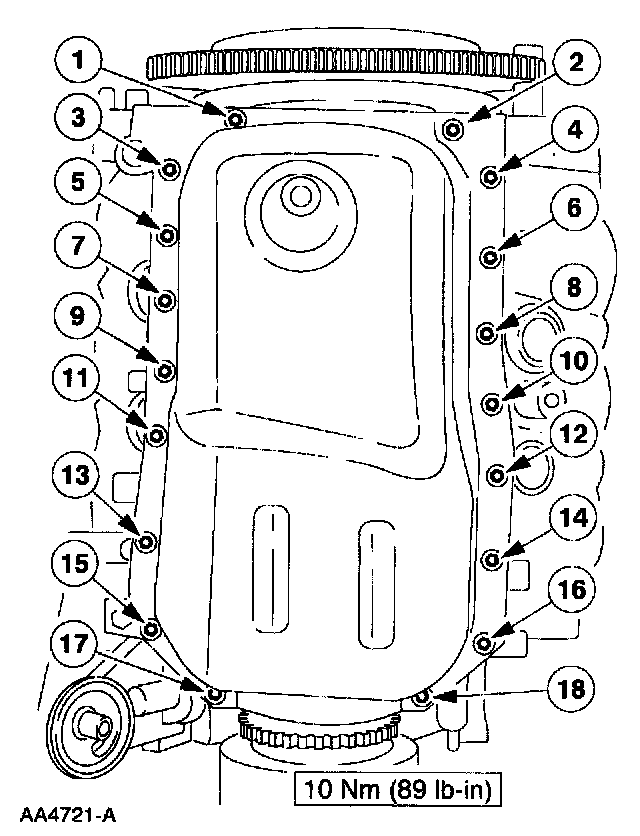

3. Tighten the bolts in the sequence indicated.





4. Install the inspection cover.

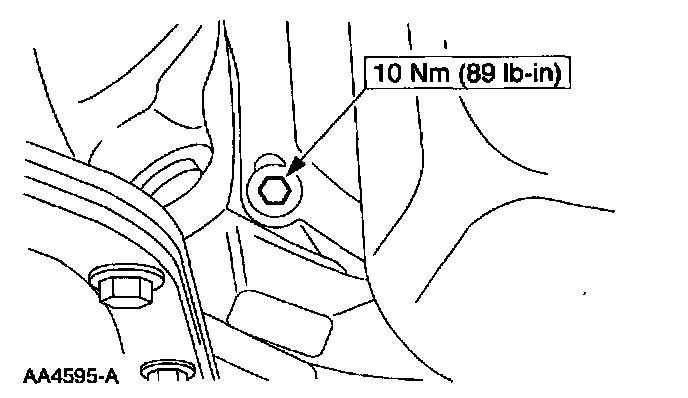

- Install the bolt.





5. Install the drain plug.
6. Install the starter motor.
7. Fill the engine with Super Premium SAE 5W-30 Motor Oil XO-5W30-QSP or equivalent meeting Ford specification WSS-M2C153-G.
