LH

Removal

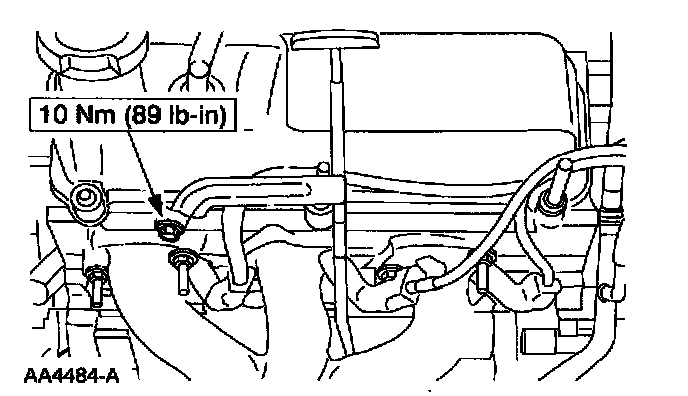

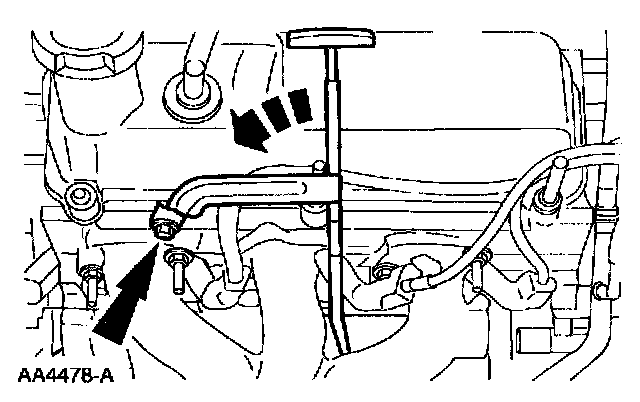

1. Position the oil dip stick tube and bracket aside.
- Remove the bolt.

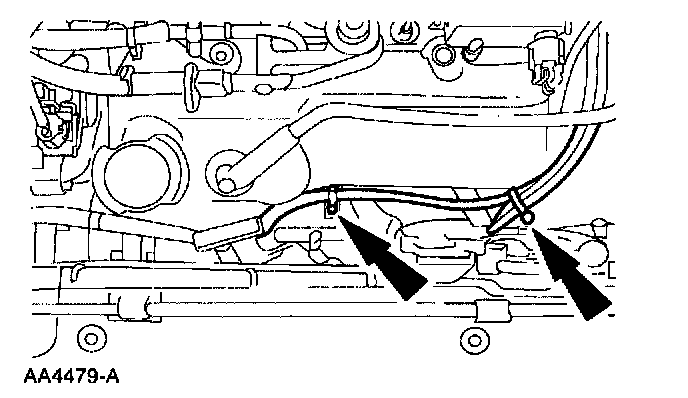

2. Position the spark plug wires aside.
- Remove the retainers.

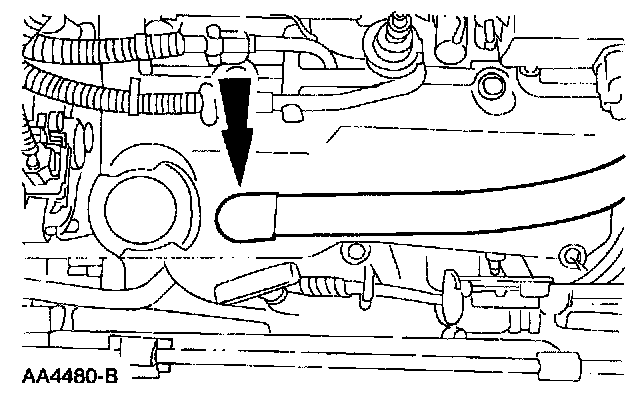

3. Disconnect the Positive Crankcase Ventilation (PCV) valve.





4. Note: Do not discard the gasket. It may be reused if it is not damaged.

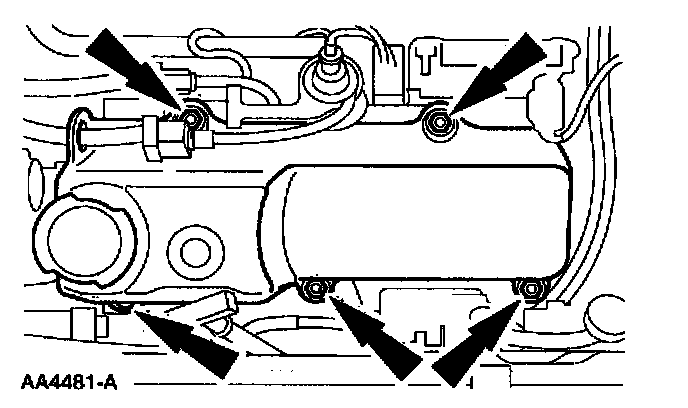

- Remove the valve cover.

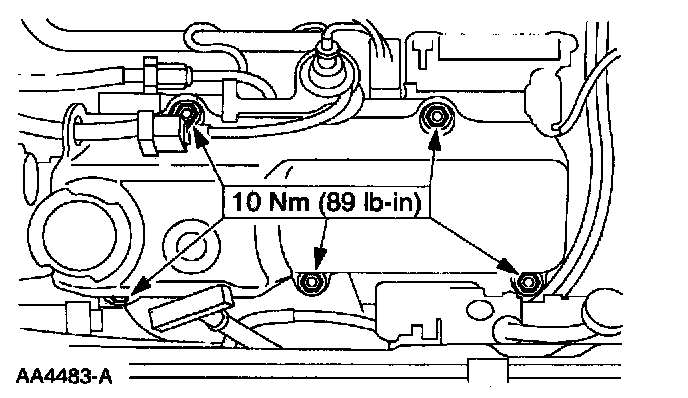

- Remove the bolts.

Installation








1. To install, reverse the removal procedure.
- Install a new valve cover gasket as necessary.
