Thermostat: Service and Repair

Removal
1. Drain the engine cooling system.
2. Remove the air cleaner outlet tube.

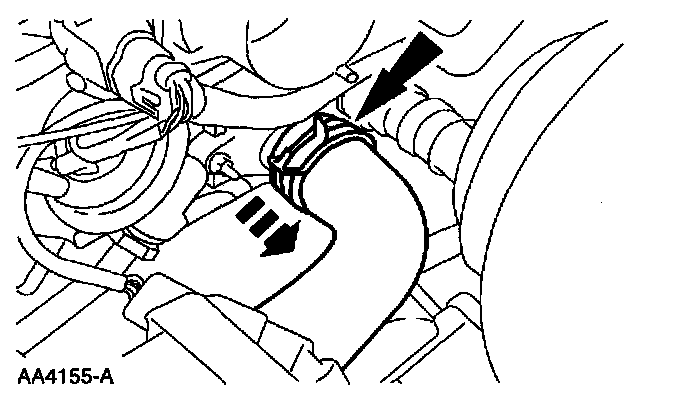

3. Remove the upper radiator hose from the water hose connector.





4. Note: Mark the location of the vent pin before removing the thermostat.

Remove the bolt, nut, water hose connector and thermostat, and discard the gasket.

Installation





1. To install, reverse the removal procedure.
2. Fill the cooling system.
