Flushing Engine and Radiator

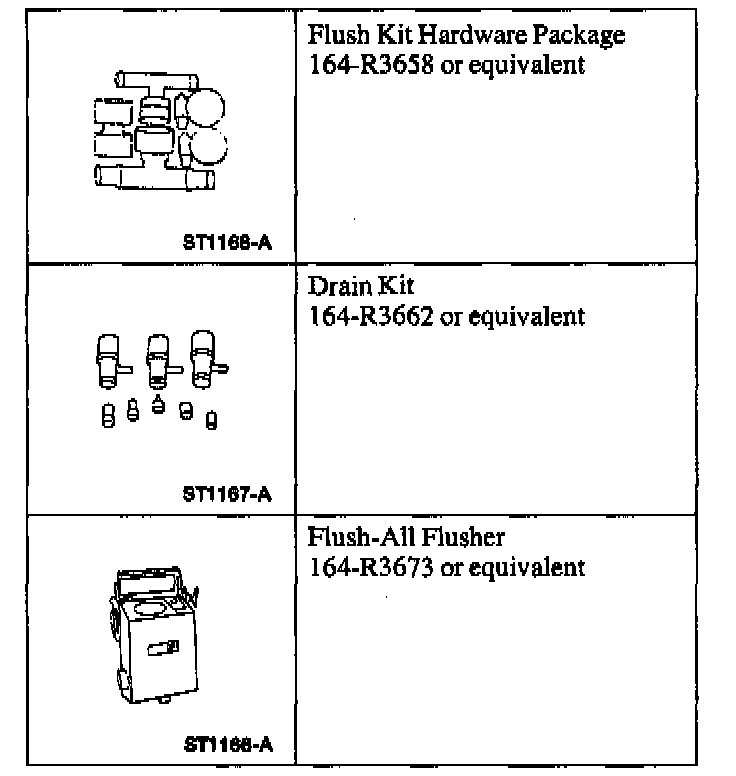

Special Tools:

1. Drain the cooling system.
2. Remove the water thermostat.
3. Install the water hose connection without the water thermostat.

4. Note: Refer to the cooling system Flush-All Flusher Operating Instructions for specific vehicle hook-up.

Use the special tools, flush the engine and radiator.
Use Ford Premium Cooling System Flush F1AZ-19A503-A meeting Ford specification ESR-M14P7-A for vehicles filled with Premium Engine Coolant E2FZ-19549-AA or equivalent meeting Ford specification ESE-M971344-A (green color).
5. Install the water thermostat.
6. Backflush the heater core if necessary.
7. Fill the cooling system.
