Home
>>
Ford Truck
>>
2000
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>

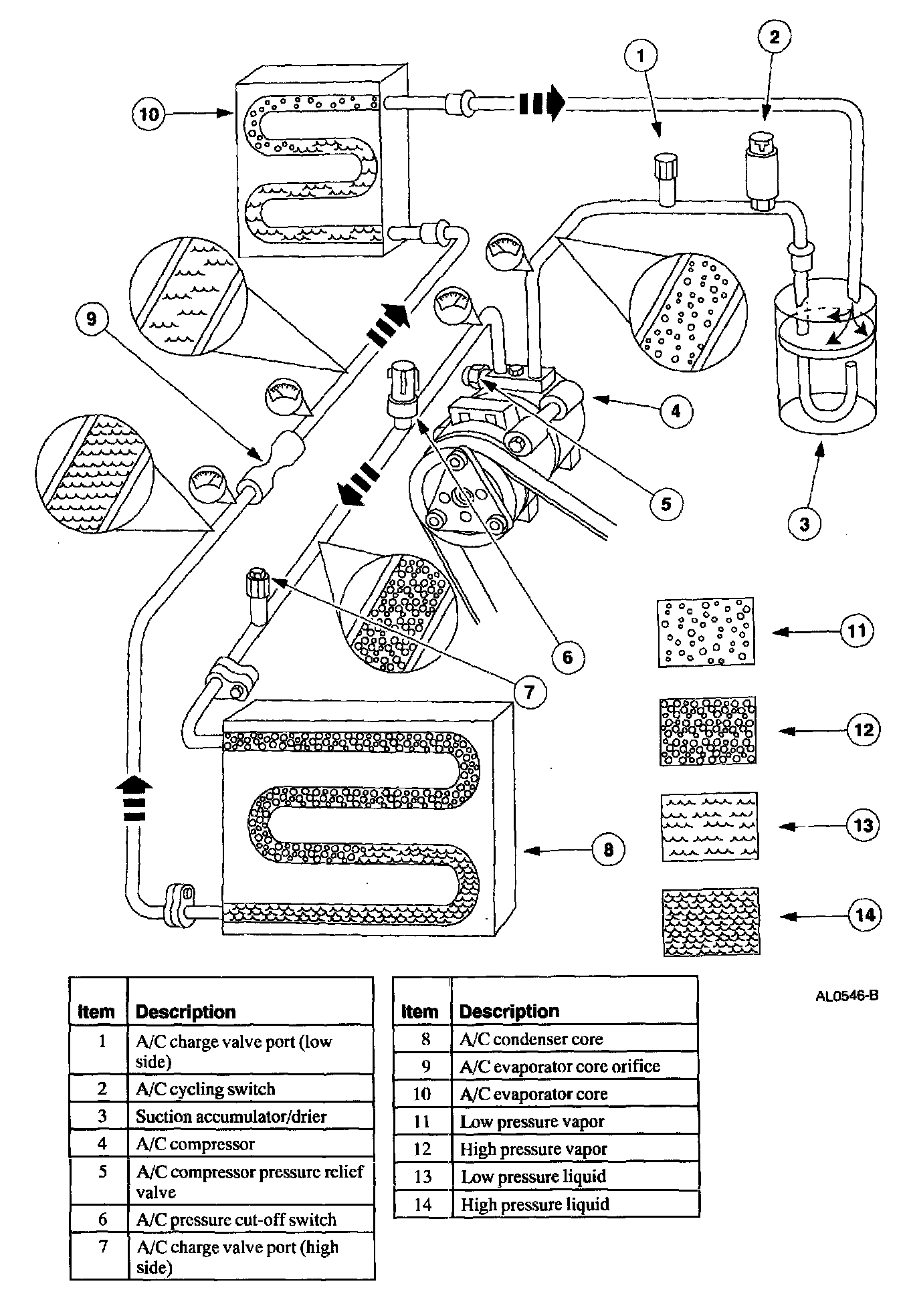

System Diagram
System Diagram
Spring Lock Coupling:
Service Gauge Port Values:
