Trailer Connector

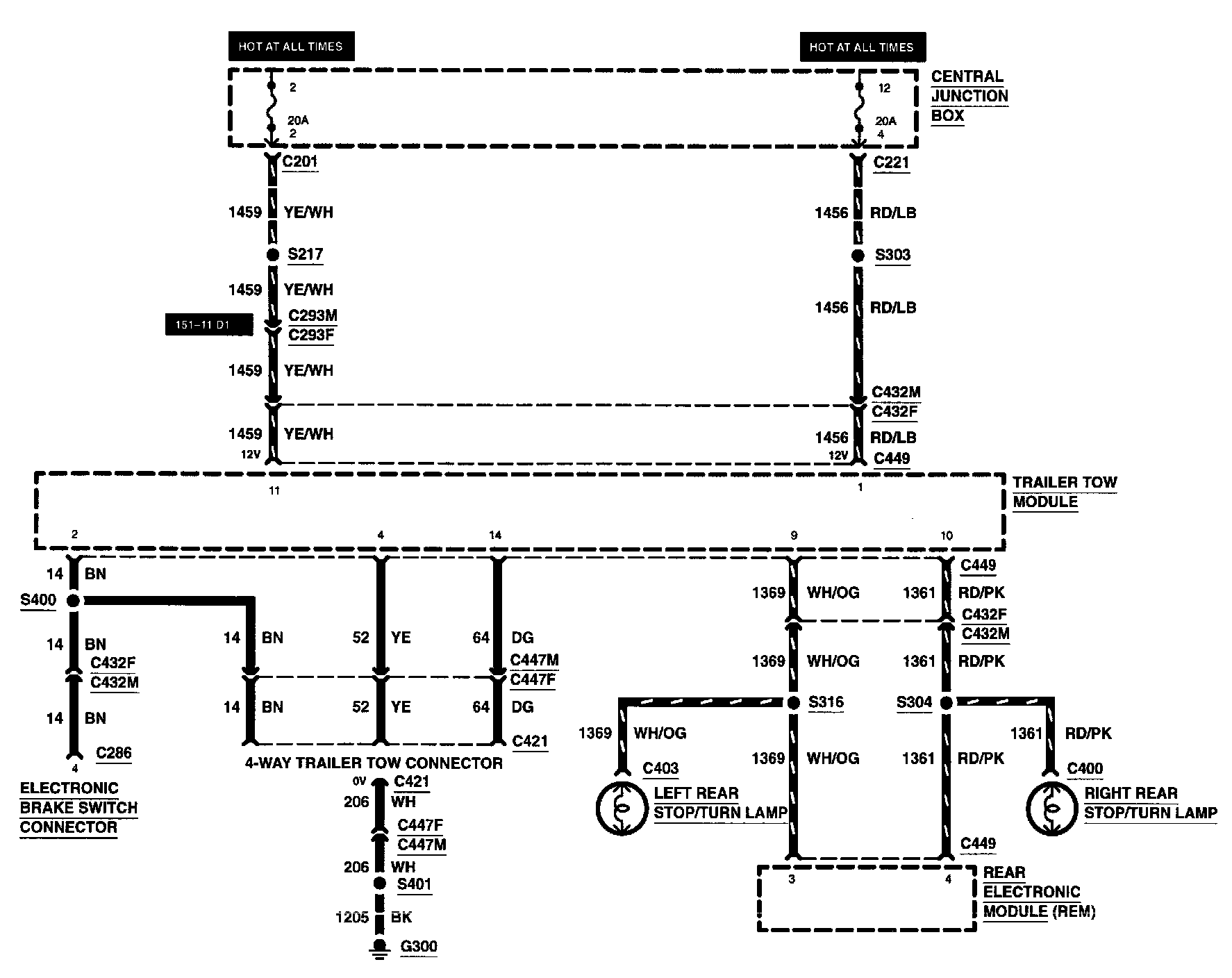

Diagram 95-1:

4-Way Trailer Tow Connector
Central Junction Box
Electronic Brake Switch Connector
Fuse 2
Fuse 12
Left Rear Stop/Turn Lamp
Rear Electronic Module
Right Rear Stop/Turn Lamp
Trailer Tow Module

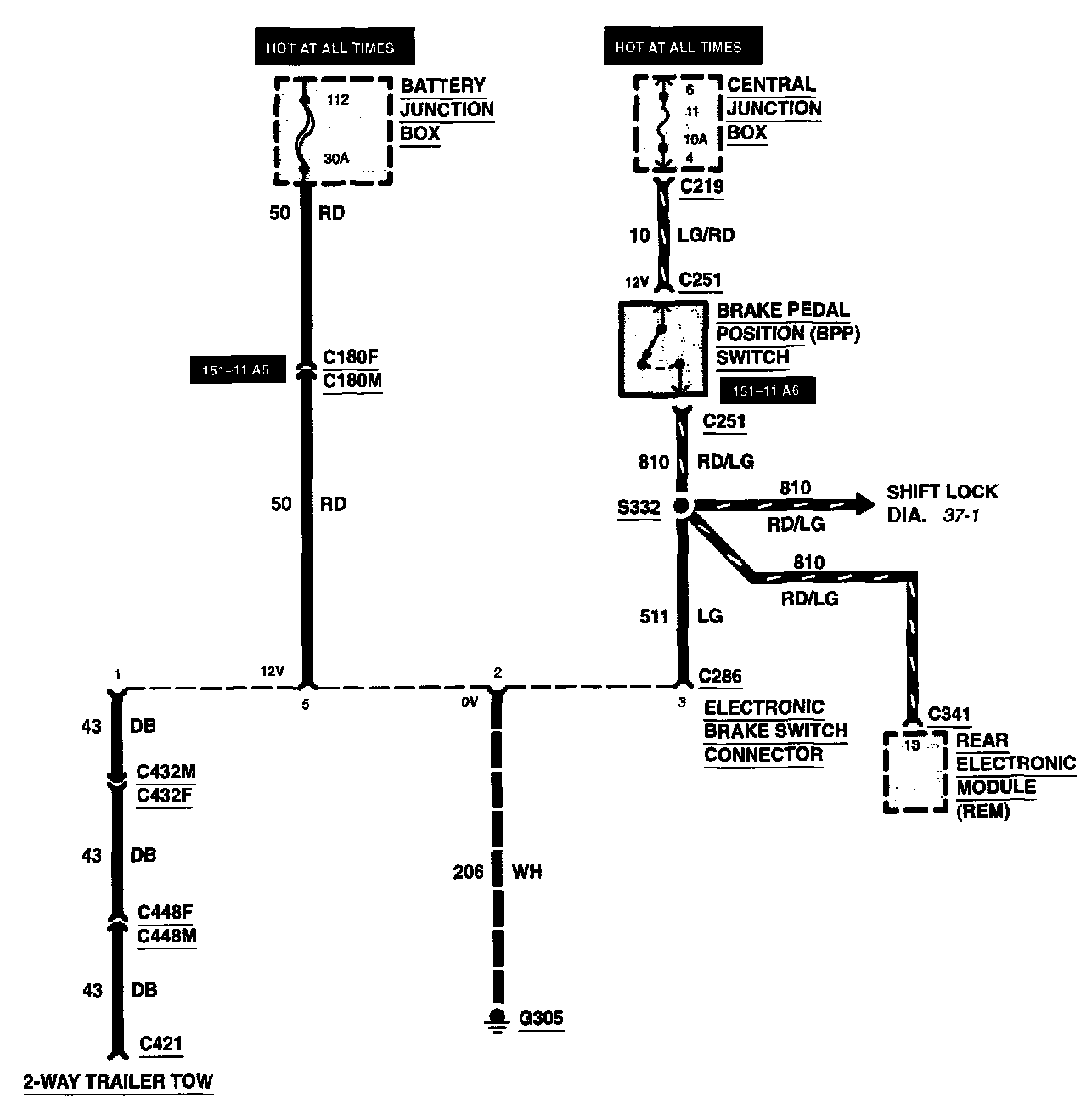

Diagram 95-2:

2-Way Trailer Tow Relay
Battery Junction Box
Brake Pedal Position Switch
Central Junction Box
Electronic Brake Switch Connector
Fuse 11
Fuse 112
Rear Electronic Module

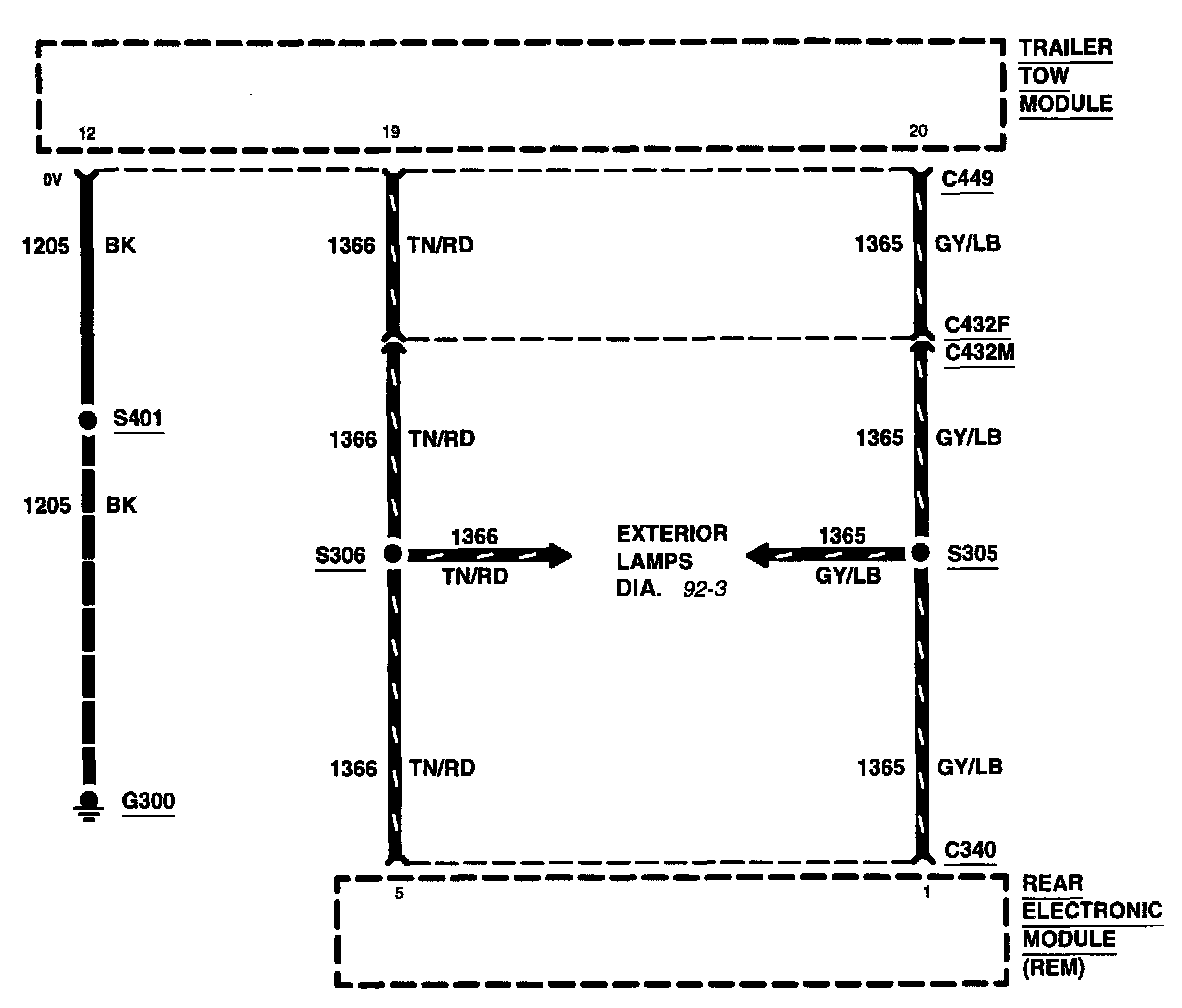

Diagram 95-3:

Rear Electronic Module
Trailer Tow Module
