Sliding Door

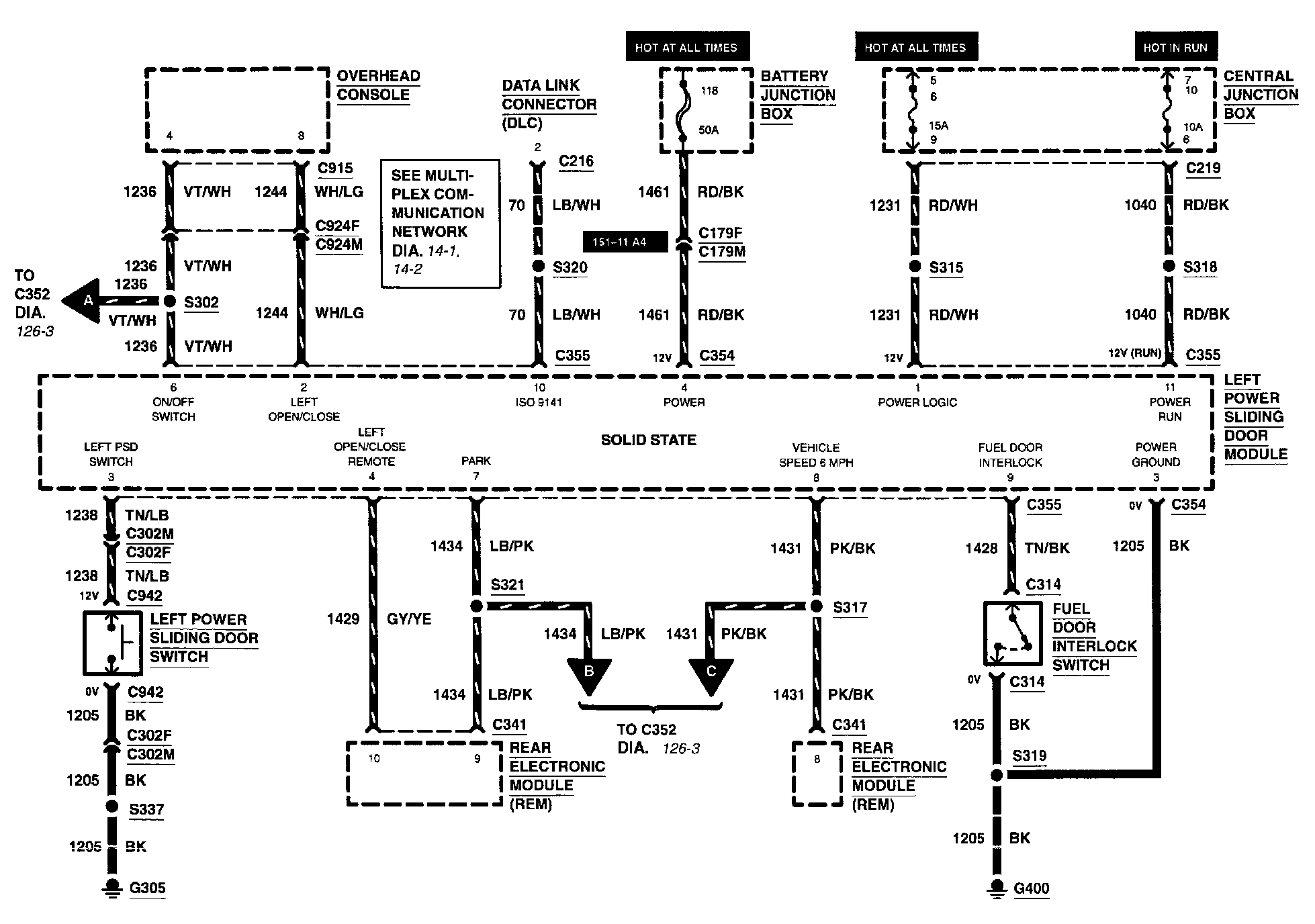

Diagram 126-1:

Battery Junction Box
Central Junction Box
Data Link Connector
Fuel Door Interlock
Fuel Door Interlock Switch
Fuse 6
Fuse 10
Fuse 118
Left Power Sliding Door Module
Left Power Sliding Door Switch
Overhead Console
Rear Electronic Module

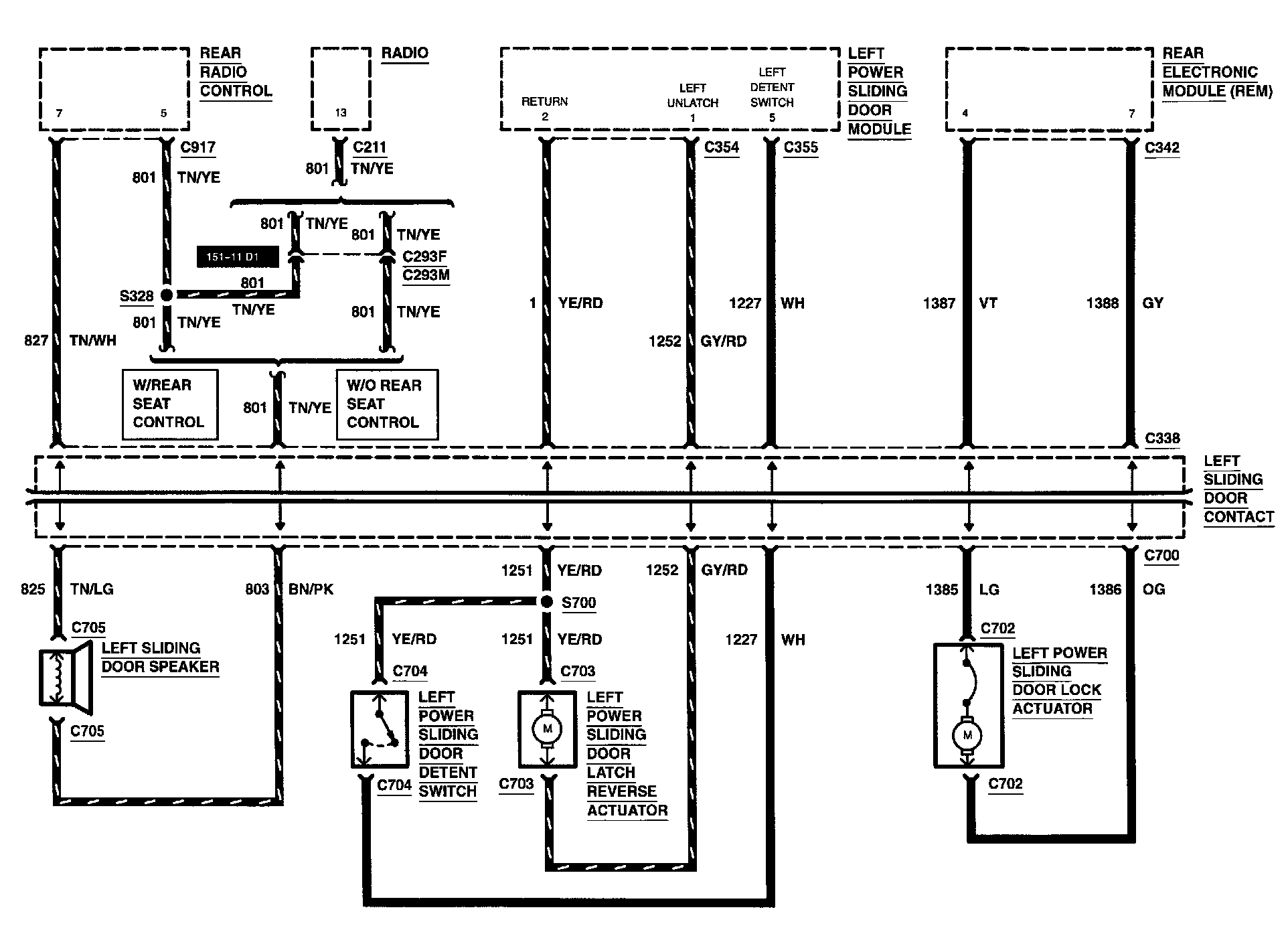

Diagram 126-2:

Left Detent Switch
Left Power Sliding Door Detent Switch
Left Power Sliding Door Latch Reverse Actuator
Left Power Sliding Door Lock Actuator
Left Power Sliding Door Module
Left Sliding Door Contact
Left Sliding Door Speaker
Radio
Rear Electronic Module
Rear Radio Control

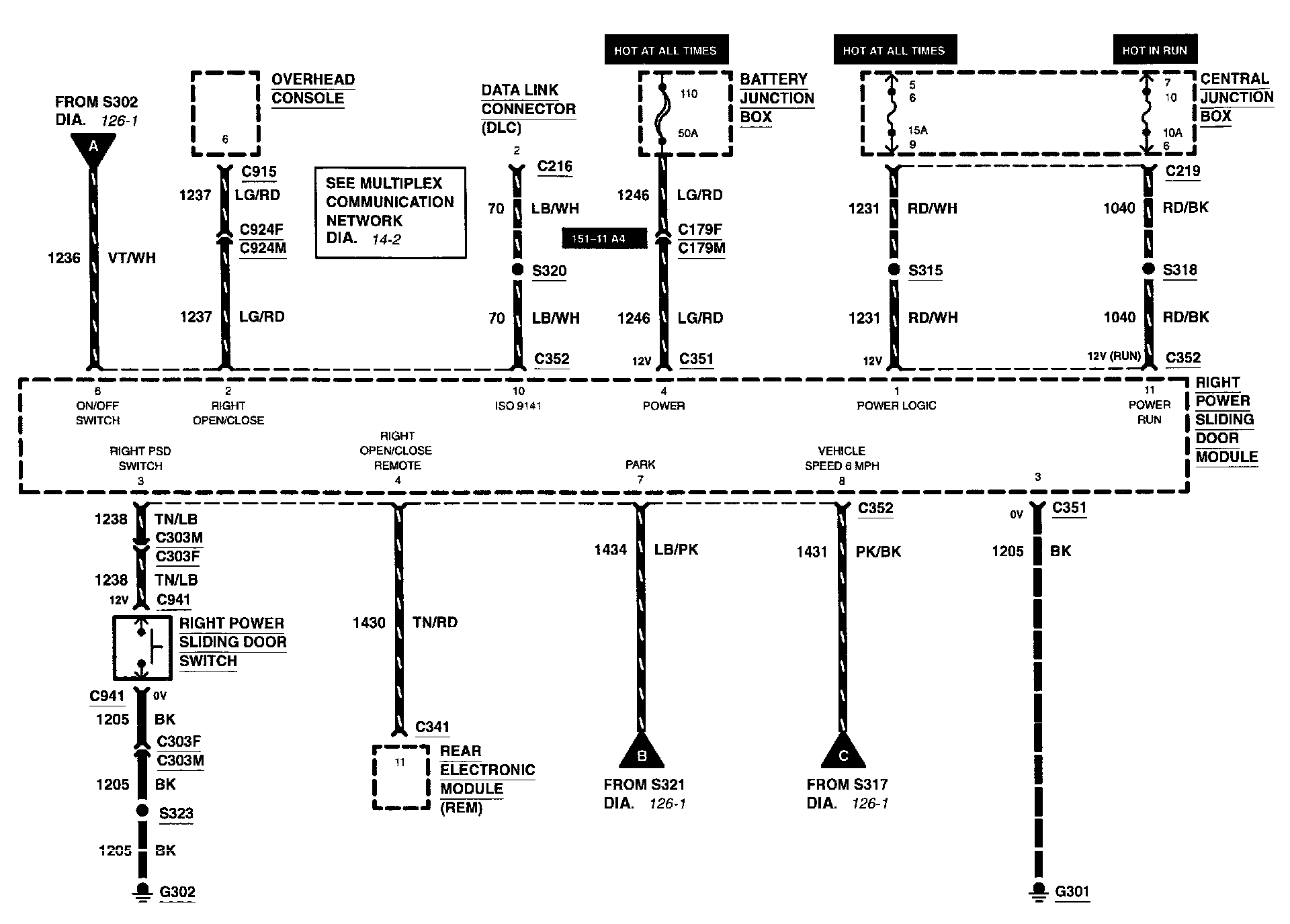

Diagram 126-3:

Battery Junction Box
Central Junction Box
Data Link Connector
Fuse 6
Fuse 10
Fuse 110
Overhead Console
Rear Electronic Module
Right Open/Close Remote
Right Power Sliding Door Module
Right Power Sliding Door Switch

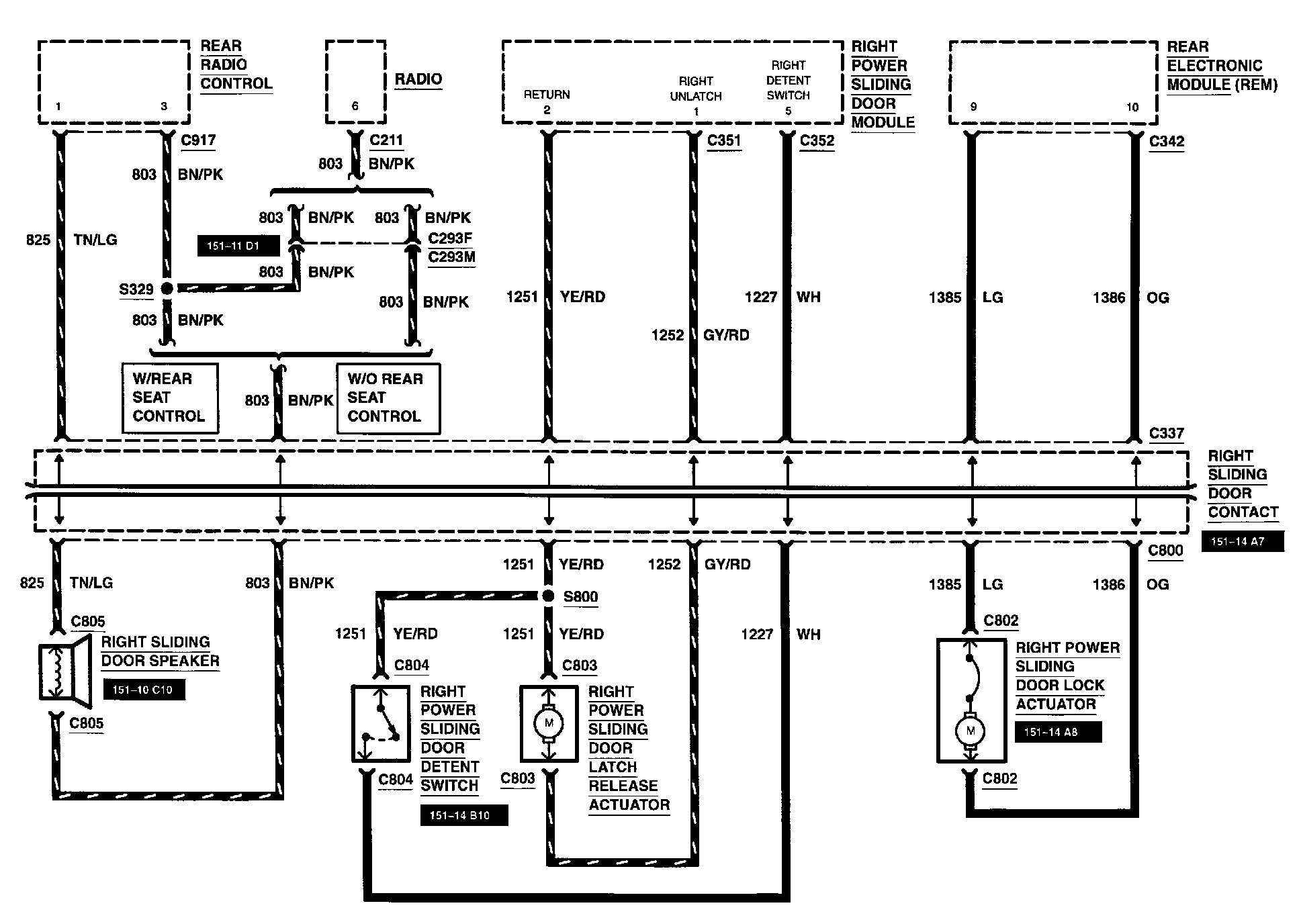

Diagram 126-4:

Radio
Rear Electronic Module
Rear Radio Control
Right Detent Switch
Right Power Sliding Door Detent Switch
Right Power Sliding Door Latch Release Actuator
Right Power Sliding Door Lock Actuator
Right Power Sliding Door Module
Right Sliding Door Contact
Right Sliding Door Speaker

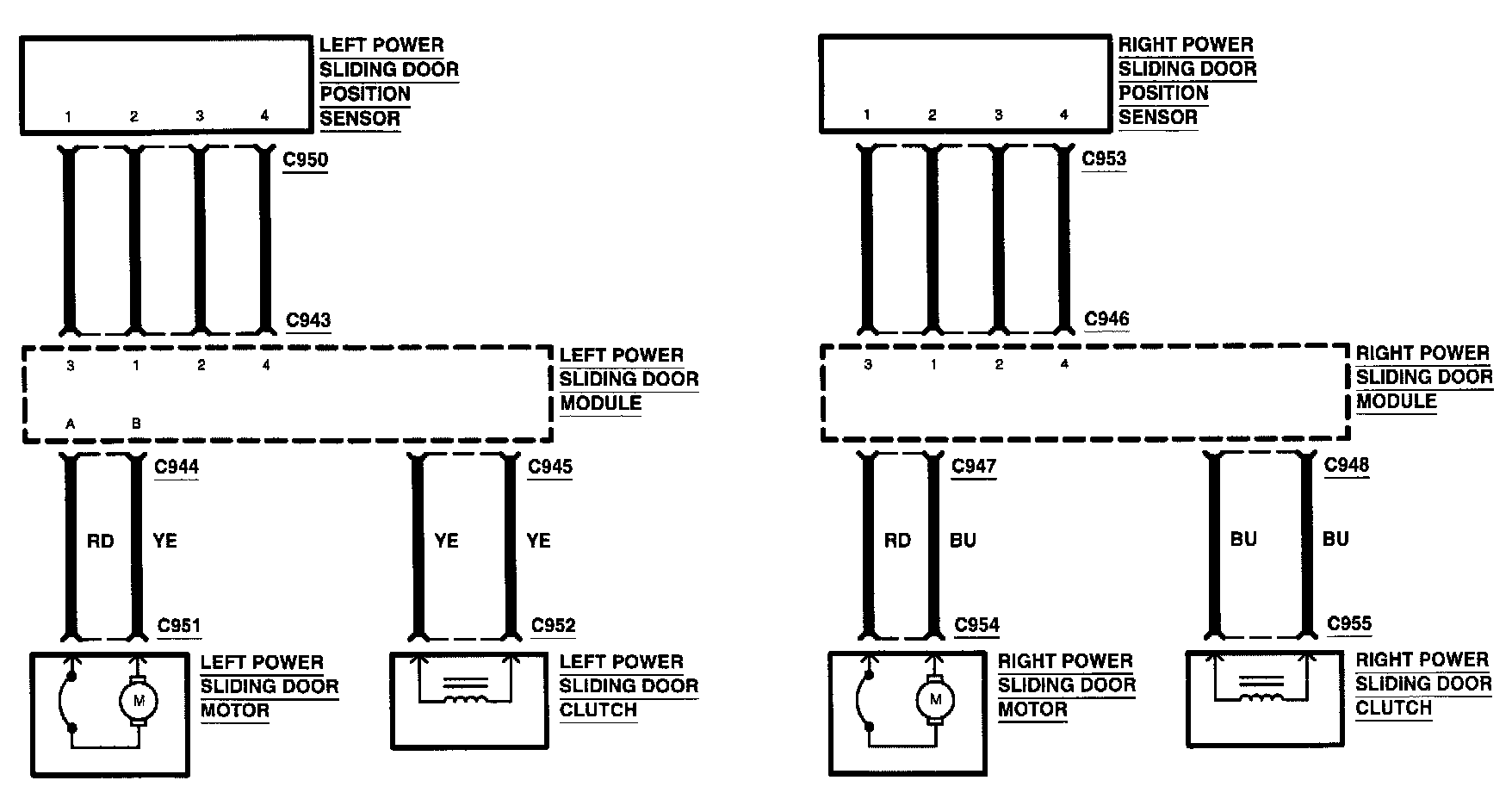

Diagram 126-5:

Left Power Sliding Door Clutch
Left Power Sliding Door Module
Left Power Sliding Door Motor
Left Power Sliding Door Position Sensor
Right Power Sliding Door Clutch
Right Power Sliding Door Module
Right Power Sliding Door Motor
Right Power Sliding Door Position Sensor
