Home
>>
Ford Truck
>>
2000
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
System Diagram
System Diagram

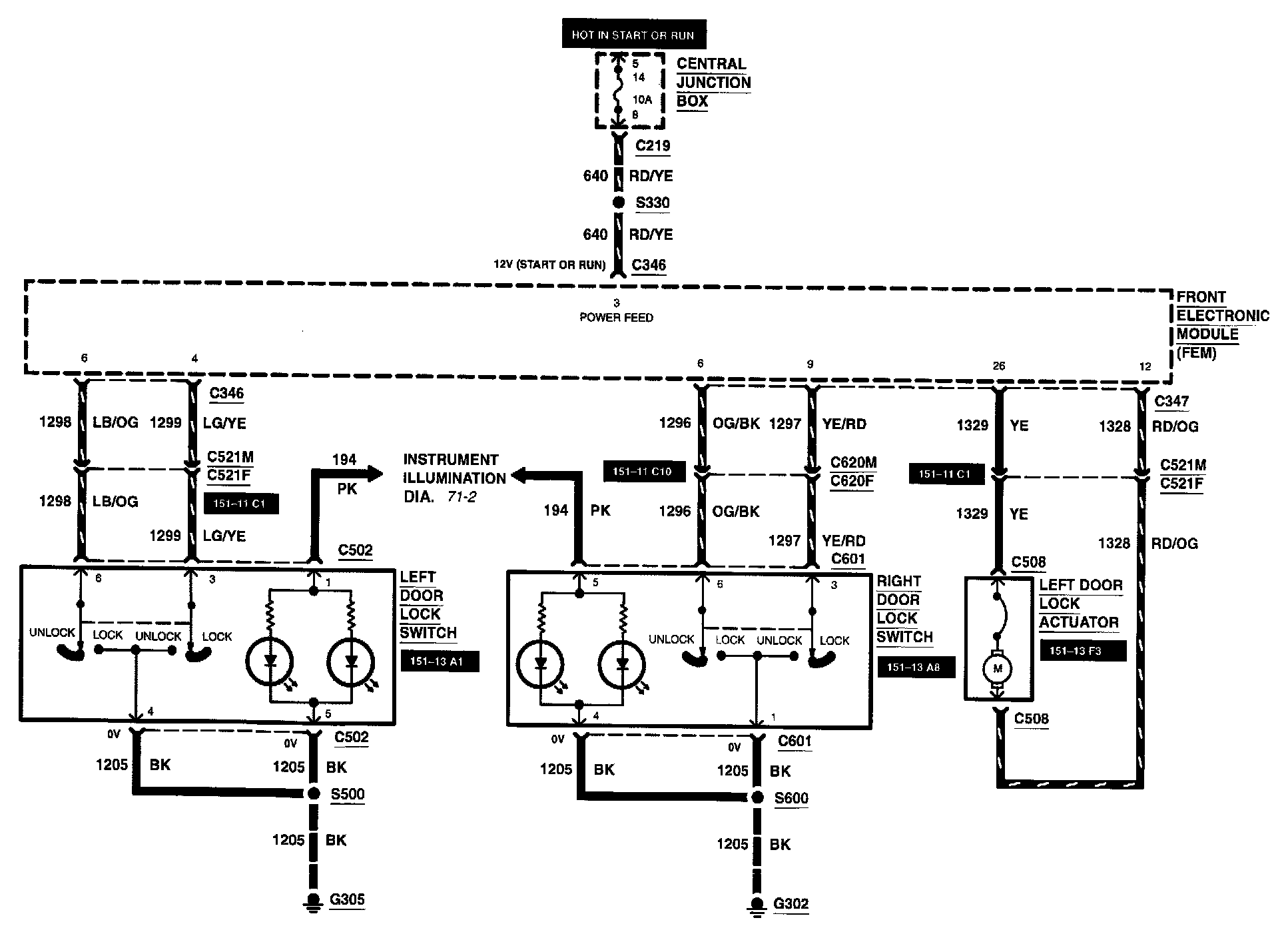

Diagram 110-1:
Diagram 110-2:
