Antilock Brakes / Traction Control Systems

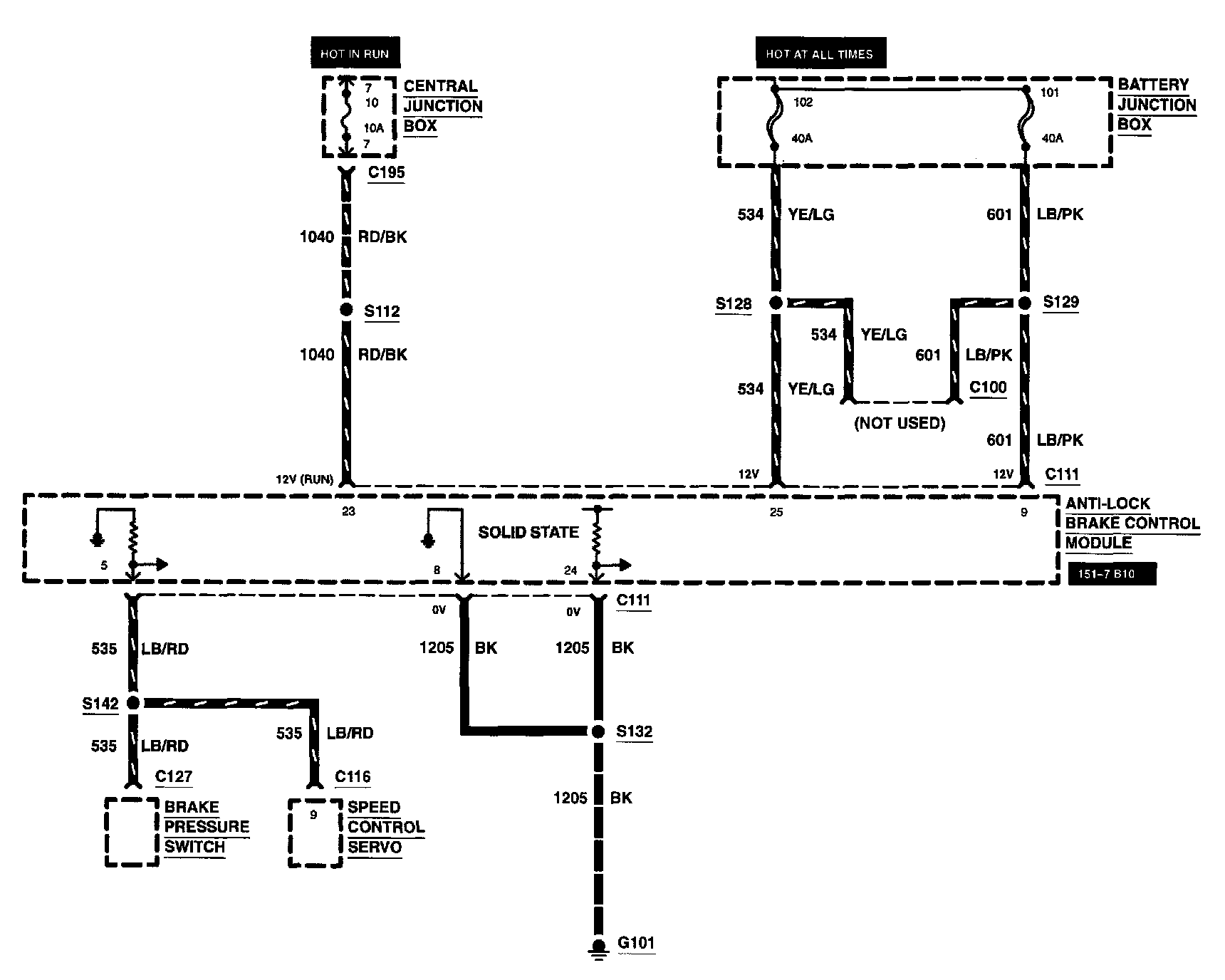

Diagram 42-1:

Anti-Lock Brake Control Module
Battery Junction Box
Brake Pressure Switch
Central Junction Box
Fuse 7
Fuse 101
Fuse 102
Speed Control Servo

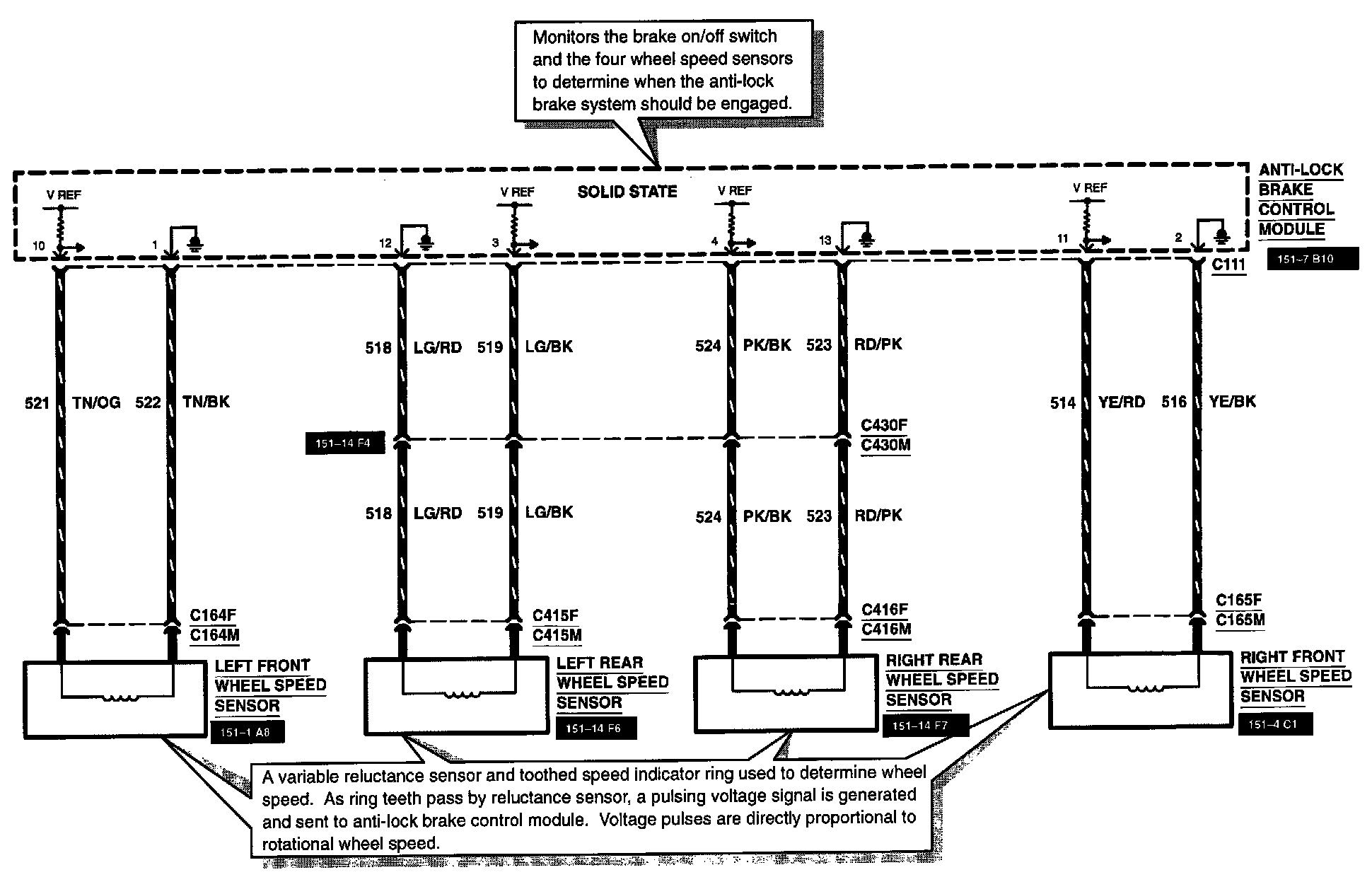

Diagram 42-2:

Anti-Lock Brake Control Module
Left Front Wheel Speed Sensor
Left Rear Wheel Speed Sensor
Right Front Wheel Speed Sensor
Right Rear Wheel Speed Sensor

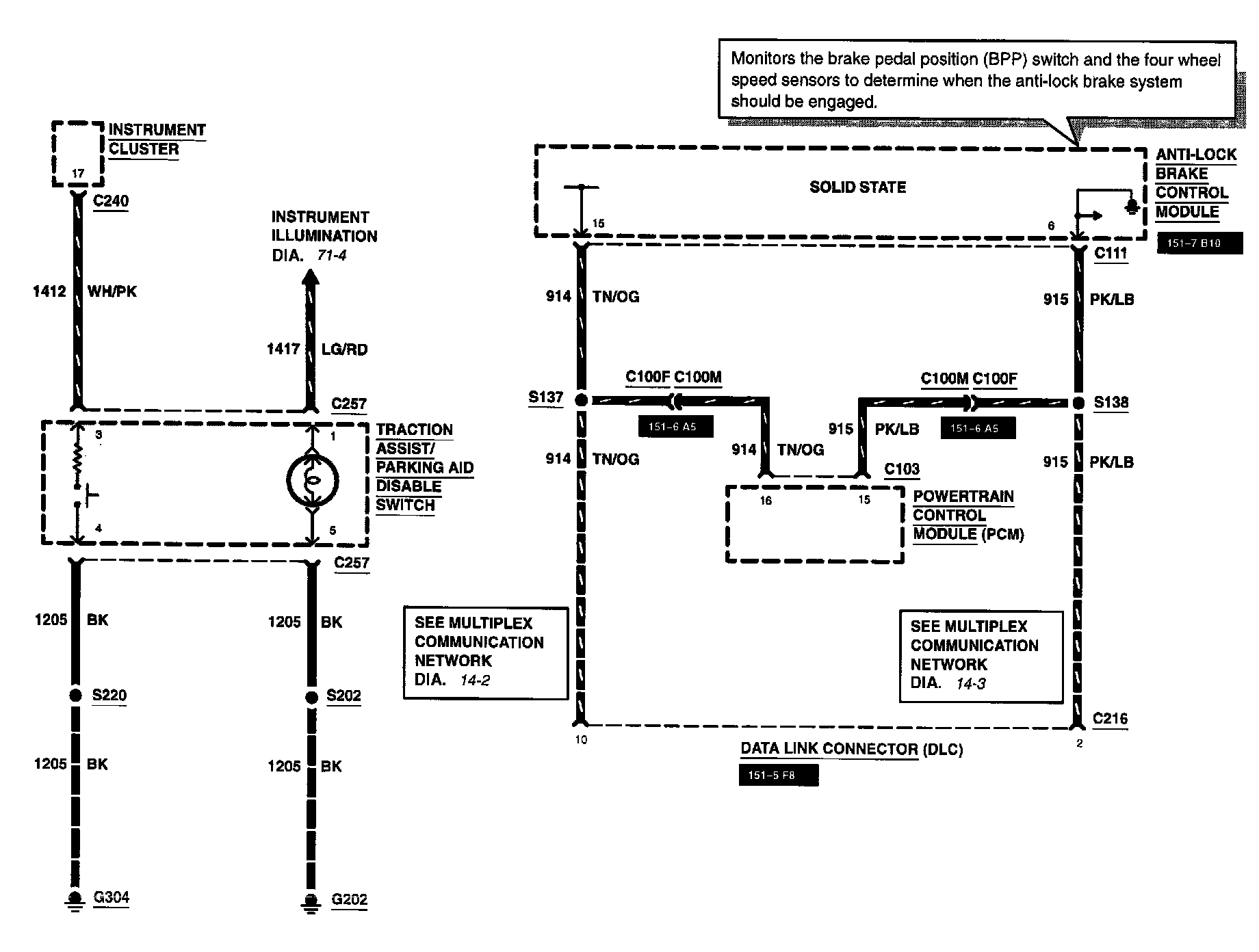

Diagram 42-3:

Anti-Lock Brake Control Module
Data Link Connector
Instrument Cluster
Powertrain Control Module
Traction Assist/parking Aid Disable Switch
