Removal and Installation

Removal

Note: 3.8 shown, 3.0 similar.

1. Disconnect the battery ground cable.
2. Remove the air cleaner assembly.

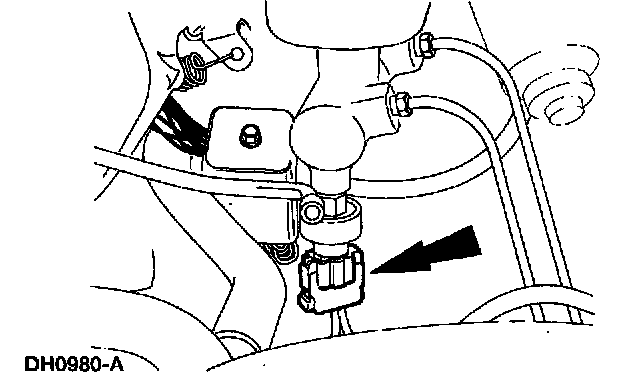

3. Disconnect the speed control switch connector.

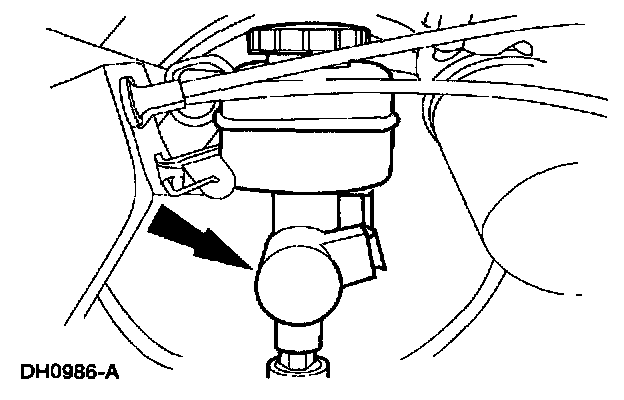

4. Disconnect the fluid level sensor connector.

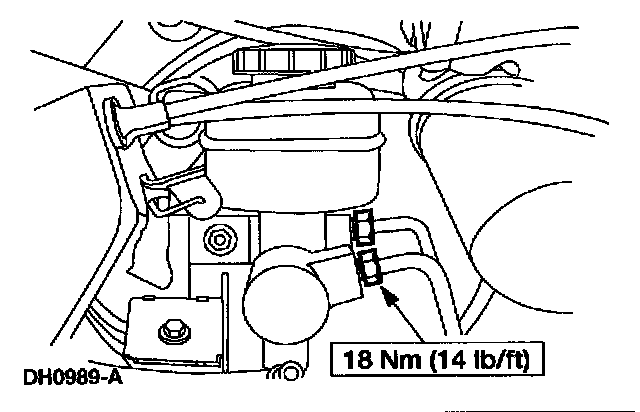

5. Disconnect the brake tubes.

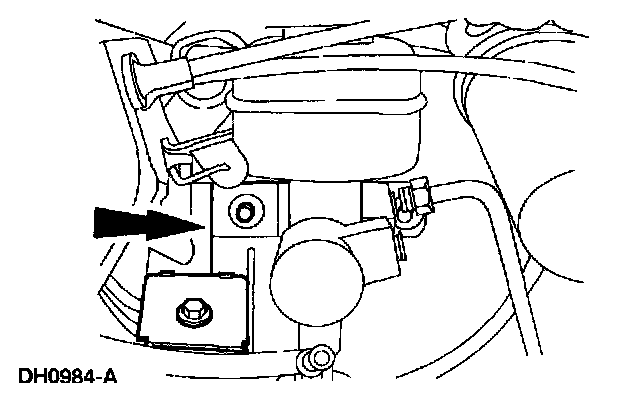

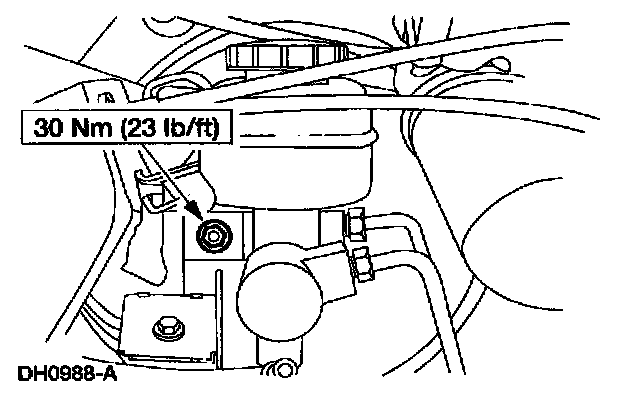

6. Remove the wiring bracket nut.





7. Position the wiring bucket aside.

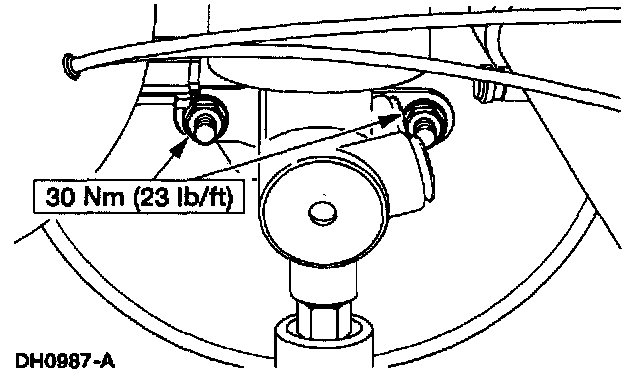

8. Remove the brake master cylinder nuts.





9. Remove the brake master cylinder.

Installation











1. Follow the removal procedure in reverse order.
- Bleed the brake system.
