Brake Caliper Anchor Plate

Removal
1. Remove the pads.

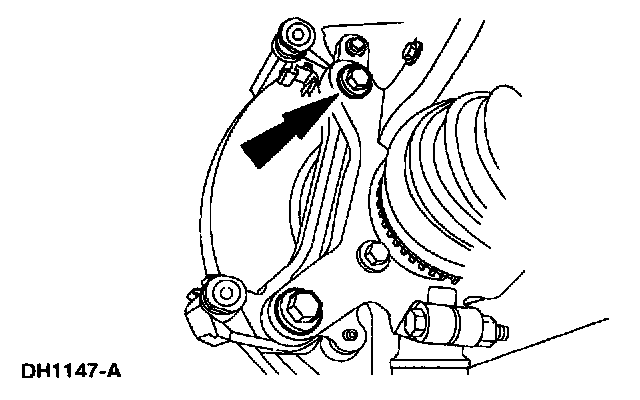

2. Remove and discard the two front disc brake caliper anchor plate bolts.

Installation





1. CAUTION: Use correct type and length bolts.

Follow the removal procedure in reverse order.

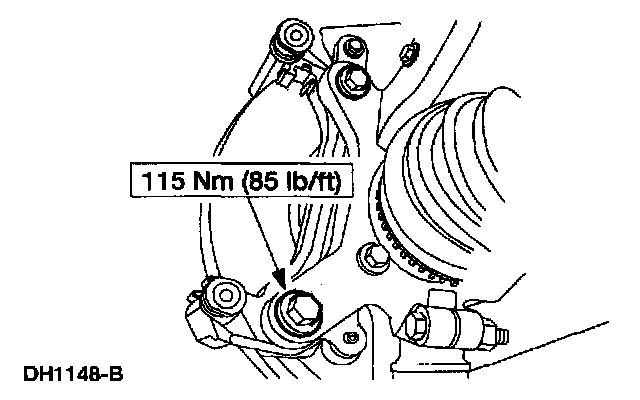

- Install new front disc brake caliper anchor plate bolts.
